High Speed Pressed Motor Core

High Speed Pressed Motor Core thumbnail-1
High Speed Pressed Motor Core thumbnail-2
High Speed Pressed Motor Core thumbnail-3
High Speed Pressed Motor Core thumbnail-4
High Speed Pressed Motor Core thumbnail-5
High Speed Pressed Motor Core thumbnail-6
High Speed Pressed Motor Core photo-1
High Speed Pressed Motor Core photo-2
High Speed Pressed Motor Core photo-3
High Speed Pressed Motor Core photo-4
High Speed Pressed Motor Core photo-5
High Speed Pressed Motor Core photo-6
US$ 1 - 15 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TG
Model Number:
PMC250
Contact Supplier Request Quote Chat Now
Tay Guei Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taichung Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name TG
Model Number PMC250
Type Rotor

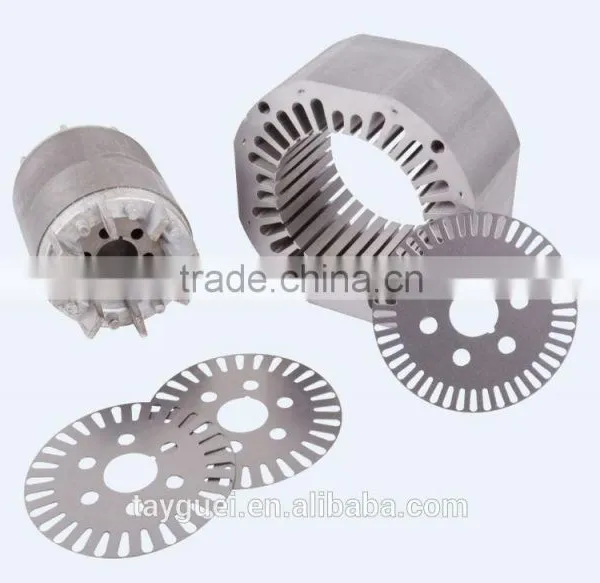

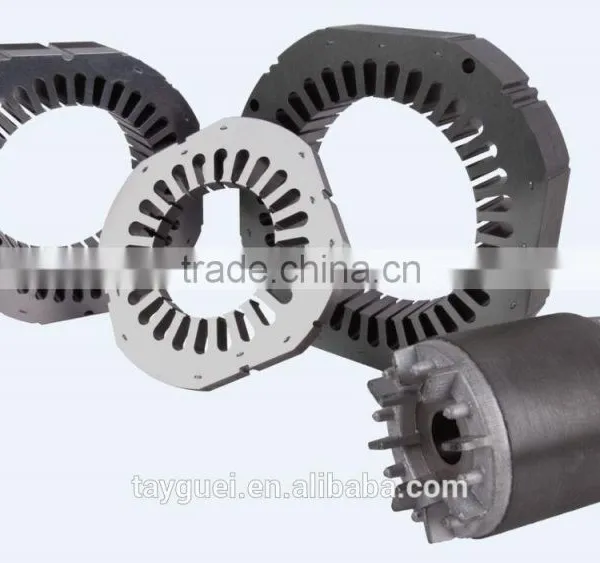

High speed pressed motor rotor stator core
Product Description



A. Use interlock technology.



B. Made in Taiwan



C. Customize any dimension



D. All steel are from Chine Steel







AC Stator & Rotor





Stator(mm) Slot Rotor(mm) Slot width shaft hole
190 36T 140 44T/28T 184W 32,35,38,42
180 36T 110 44T/28T 168W 22,25,30,38
160 36T 100 44T 157W 20,25,27,32
160 36T 96 44T 149W 20,22,25,27
160 36T 95 44T/28T 158W 20,22,25,27,31.85
160 32T 95 44T 145W 20,25,31.85
160 24T 88 18T 159W 20,25,27,28,32
160 24T 80 16T/34T 149W 15,17,20,22,25
140 36T 85 44T/28T 135W 20,22
140 36T 85 44T 130W 15.7,15,17,20,22,30
140 32T 85 44T 130W 17,20,22
140 36T 80 44T 135W 15,17,20,22,30
140 24T 70 34T 130W 20,22,25,27
125 36T 75 44T 123W 16,18,20,22
125 32T 75 44T 120W 18,20
121.7 4T 67.3 44T 124W 12.7
114 24T 56 28T 114W 12,17,20
114 24T 55 29T 112.5W
111 24T 67 44T 104W 10,12,12.7,16
110 36T 70 44T 107W 14,16,18
110 24T 65 34T 100W 10,12,14,16
108 24T 70 34T 108W 12,12.7
100 24T 53 22T 95W 8,10,12,15
90 18T 48 23T 89.5W 11.5,12.7
90 18T 48 23T 82W 8,10
90 24T 47 18T 88W 8.03 , 11.6, 12, 14,16
82 16T 44/46 22T 75W 8,10
75 16T 44/46 22T 75W 8,10
66.4 16T 46 22T 75W 8,10








Packaging & Shipping



Paper box or wooden box

 shipping by vessel
Company Information (Picture has a link to company information)

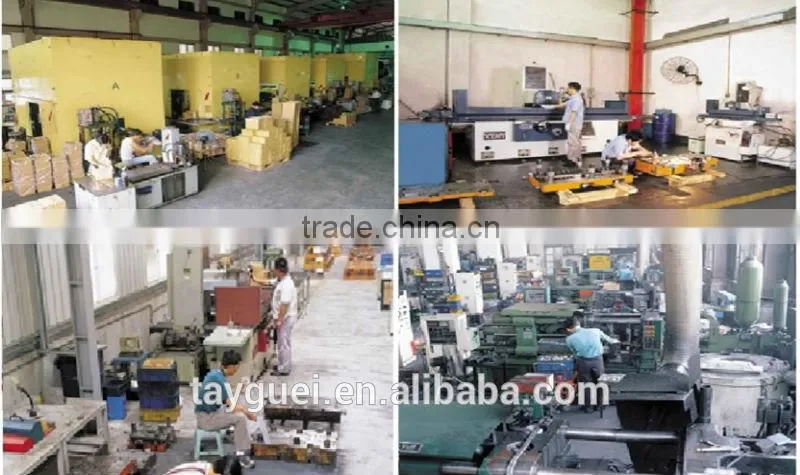

COMPANY INTRODUCTION

     Tay Guei Industry Co., LTD & Chuan Den Precision Co., LTD. established in 1984, having been committed to the most professional operations of silicon steel sheet lamination pressing. At present, our products are divided into two major categories:”STANDARD” and “CUSTOMIZED” products which are widely used in the various types of AC/DC motor products, such as desk/stand fans, ceiling fans, pumps, industrial motors…ETC. Furthermore, we developed the silicon steel sheet lamination in 2011 which is conformed to HIGH EFFIENCY MOTOR PRODUCTS of IEC and IE2, IE3 of NEMA and believed to meet with the requirement of consequent high-efficiency ERA.In addition, in order to provide faster service to satisfy the growing demand, we setup Chuan Den Precision Co. LTD. at Dongguan, China in 1990.

     Currently, our plant in Taiwan covers the area location of 5,500 square meter and 30,000 square meter in China. The annual output of both plants exceeds more than 50,000 tons. The main material we used comes from Taiwan State-Owned Enterprise, China Steel Corporation, so that we may provide the most special price and highest quality for you. Our customers are included all over the world and we have always followed the most professional QC management and outstanding Technology to serve customers for best achievement.

     We sincerely hope that you may grant us an opportunity for us to create the long-lasting and beautiful future for you.

High speed pressed motor core

High speed pressed motor core

High speed pressed motor core

High speed pressed motor coreHigh speed pressed motor coreHigh speed pressed motor coreHigh speed pressed motor core
