Low Pour High Tensile Steel Wire Fuel Oil Hose
US$ 0.5 - 6
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
KELONG
Model Number:
SAE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Tensile High Pressure Steel Wire Braided Rubber HoseUS$ 0.35 - 5MOQ: 50 Meters -
High Tensile Cloth High Pressure Water HoseUS$ 1 - 5MOQ: 50 Meters
-
Industral 1/8 to 3 Inch Rubber Oil HoseUS$ 0.5 - 7MOQ: 50 Meters
-
Heat Resistant Industral 1.25 Inch Rubber Pipe Rubber Oil HoseUS$ 0.5 - 7MOQ: 50 Meters
-
Heat Resistant Industrial Hydraulic Flexible Rubber HoseUS$ 0.5 - 7MOQ: 50 Meters
Place of Origin
Shaanxi, China
Brand Name
KELONG
Model Number
SAE
low pour high tensile steel wire fuel oil hose
Product description :
| material | rubber |
| inner tube | oil resistant |
| hose standard | SAE,EN,DIN |
| surface | cloth |
| temperature | -40~+121 |
| application | petroleum base |
| the max working pressure | 32 MPa |
| size | 3/16~4 inch |
| sample | free sample |
| business type | manufacture |
| MOQ | 50 meters |
| payment | L/C,T/T |
| package | in plastic bag |
| delivery | within 2 weeks, or according to quantity |
Construction:
inner tube : oil resistant;
middle : steel wire reinforcement layers;
cover : oil and weather resistant.

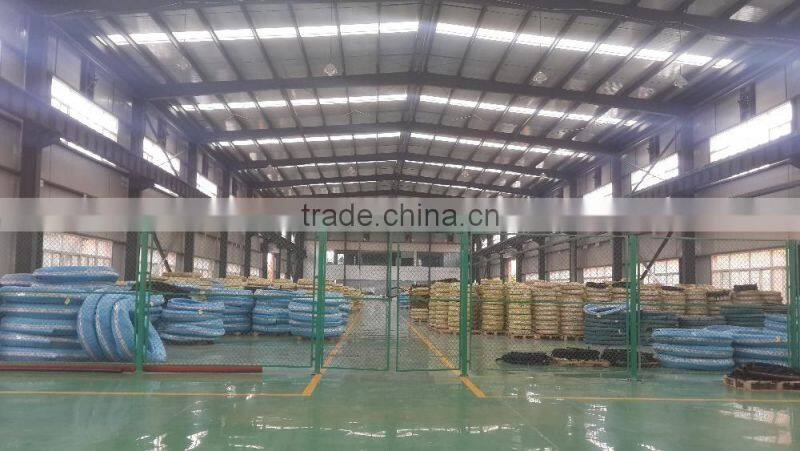

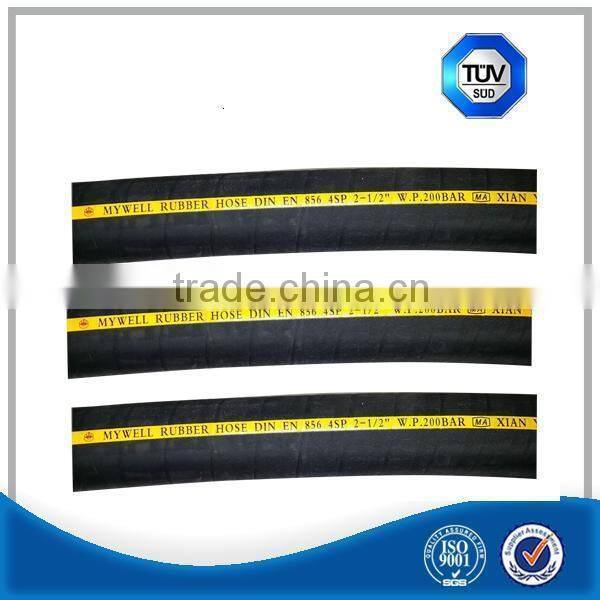

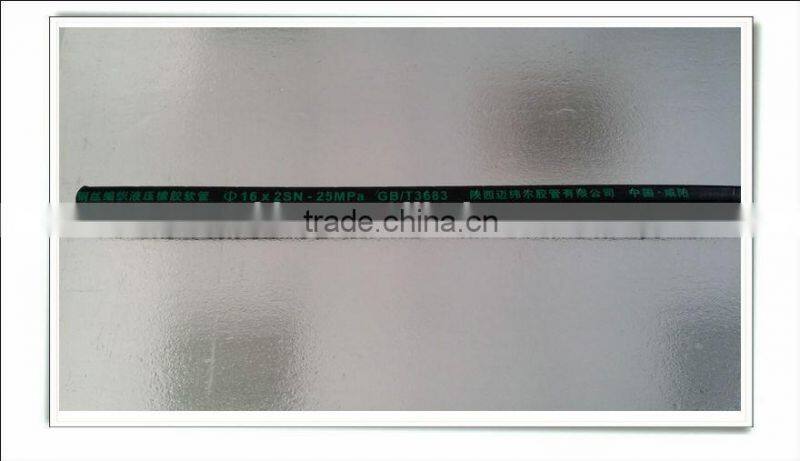

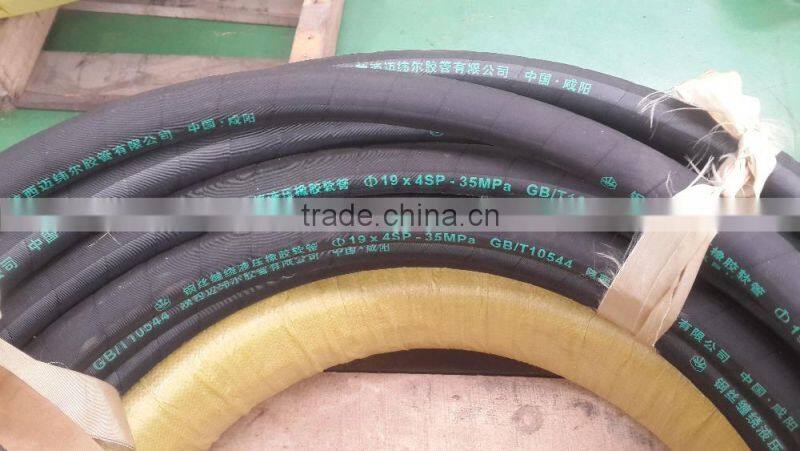

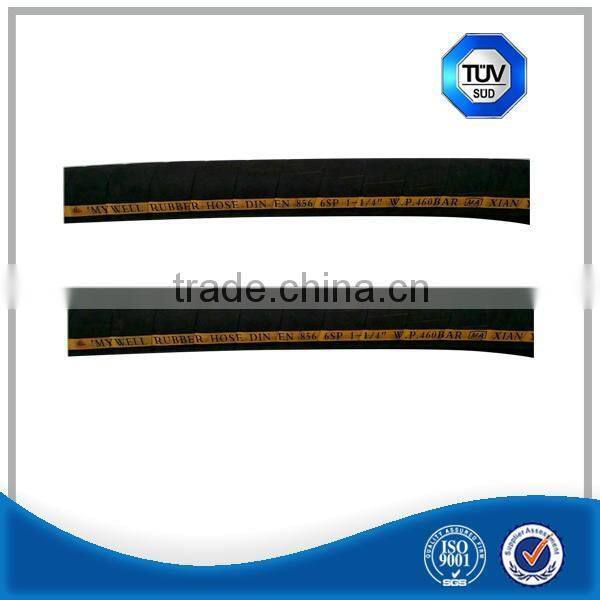

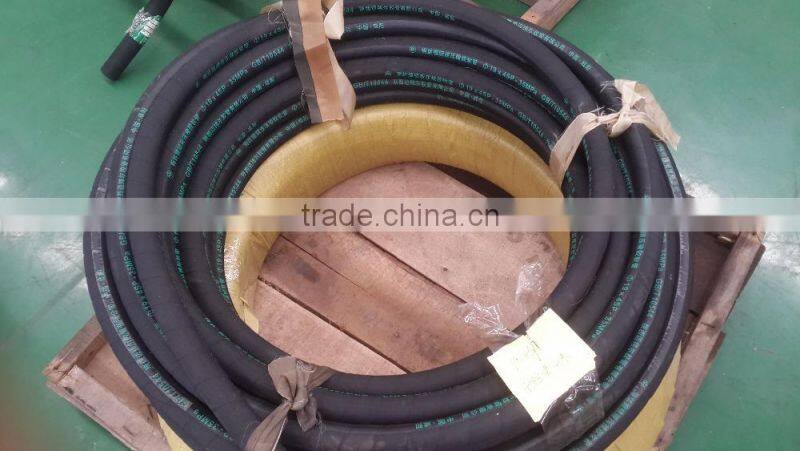

Product show:
Application:
applied to the hose which use the petroleum base hydraulic oil ,and within a temperature -40~+121. the appear ance is black smooth and black cloth grain.
Four steel wire spiral rubber hose
| size(mm) | inch | I.D(mm) | reinforcement(mm) | O.D(mm) | max working pressure | test pressure | burst pressure | min bend radius |
| W.P(Mpa) | P.P(Mpa) | B.P(Mpa) | minB.R(mm) | |||||
| 10 | 3/8 | 10±0.5 | 19.2±0.8 | 23.5±1 | 70 | 105 | 210 | 160 |
| 13 | 1/2 | 13±0.5 | 22.2±0.8 | 26.5±1 | 60 | 90 | 180 | 210 |
| 16 | 5/8 | 16±0.5 | 26±0.8 | 29.5±1 | 55 | 82.5 | 165 | 260 |
| 19 | 3/4 | 19±0.5 | 30±0.8 | 34.5±1.5 | 46 | 69 | 140 | 280 |
| 22 | 7/8 | 22±0.8 | 33±0.8 | 36.5±1.5 | 40 | 60 | 120 | 320 |
| 25 | 1 | 25±0.8 | 36±0.8 | 40.5±1.5 | 38 | 57 | 114 | 360 |
| 32 | 1 1/4 | 32±0.8 | 44±0.8 | 48.5±1.5 | 34 | 51 | 102 | 460 |
| 38 | 1 1/2 | 38±1 | 50.8±0.8 | 55.5±1.5 | 25 | 37.5 | 75 | 560 |
| 45 | 1 3/4 | 45±1 | 57.8±1 | 62.5±1.5 | 23 | 34.5 | 69 | 660 |
| 51 | 2 | 51±1 | 63.8±1 | 68.5±1.5 | 20 | 30 | 70 | 720 |
| 64 | 2 1/2 | 64±1 | 76.8±1.5 | 82±0.2 | 20 | 30 | 70 | 980 |
| 76 | 3 | 76±1 | 89.6±1.5 | 94.5±2 | 16 | 24 | 48 | 1200 |
Six steel wire spiral rubber hose
| size(mm) | inch | I.D | reinforcement | O.D | max working pressure | test pressure | burst pressure | bend radius |
| Min(mm) | Min(mm) | Max(mm) | W.P(Mpa) | P.P(Mpa) | B.P(Mpa) | minB.R(mm) | ||
| 10 | 3/8 | 10±0.5 | 21.6±1 | 25.6±1.2 | 95 | 142.5 | 285 | 210 |
| 13 | 1/2 | 13±0.5 | 24.6±1 | 28.6±1.2 | 80 | 120 | 240 | 260 |
| 16 | 5/8 | 16±0.5 | 28.2±1 | 32.2±1.2 | 61 | 91.5 | 183 | 310 |
| 19 | 3/4 | 19±0.5 | 33.0±1 | 37.0±1.5 | 60 | 90 | 180 | 350 |
| 25 | 1 | 25±0.8 | 39.0±1 | 43.0±1.5 | 47 | 70.5 | 141 | 430 |
| 32 | 1 1/4 | 32±0.8 | 47.0±1 | 51.0±1.5 | 45 | 67.5 | 135 | 530 |
| 38 | 1 1/2 | 38±1 | 53.8±1.2 | 58.0±1.5 | 40 | 60 | 120 | 660 |
| 51 | 2 | 51±1 | 67.2±1.2 | 71.2±1.5 | 46 | 69 | 130 | 820 |
| 64 | 2 1/2 | 64±1 | 80.2±1.5 | 84.2±2 | 35 | 52.5 | 105 | 1100 |
Packing and Delivery
Our services
1. Any quantity of the rubber hose is ok,
2. We'd like to provide free samples of the rubber hose in 3 days, if it's needed ;
3. The payment methods of rubber hose : T/T
4. If you have any question , please contact us .
