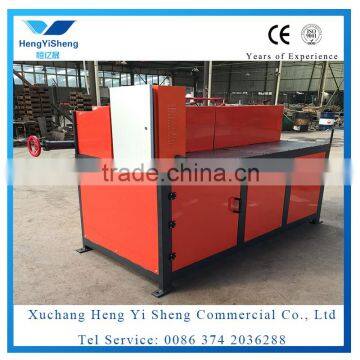

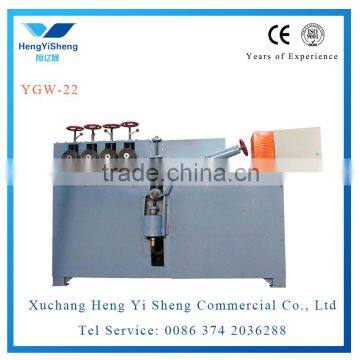

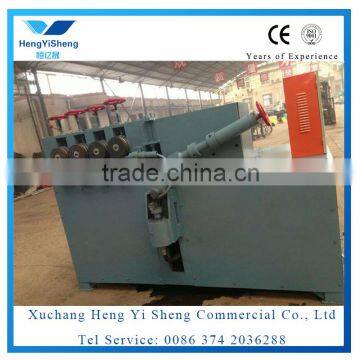

Hydraulic and automatic spiral steel bending machine, Rebar spiral bending machine
Product Description:
1. Automatic spiral steel bending machine for my company independent design and production, the use of single-chip integrated control, arbitrarily adjustable parameters, multiple parameter storage function, digital display, saving time, easy management, improve production efficiency (spiral reinforcement whole machine adopts microcomputer CNC automatic PLC code control system, users simply enter numerical coding spiral reinforcement spacing in the upper display, a few meters).
2. Machine key part of the imported components, to ensure the life of the machine, using the encoder meter error is extremely small, accurate positioning.
3. This machine has a smooth, fast and accurate characteristics, having fast. Slow, inverted material characteristics.
Smooth: all have hydraulic transmission, cycloid motor without gear power, you can reduce the backlash
Quick: 20-40 meters per minute
Accurate: error range ± 0.50MM
4. This machine is box structure, good rigidity, hydraulic transmission part flexible and reliable.
5. Control box: Fast feeding, automatic cutting, manual cutting, automatic stop, start and other functions.

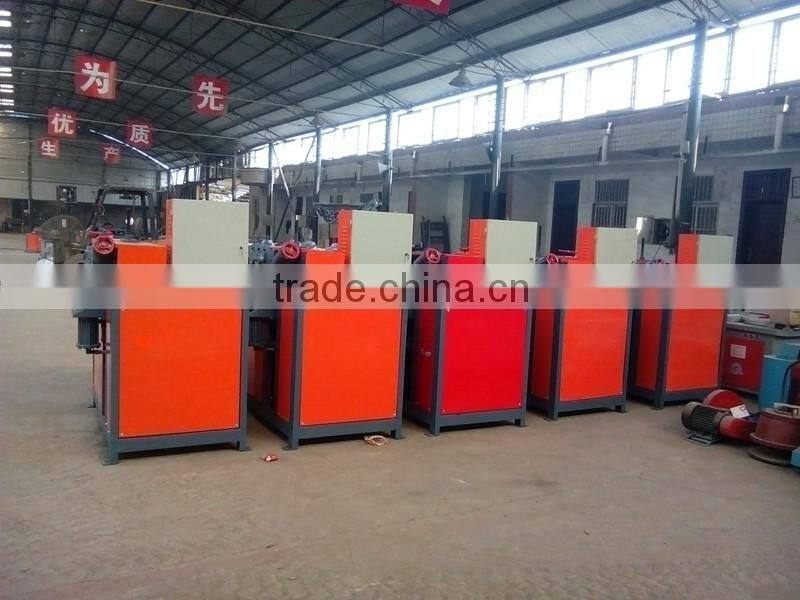

Workshop show:
Specifications:
Model |
YGW-10 |
YGW-16 |
YGW-22 |
Bending round bar |
4-10mm |
10-16mm |
16-22mm |
Spiral ring diameter |
200mm-1000mm |
200mm-1000mm |
200mm-1000mm |
Error Range(mm) |
±0.50mm |
±0.50mm |
±0.50mm |
Bending speed(m/min) |
20-40m/min |
20-40m/min |
20-40m/min |
Motor power(kw) |
7.5KW |
11.5KW |
16KW |
Pitch size |
Can be adjusted |
Can be adjusted |
Can be adjusted |
Machine Size(mm) |
2000 * 1000 * 1700 |
2200 * 1000 * 1700 |
2600 * 1000 * 1800 |
Machine weight(kg) |
900kgs |
1000kgs |
1300kgs |

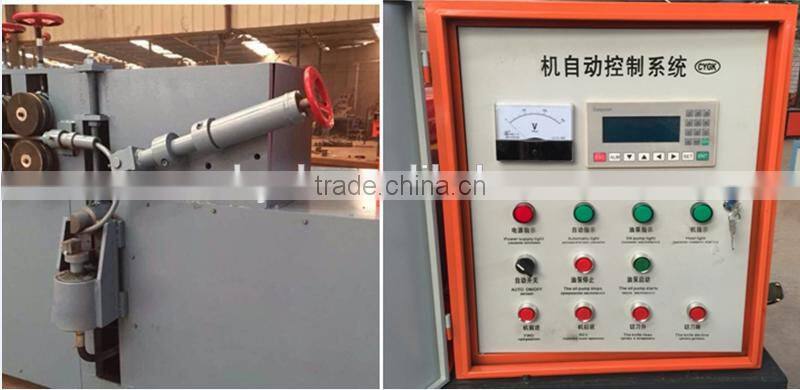

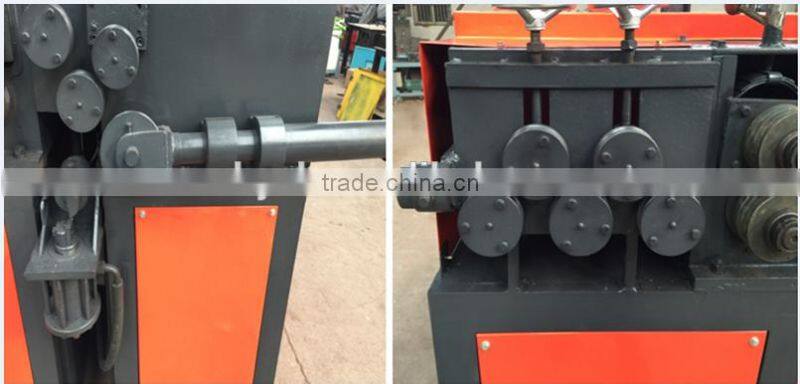

Detailed pictures of spiral steel bending machine:

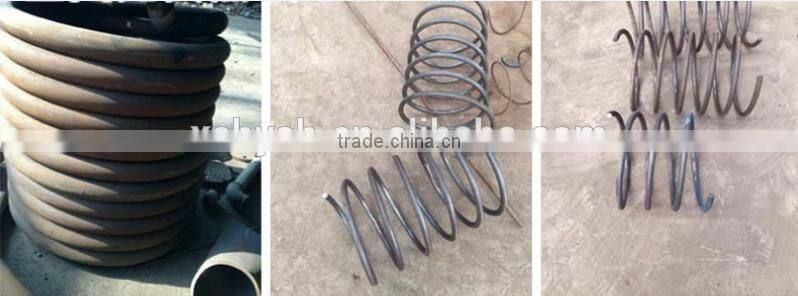

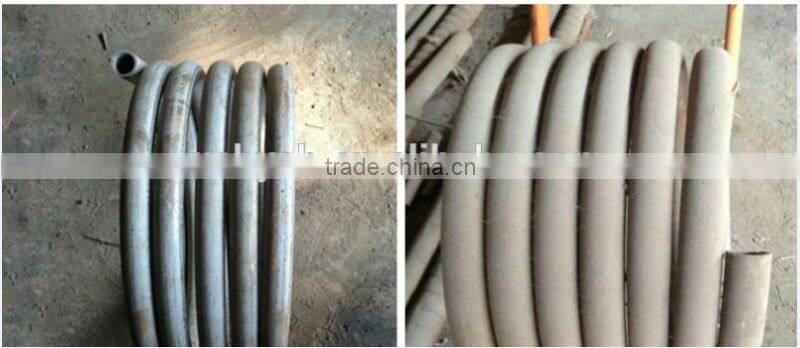

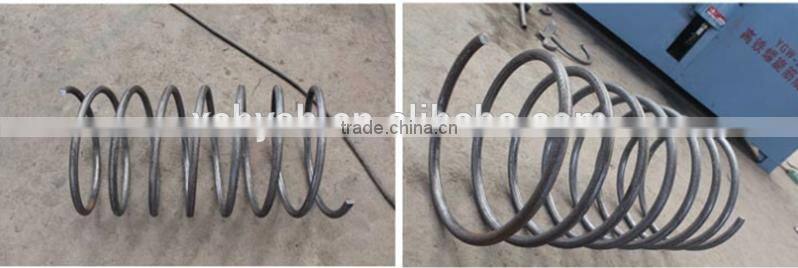

Finished products of spiral bending machine:
