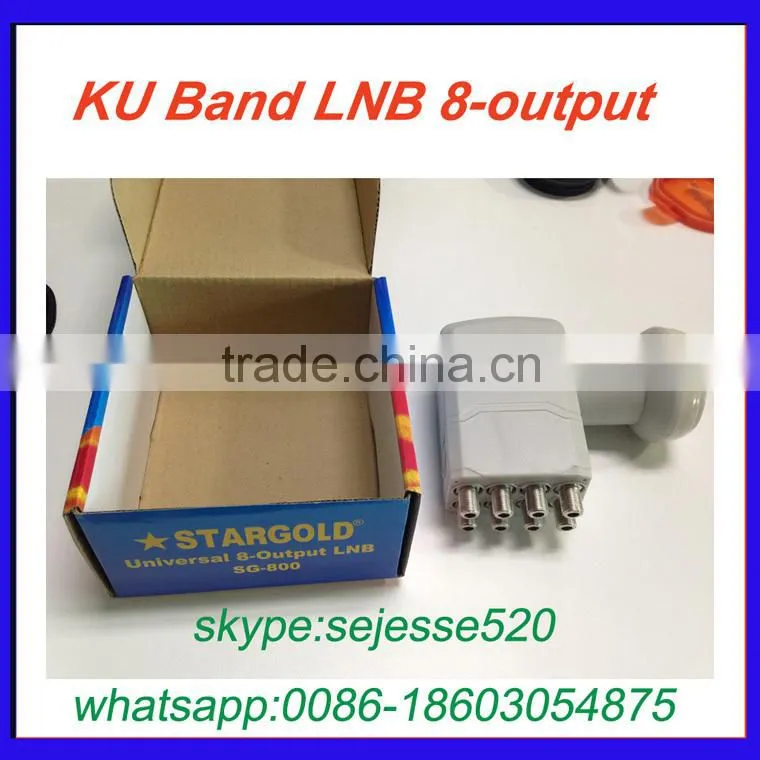

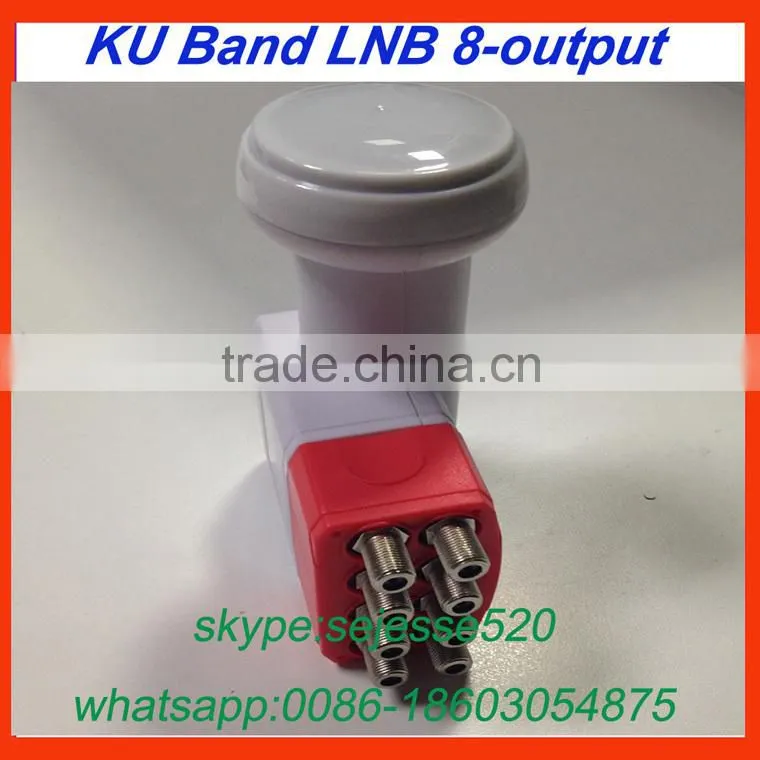

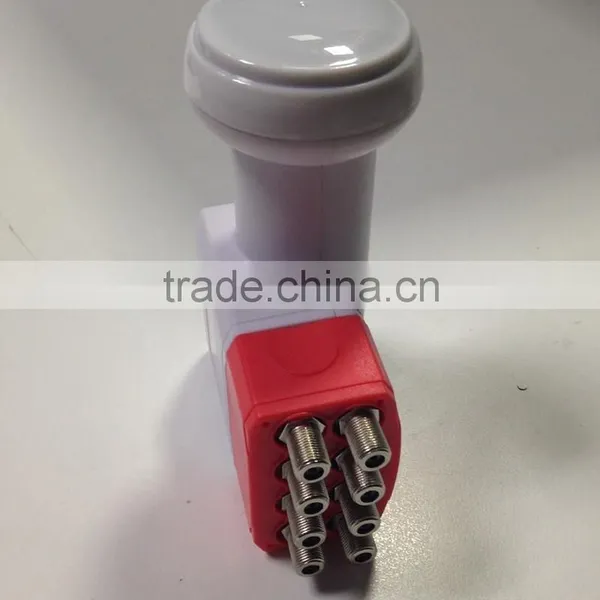

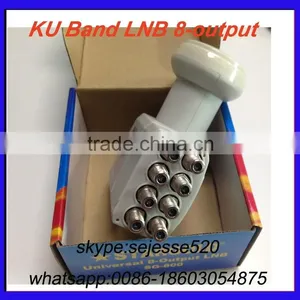

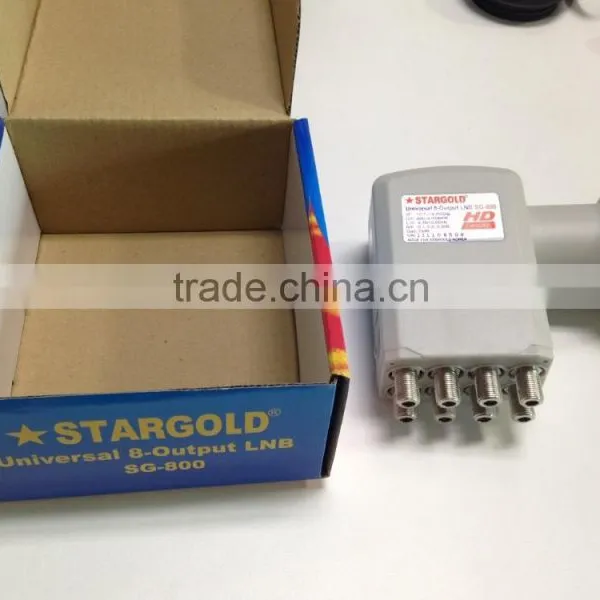

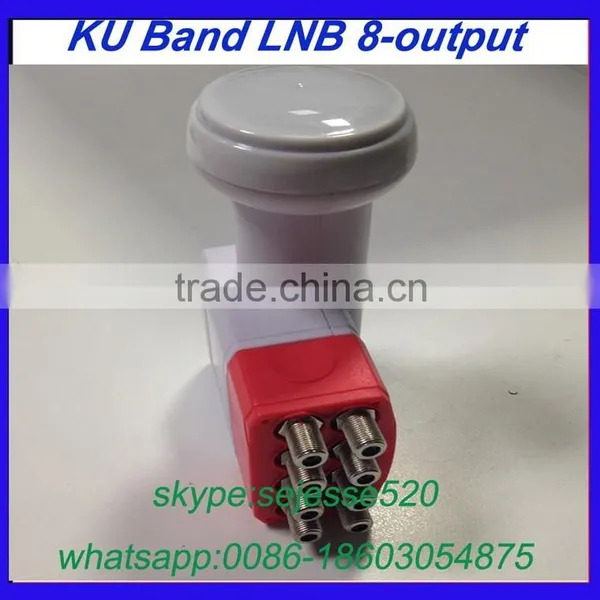

High power ku band LNB with lnb 8 output
High power ku band LNB with lnb 8 output
-Low Noise Figure 0.3dB
-HDTV digital ready
-Easy installation
-Waterproof
High power ku band LNB with lnb 8 output
Input Frequency Range
LOW Band:10.7~11.7GHz
High Band:11.7~12.75GHz
Output Frequency Range
Low Band: 950 - 2050MHz
High Band: 1100 - 2150MHz
Input VSWR
2.5:1
Output VSWR
2.5:1
L.O. Frequency
Low Band 9.75GHz
High Band 10.6GHz
L.O. Stability
±2MHz @ (-40c~70c)
L.O. Phase Noise
-70dBc/Hz (1KHz Offset)
-90dBc/Hz (10KHz Offset)
-110dBc/Hz (100KHz Offset)
Conversion Gain
60dB (TYP)
Gain Flatness
±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure
±0.3dB (Typ)
Image Rejection
50dB(Typ)
Output Power
+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination
23dB(Min)
DC SUPPLY VOLTAGE
11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT
130mA (MAX)
LOW/HIGH BAND SWITCHING
Low Band: 0Hz
HIGH BAND: 22KHz±4KHz
Output Connector
75Ω "F" type female
RELATIVE HUMIDITY
0%~95%
Operating Temperature
-30 °C to +70 °C
