FPC Membrane Switch With Connector FPC Hdmi Fpc Connectors

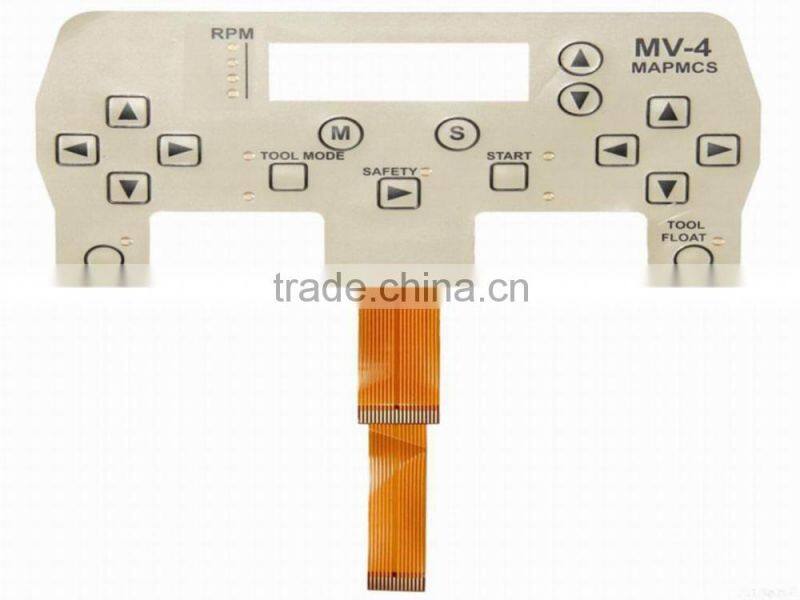

FPC membrane switch

Fpc :

1. fpc cable with different pitch

2. Customize fpc cable  Length

3. Customize fpc cable Contact: 0.2mm,0.3mm,0.4mm,0.5mm,1.0mm,1.25mm

4. UL fpc cable  & ROHS compliant

Discription & Feature of fpc cable   :

1. Fpc cable wide Pitch Range: 0.2mm,0.3mm,0.4mm,0.5mm,0.8mm ,1.0mm ,1.25mm,1.27mm, 2.0mm,2.5mm 2.54mm

2. Custom fpc cable Length: 15mm ~ Longer available.

3. Fpc cable Pin Number: 3-100 (custom cable service is provided)

4. fpc cable all products compliant with ROHS

5. Small size, high density integration

6. Space- Saving

7. Simplify layout procedure and simplify wiring.

8. With good flexibility and folded easily and freely

9. Enjoy the popularity in China mainland, EU,North America and Canada,etc.

10. Delivery Term: EXW

Fpc Application:

fpc  widely used in

stereo set and digital camera

Video camera

on-vehicle stereo set and TV set

typewriter and calculator

cash register and phone set

CD-ROM,VCD and DVD

duplicator and printer

wireless instrumentation

video-audio devices and aerospace equipment

Graphic Overlay Material Selection

     The two most widely used graphic materials are polycarbonate and polyester. polycarbonate comes in thicknesses of 0.127 – 0.762mm thick while polyester comes in thicknesses of 0.127 – 0.254mm.

     Polyester has greater tensile strength than does polycarbonate, which often allows it to withstand millions of actuations before fracturing. Also, polyester has a greater resistance to a broad range of chemicals.

     Polycarbonate is slightly easier to both print and emboss.

Graphic Design and Preparation

Blueprints – Provide drawings that clearly dimension all physical characteristics including color breaks and copy.

Colors – Identify colors by using Pantone (PMS) color number or a color sample. It is important to supply the exact standard for which our color match will be evaluated.

Background – Dark backgrounds and light text will provide greater clarity and show less wear and dirt.

Artwork – It is possible for customers to supply useable artwork.

Borders and Outlines – Avoid outlines close to cutouts or outer edges.

Text – Block lettering provides the most legible copy. Try to use common fonts. When logos or symbols are used, it is best to supply film positives or accurate black and white artwork .

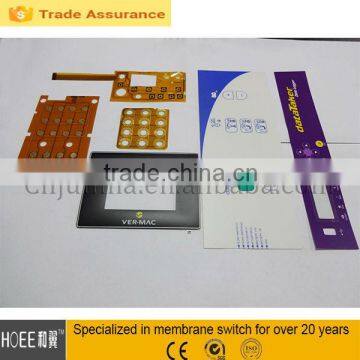

Products show :

Testing instrument :

Our stable client :

WHY US (HOEE)?

The Quality We Provide - Outstanding Quality Assurance

Control from production process:

We strictly follow the international standard in production, all process is supervised under inspection department.

Control from material:

We are strict with the incoming materials and adopt original materials which is come from GE LEXAN.

AUTOTYPE.3M etc.

Control from inspection:

We have QC persons in every department, to ensure all components meet the quality demand.

The Service We Provide - We Take Care Of Your Order

Punctual delivery time:

•We put your order into our tight production schedule, ensure your punctual delivery time.

•Update the production progress for customers in time.

•Shipping notice/ insurance to you as soon as your order is shipped.

After sales service:

•We respect your feed back after receive the goods.

•We handle your complain within 48hours.

Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We are a sales team, with all technical support from engineer team.
