Specifications
aluminum alloy awning 9001.900*1600/1400mm
2.Applied in Parking, valley,window, ATM
3.Easily installed
4.20years guarantee
Introduction:
The awning material on the market nowadays is still not so decent, especially under bad weather. The awing with cloth cover cannot resist from the heavy wind while the acrylic can break easily. But the strongest stainless awning makes great noise when it rains.
GOODHOUSE aluminum alloy awning can solve this problem excellently. It is assembled by flexible aluminum alloy bracket and polycarbonate sheet. This new design is simple, but it changes the traditional way of customizing the non-standard awing and welding steel frame.
GOODHOUSE aluminum awning is novel design, strong and durable. It can be installed above the door, window, air conditioner, ATM, mailbox outdoor etc to protect from the sun and storm. The assembling parts are all quantity produced by machines with steady quality. Its incorruptibility can be tested by impact of a steel ball of 4.5kg and its anti-aging tested by accelerated ageing test showing 20-year life time used outdoor—8-15 times as regular awning. Moreover, it is UV protected and can resist typhoon 12. This series is patent protected with steady quality guaranteed.
GOODHOUSE aluminum awning is quantity produced and quality guaranteed. It is easily installed and the best choice for the solution of awning for the real estate developer and property management company. The workhouse and workers for making the traditional steel awning are not necessary so that the cost is reduced.

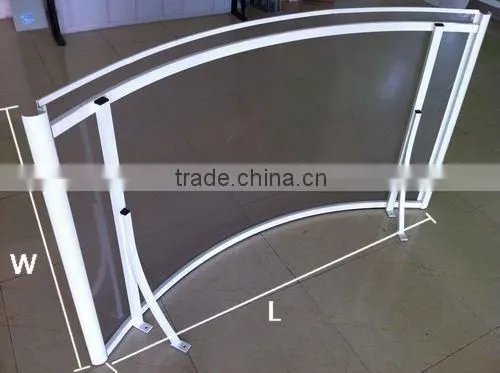

Specification:W900A
W(mm) |
L(mm) |
Remark |
1400 |
900 |
1 sheet,2 brackets, full set of accessories |
1600 |
900 |
1 sheet,2 brackets, full set of accessories |
Weight: 4.3kg/one brackeet
Assembling Parts
Sheet:4mmPolycarbonate solid sheet, 5mm hollow sheet
Bracket: Aluminum Alloy
Joint: Aluminum Fixing Bar

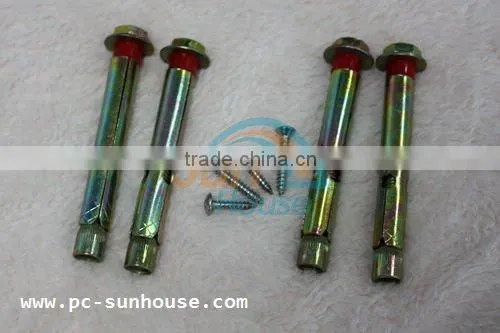

Others: Set Screw, Countersunk Screw, Rubber Strip

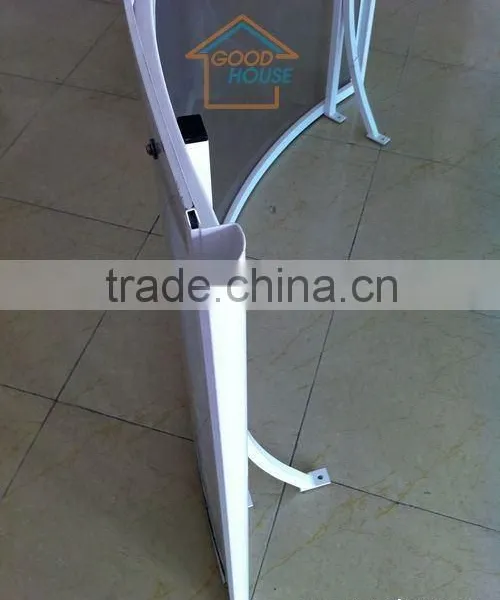

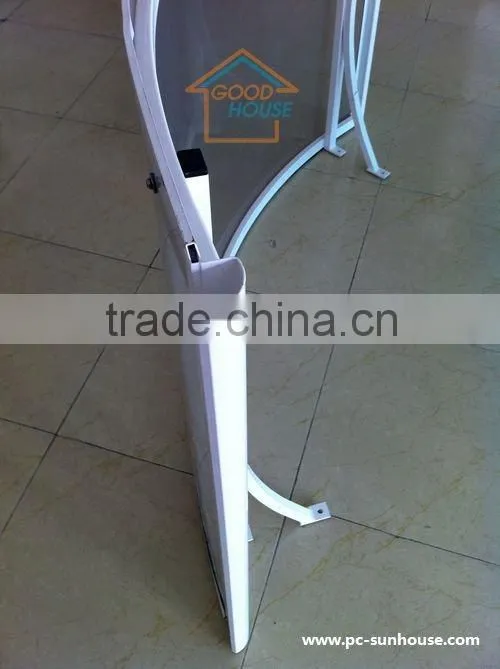

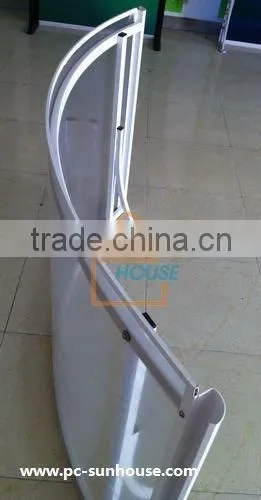

Bracket:
The bracket is made of aluminum alloy with UV coating. Its characteristic will not changed eventhough it is installed outdoor long time. It is anti-corrosion, anti-aging, even better than the engineering plastic.
The brackets include front strip, back strip, left bracket and right bracket. It also has the function of hanging out, which makes the design more considerable.
The bracket is made of aluminum alloy with UV coating. Its characteristic will not changed eventhough it is installed outdoor long time. It is anti-corrosion, anti-aging, even better than the engineering plastic.
The brackets include front strip, back strip, left bracket and right bracket. It also has the function of hanging out, which makes the design more considerable.
Characteristic: The left and right bracket can bear 50kg weight with elegant butterfly appearance.
Color of the bracket:
Grey & Black

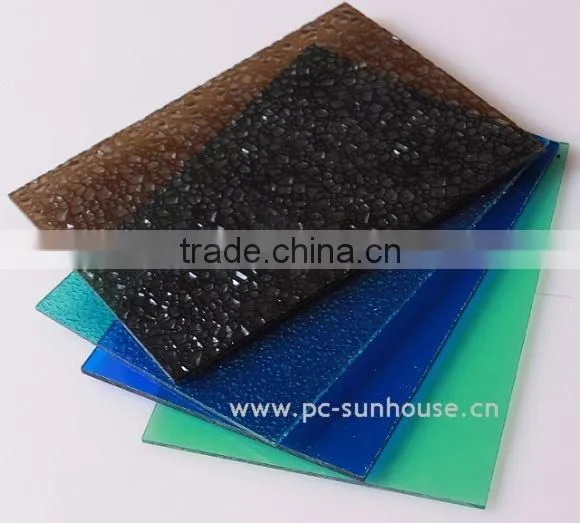

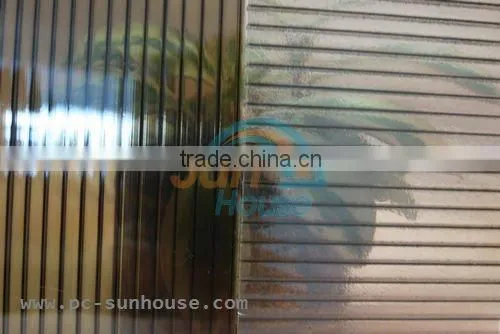

Polycarbonate sheet: The cover is usually 5mm polycarbonate hollow sheet or 3mm polycarbonate solid sheet.Polycarbonate sheet is anti-UV with better weather resistance and impact resistance.
Color of the sheet: Clear opal green blue bronze (Special color can be customized if large quantity)
Excellent Features:
20 years guarranteed
Assembled flexibly and continually.
Wind resistant, impact resistant, anti-aging, anti-corrosion, easy mantainance, easy installation, low noise, UV-protection
Installation tools: Percussion drill, Hammer, Screw Driver, silicon gel(better)

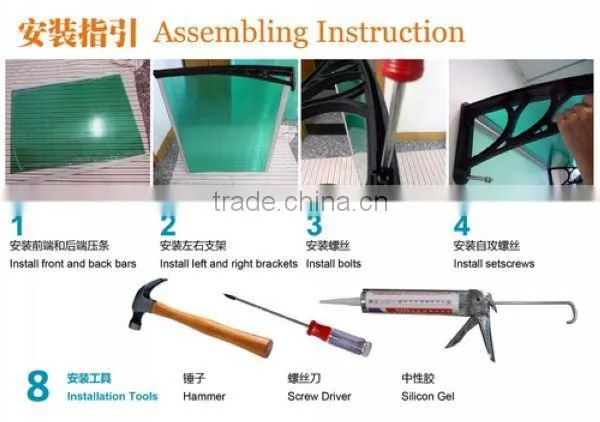

Installation Instruction:
See below:

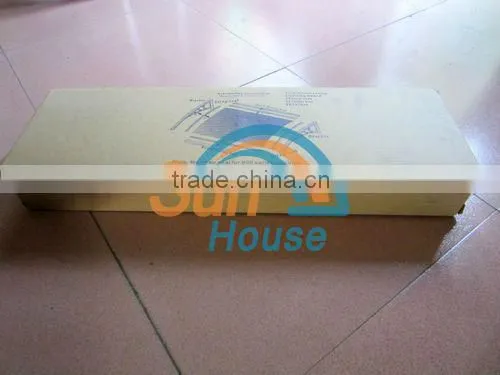

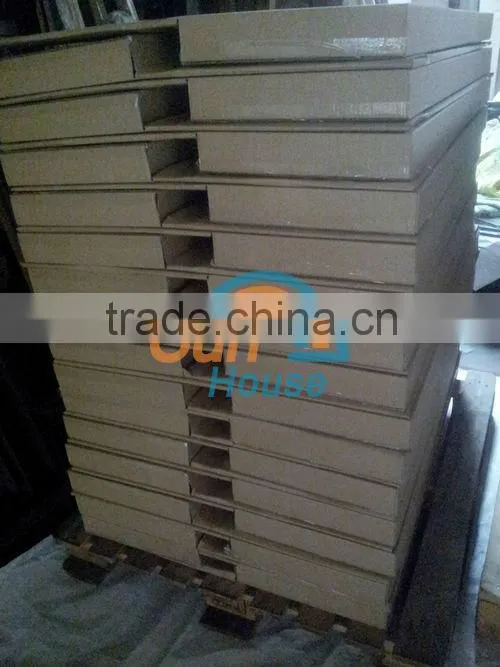

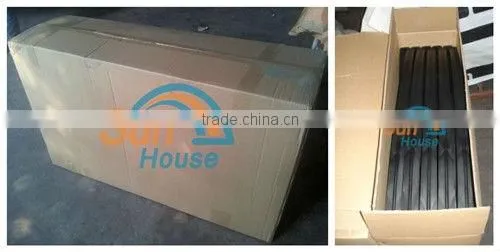

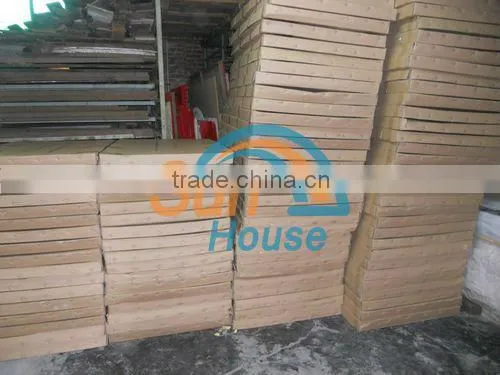

Packing:
Carton
1. ONE Carton: 2 brackets, 2 alu. bars, one set of rubbers and screws
2. ONE CARTON: 2 brakets, 2 alu. bars, 1 set of rubber and screws, polycarbonate sheet
3. ONE CARTON: 10/16 brackets.
Other accessories are packed independently.
