Help CenterEU Type AC DC Adapter
Related Products
Specifications
1.EU Type AC DC Adapter2.Two years' warranty
3.Wide application
4.Super Mini Size and Portable

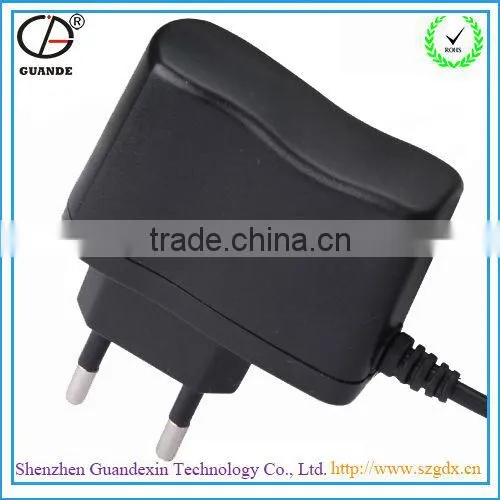

EU Type AC DC Adapter
Application: the lithium ion battery, digital cameras, digital photo frame, telecommunications terminal equipment, monitor equipment, test equipment, LED lamps and lanterns, electric tools, portable DVD, LCD, audio, video monitoring system and carry any protable type equipment.
[Technical specification]
[Feature]:
[C.C/C.VMODE]
[super Mini size ane Easy Protable]
[Light convenient plug in]
[Input/Output Specifications]:
[Range Voltage]:..........AC90-264V,47-63Hz
[Output Power]:..........................0-5W
[Output Voltage]:.........................3-24V
[Max.Current] :........................1.2A
[Over Voltage Protection]:...............120%min
[Over Current Protection]:...............120%min
[Short Protection]:................Auto Recovery
[Load Regulation]:....................±3-5%
[General SpECIFICATIONS]:
[Operating Temperature]..............0-40°C
[Storage Temperature]:................-20-+85°C
[Operating Relative Humidity]:.........5-95%RH
[Withs tanding Voltage]:.....AC3000V(Max),5mA(Max)
[Insulation Resistance]:DC500V 100MΩ(Min)
Technical Specifications | |
Input/Output Specifications | |
Input Voltage |
AC 90-264V, 47-63Hz |
Output Power |
0-5W |
Output Voltage |
3-24V |
Max. Output Current |
1.2A |
Over Voltage Protection |
120% Min. |
Over Current Protection |
120% Min. |
Short Circuit Protection |
Auto Recovery |
Load Regulation |
±3-5% |
General Specifications | |
Operating Temperature |
0-40°C |
Storage Temperature |
-20-+85°C |
Operating Humidity |
5-95% RH |
Withstanding Voltage |
AC 3000V(Max.), 5mA(Max.) |
Insulation Resistance |
DC 500V, 100MΩ(Min.) |
