Help Center5-6W Insert Wall Adaptor
Related Products
Specifications
1.5-6W Insert Wall Adaptor2.High quality and attractive price
3.Wide application
4.Super Mini Size and port

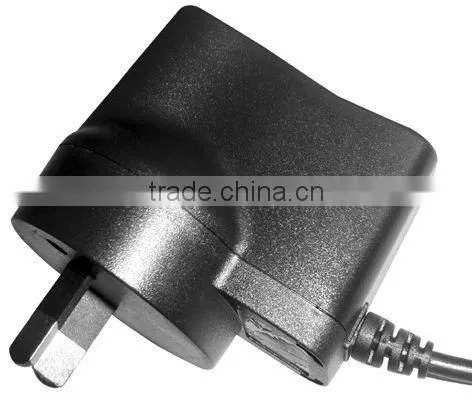

5-6W Insert Wall Adaptor
Application: Lithium ion battery, digital camera, digital photo frame, telecommunications terminal equipment, monitor equipment, test equipment, LED lamps and lanterns, electric tools, portable DVD, LCD, audio, video monitoring system and any other portable type equipment.
Technical specification
Feature:
Input/Output Specifications:
Range Voltage: AC90-264V, 47-63Hz
Output Power: 0-5W
Output Voltage: 3-24V
Max. Current: 1.2A
Over Voltage Protection: 120%min
Over Current Protection: 120%min
Short Circuit Protection: Auto Recovery
Load Regulation: ±3-5%
General Specifications:
Operating Temperature: 0-40°C
Storage Temperature: -20-+85°C
Operating Relative Humidity: 5-95% RH
Withstanding Voltage: AC3000V (Max), 5mA (Max.)
Insulation Resistance: DC500V, 100MΩ (Min.)
Technical Specification | |
Input/Output Specifications | |
Input Voltage |
AC 90-264V, 47-63Hz |
Output Power |
0-5W |
Output Voltage |
3-24V |
Max. Output Current |
1.2A |
Over Voltage Protection |
120%min |
Over Current Protection |
120%min |
Short Circuit Protection |
Auto Recovery |
Load Regulation |
±3-5% |
General Specifications | |
Operating Temperature |
0-40°C |
Storage Temperature |
-20-+85°C |
Operating Humidity |
5-95% RH |
Withstanding Voltage |
AC3000V (Max.), 5mA (Max.) |
Insulation Resistance |
DC500V, 100MΩ (Min.) |
