Specifications
AC Adapter 24V 500mA1.Two Years' Warranty
2.RoHS, TUV, CE, CB, GS, SAA, FCC, ETL
3.Super Mini Size, Wide Application

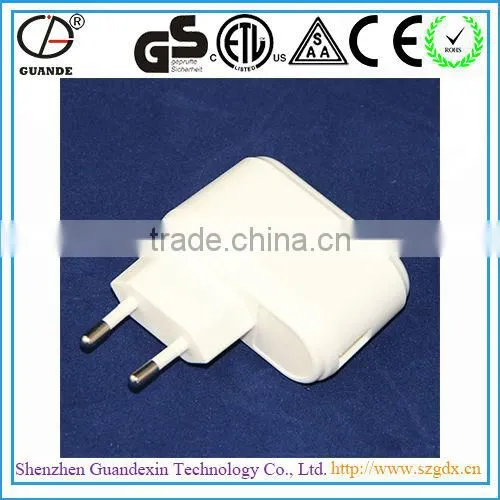

AC Adapter 24V 500mA
Application: Lithium ion battery, digital camera, digital photo frame, telecommunications terminal equipment, monitor equipment, test equipment, LED lamps and lanterns, electric tools, portable DVD, LCD, audio, video monitoring system and almost any other portable type equipment.
Technical specification
Feature:
1. Warranty: Two Years
2. Super mini size, light and portable
3. Protection: Over Voltage/Over Current/Short Circuit
4. Certificate: RoHS, 3C, TUV, CE, CB, GS, SAA, FCC and ETL approved
5. Wide application: Almost any portable type equipment
6. Universal Input: AC 100-240V, 50-60Hz
7. Build-in plug, convenient
8. C.C/C.V mode
Input/Output Specifications:
Input Voltage: AC 100-240V, 50-60Hz
Input Current: 0.45A
Output Voltage: 4.5-24V
Output Power: 0.45-12.3W
Max. Output Current: 2.4A
Over Voltage Protection: 120% Min.
Over Current Protection: 120% Min.
Short Circuit Protection: Auto Recovery
Load Regulation: ±3-5%
General Specifications:
Operating Temperature: 0-40°C
Storage Temperature: -20-+85°C
Operating Relative Humidity: 5-95% RH
Withstanding Voltage: AC3000V (Max), 5mA (Max.)
Insulation Resistance: DC500V, 100MΩ (Min.)
Technical Specification | |
Input/Output Specifications | |
Input Voltage |
AC 100-240V, 50-60Hz |
Input Current |
0.45A |
Output Voltage |
4.5-24V |
Output Power |
0.45-12.3W |
Max. Output Current |
2.4A |
Over Voltage Protection |
120% Min. |
Over Current Protection |
120% Min. |
Short Circuit Protection |
Auto Recovery |
Load Regulation |
±3-5% |
General Specifications | |
Operating Temperature |
0-40°C |
Storage Temperature |
-20-+85°C |
Operating Humidity |
5-95% RH |
Withstanding Voltage |
AC3000V (Max.), 5mA (Max.) |
Insulation Resistance |
DC500V, 100MΩ (Min.) |
