Help CenterCE Approved 6W Power Adapter
Related Products
Specifications
CE Approved 6W Power Adapter1.Super mini size
2.Two years' warranty
3.CE and RoHS approved
4.Good looking

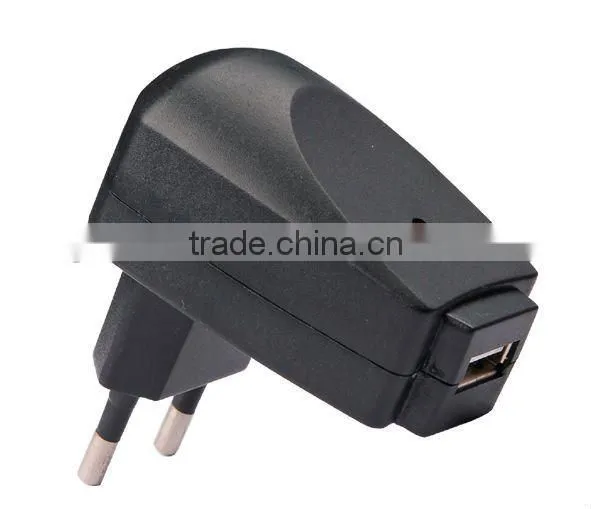

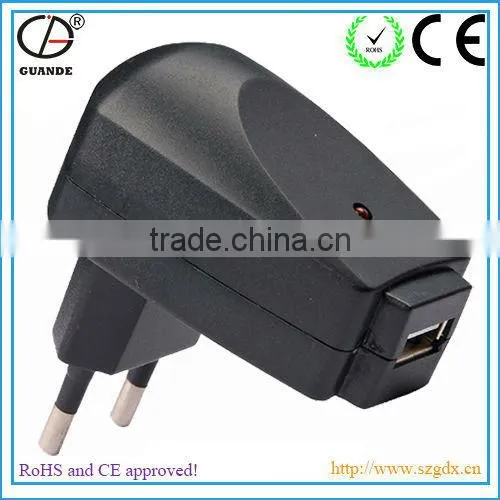

CE Approved 6W Power Adapter
Application: Lithium ion battery, digital camera, digital photo frame, telecommunications terminal equipment, monitor equipment, test equipment, LED lamps and lanterns, electric tools, portable DVD, LCD, audio, video monitoring system and almost any other portable type equipment.
Technical specification
Feature:
1. C.C/C.V mode
2. Super mini size
3. Portable
4. Light
5. Convenient
6. Build-in plug
7. Wide application
Input/Output Specifications:
Input Voltage: AC90-264V, 47-63Hz
Output Power: 0-6W
Output Voltage: 3-24V
Max. Current: 1.2A
Over Voltage Protection: 120% Min.
Over Current Protection: 120% Min.
Short Circuit Protection: Auto Recovery
Load Regulation: ±3-5%
General Specifications:
Operating Temperature: 0-40°C
Storage Temperature: -20-+85°C
Operating Relative Humidity: 5-95% RH
Withstanding Voltage: AC3000V (Max), 5mA (Max.)
Insulation Resistance: DC500V, 100MΩ (Min.)
Technical Specification | |
Input/Output Specifications | |
Input Voltage |
AC 90-264V, 47-63Hz |
Output Power |
0-5W |
Output Voltage |
3-24V |
Max. Output Current |
1.2A |
Over Voltage Protection |
120% Min. |
Over Current Protection |
120% Min. |
Short Circuit Protection |
Auto Recovery |
Load Regulation |
±3-5% |
General Specifications | |
Operating Temperature |
0-40°C |
Storage Temperature |
-20-+85°C |
Operating Humidity |
5-95% RH |
Withstanding Voltage |
AC3000V (Max.), 5mA (Max.) |
Insulation Resistance |
DC500V, 100MΩ (Min.) |
