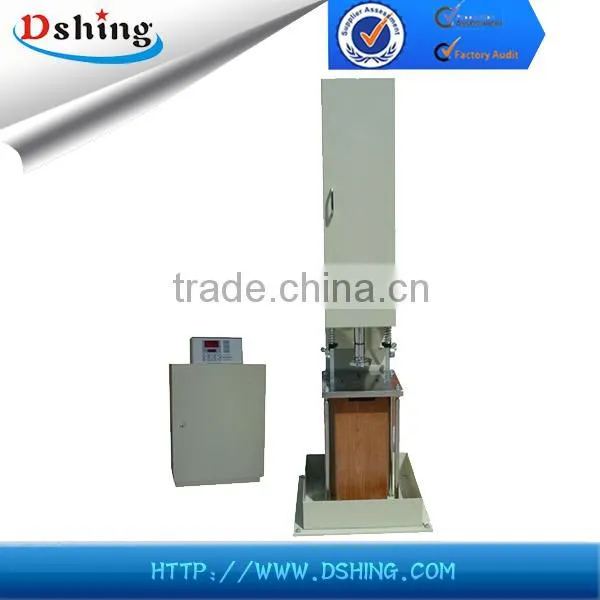

Help CenterDSHD-0702 Marshall Electric Compaction Tester
Related Products
-
DSHD-0702A Marshall Electric Compaction TesterUS$ 300 - 5,000MOQ: 1 Set -
DSHD-2801E1 Liquid Petroleum Asphalt PenetrometerUS$ 1,000 - 1,300MOQ: 1 Set
-
DSHD-2801G Penetrator (For Paraffin Wax)US$ 1,300 - 1,500MOQ: 1 Set
-
DSHD-2801F Double-digital Displayed Asphalt PenetrometerUS$ 500 - 6,000MOQ: 1 Set
-
DSHD-2801F Low Temperature PenetrometerUS$ 2,400 - 2,500MOQ: 1 Set
DSHD-0702 Marshall Electric Compaction Tester is designed and developed as per T0702 “Bituminous Mixture
Test Sample Making Methods (Compaction Methods)” in the Industry Standard JTJ052 Specification and
Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. The test sample made
by this instrument is in accord with test requirements for test sample stipulated in the Industry Standard
JTJ 052 T0709 “Bituminous Mixture Marshall Stability Test”. It is a special instrument to make test sample for bituminous mixture Marshall Test.
Technical parameters:
1. Weight of hammer: 4536g±9g;
2. Drop height of hammer: 457mm±1.5mm;
3. Compaction speed: 60±5 times/min;
4. Compaction times: It can be preset in the range of 0~99 times; The preset times can be stored;
5. Power supply: AC 220 V±10%, 50 Hz;
6. Power consumption: 370 W;
7. Test mold:
(1) Diameter: 101.6 mm;
(2) Height: 63.5 mm;
