flatbed cnc carton sample cutting machine

Specifications

1.Servo motor
2.Oscillating cutter head can meet various materials
3.Optional creasing tool for carton & corrugated

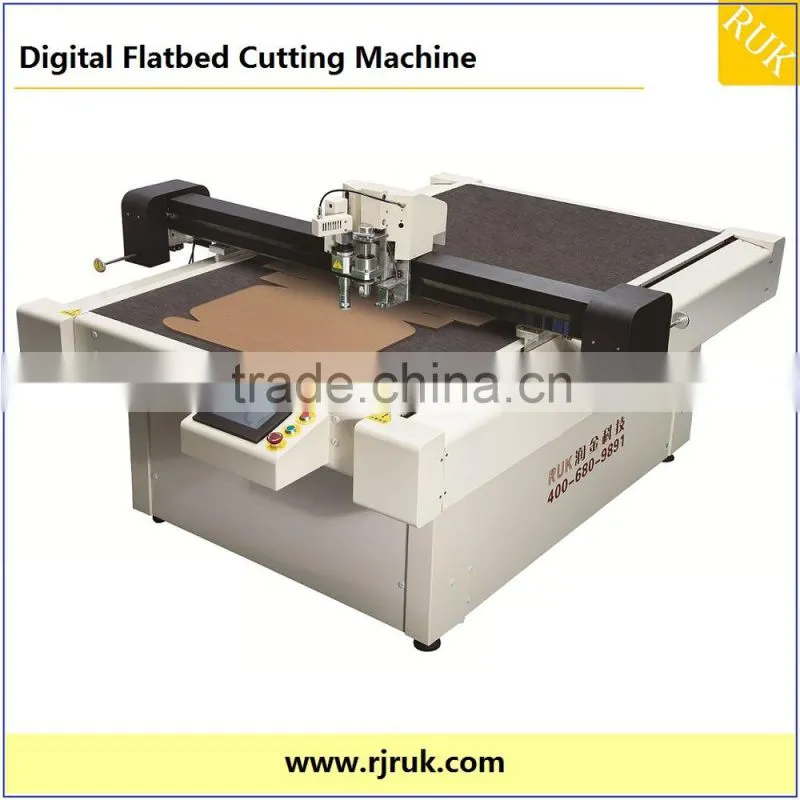

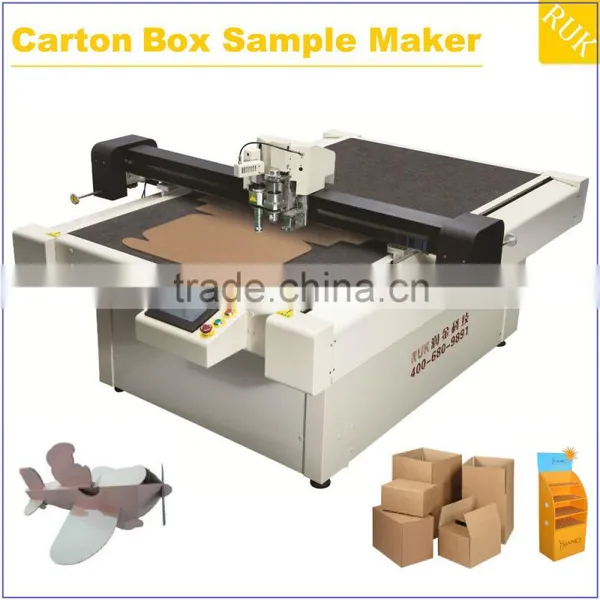

Digital Cutting Machine

                                                                                                                                                                                                                           <RJMTC01 Series>







What can this machine do?



This digital cutting machine work with your computer by Ethernet cable, you can send any design shape to this cutter  for cutting purpose. Below are the samples that cutted by this machine :



• Phototype box, small mass production box (carton box, cardboard box, color box)
• Cut contour in any shape for POS, POP

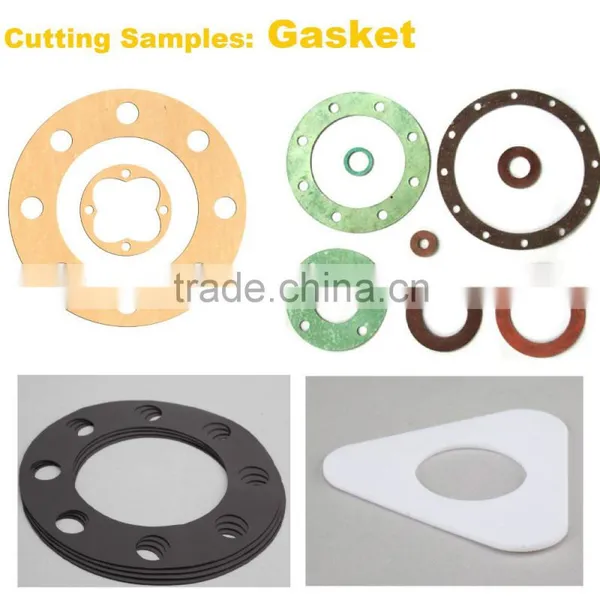

• Cut rubber gasket, paper gasket
• Cut floor mats
• Cut vinyl sticker







What material can we cut?



• Corrugated board, Plastick corrugated board
• Grey cardboard, ivory cardboard
• KT board, PVC foam board, EVA board, Foam board, Magnatic material
• Vinyl Sticker,  Reflecting material
• Rubber gasket

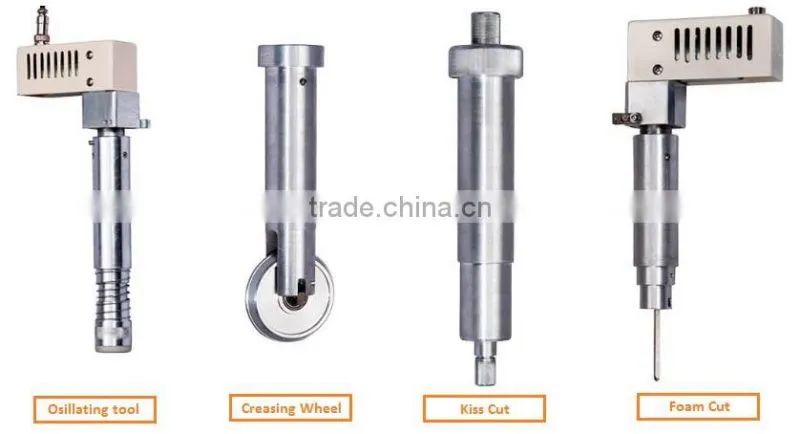

What is the tools equipped with?





• Osillating tools
• Creasing wheel
• Pen
• Cursor position
• Foam cut (for option)
• Kiss cut (for option)
• Drag blade (for option)

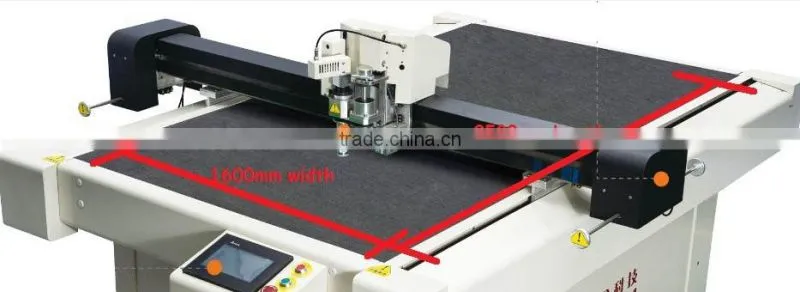

Three standard cutting area for your option:



• 1300mm x 1000mm
• 1800mm x 1500mm
• 2500mm x 1600mm
• Customerized size is acceptable too





What CAD software can work with our machine?

• AutoCAD
• AI
• Coreldraw
• Impack
• Cimpack
• Engview
• Any CAD software with HPGL format.



Technical Parameter:







Max.Cutting Speed	1000mm/s
Max.Cutting Thickness	30mm
Driving system	Digital Servo Motor, Straight Rail
Operate Panel	7 inch color Touch Screen
Interface	Ethernet
Fixing method	Vacuum Suction
Power	AC 380V ± 10%, 50HZ





Our Honor







Exporting Packaging:
