Product picture show

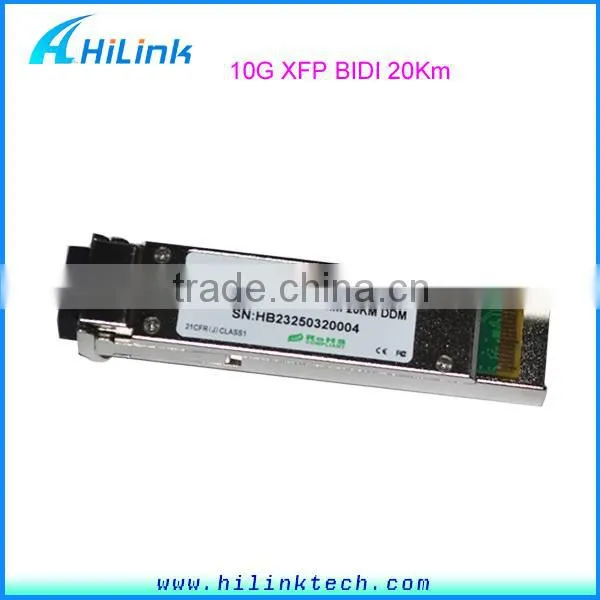

Single-mode XFP BIDI LR 1310/1270 20KM XFP with Simplex LC
Single-mode XFP BIDI
Features:
Operating data rate up to10.3Gbps
Type: 1270nmDFB Tx/1330nmRx 1330nmDFB Tx/1270nmRx
Distance up to 60km
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Average Output Power:-2~3dBm
Receiver Sensitivity:-14dBm
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Compliant with MSA SFP Specification
DDM function
Description
20km BIDI XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
| HaiLi Part Number | Cisco Part Number |
Application | Data Rate | Wavelength | Distance |
Connector Type |
| HL-XFP-SR | XFP-10G-MM-SR= |
XFP 10GB-SR | 10G | 850nm | 300m | LC |
| HL-XFP-LR | XFP-10GLR-OC192SR= | XFP 10GB-LR | 10G | 1310nm | 10km | LC |
| HL-XFP-ER | XFP-10GER-192IR+= | XFP 10GB-ER | 10G | 1550nm | 40km | LC |
| HL-XFP-ZR | XFP-10GZR-OC192LR= | XFP 10GB-ZR | 10G | 1550nm | 80km | LC |
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Packaging
OEM and ODM:
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have varies kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
