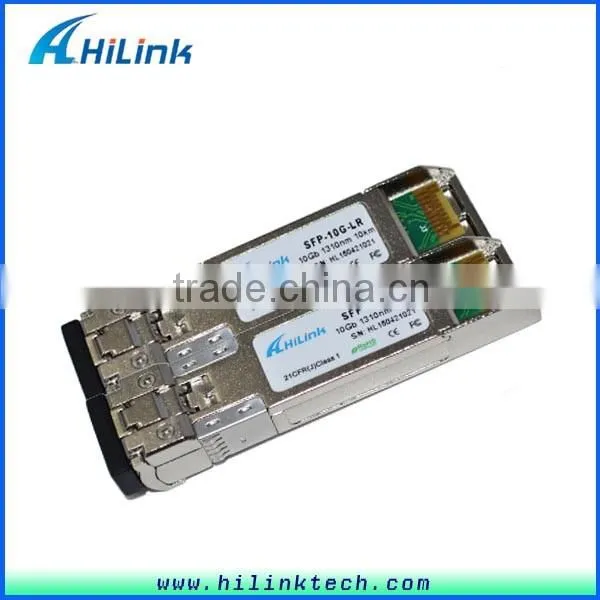

D-Link SMF 1310nm SFP-10G-LR
Features
- Up to 10.5 Gb/s Bi-directional Data Links
- Complaint with SFP+ MSA
- Compliant to IEEE 802.3ae 10GBASE-LR
- Compliant to IEEE 802.3ae 10GBASE-LW
- SFF-8472 Digital Diagnostic Function
- 1310 nm DFB LD Transmitter
- AC/AC Coupling according to MSA
- Distance up to 10 km at SMFiber
- Single +3.3 V Power Supply
- RoHS 6/6 Compliant
- Part Number: HL-SFP-LR
- Device Type: SFP+ LR
- Package: SFP+
- Data Rate: 10.3Gbps
- Wavelength: 1310nm
- Distance/Power Budget: 10km
- Optical Components
- LD: DFB
- PD: PIN
- Output Power: -6~-0.5dBm
- Receiver Sensitivity: -15dBm
- Power Supply Voltage: 3.3V
- Connector: Dual LC
- Fiber Type: SMF
- Operating Temperature: 0~70 °C
- DDMI: With
- Application: 10G/ 10G FC
- Compatiblity: All Brands
SFP+ Transceivers
Cisco Part Number |
Application | Data Rate | Wavelength | Distance |
Connector Type |
| SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| SFP-10G-ZR | SFP+ 10GBASE-ZR | 10G | 1550nm | 80km | LC |
Product Photos
More Products
Our Production Line
Certificates
OEM and ODM
OEM/ODM order is available
we can supply products according to your requirements, and design products label for your company.
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply wide range of high quality optical transceiver modules and passive CWDM/DWDM Mux/Demux. . The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
We supply all kinds of optical modules, if you can't find the product you need, just send us an inquiry, we'll reply you shortly.
