Specifications
Factory Price Fiber 10/100base Media Converter1. 10/100Mbps RJ45 port
2. SC,single mode
3. Transmission 20/40/60/80km
Factory Price Fiber 10/100base Media Converter
Media Converter
Feature
1. Support one 10/100Base-T Gigabit Ethernet UTP port and one 100Base-SX / LX Gigabit Ethernet Fiber port
2.Support 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
3.Support comprehensive types of fiber with different distances and connections, including SC/Bidi/LC and so on
4. Support auto mode on TP port
5. Fully compatible with CISCO, HP, 3COM equipment.
6. Low power consumption design, low heat dissipation for stable working.
7. Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX
8. Support full-duplex and half-duplex, auto-negotiation
9. Support automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
10.Support the transmission of extra-long VLAN packets
11. Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;
12.Support STP to form a redundant network;
13. Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
14. Multi Mode transmission distance:550M,Single Mode transmission distance:up to 80KM
15. Slide-in design optional, can be installed into HT100-2U-16 rack chassis
16. With wall mountable hole for industrial application
17. RoHS compliant
18 LFP(Link fault pass-through) Function,with DIP switch for setting
parameter |
Specifications |
Access mode |
10/100/1000Mbps Gigabit Ethernet |
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125um)/550m (50/125um)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
|
Port |
One RJ45 port:
Connecting with STP/UTP category-5 twisted pairs
One optical port:
Multi-mode Dual-fiber: SC (50, 62.5/125um)
Single mode Dual-fiber: SC/FC (9/125um)
Single mode Single fiber: SC/FC (9/125um)
|
Conversion means |
Media conversion |
Delay |
<10us |
BER |
<10-9 |
MTBF |
100,000 hours |
LED indicator |
PWR ,100M;FXL,1000M,TX,RX; |
Power supply |
AC220 0.5A/DC-48 (built-in) |
Power consumption |
5W |
Operating temperature |
-10~55°C |
Operating humidity |
5%~90% |
Storage temperature |
-40~70°C |
Maintaining humidity |
5% ~ 90% non-condensing |
Dimensions |
95mm*70mm*25mm(external power supply) |

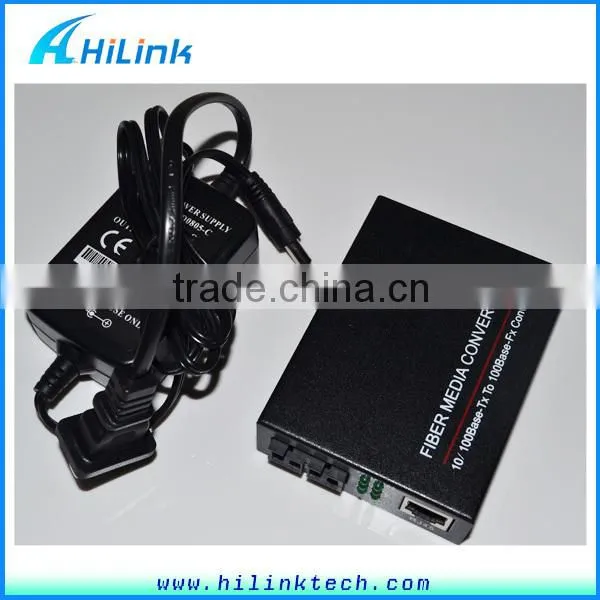

Picture show
Media converter
As we have various kinds of products,if you can't find the correct item,please send us inquiry.We will follow up shortly.

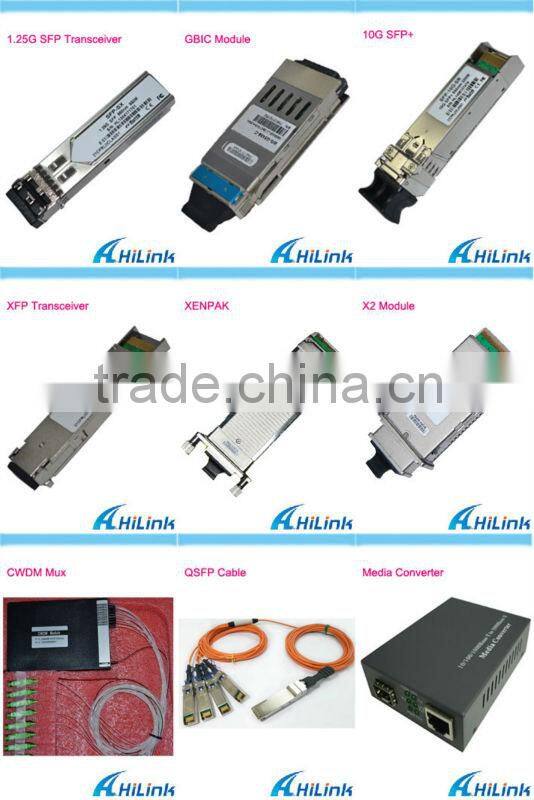

Product series

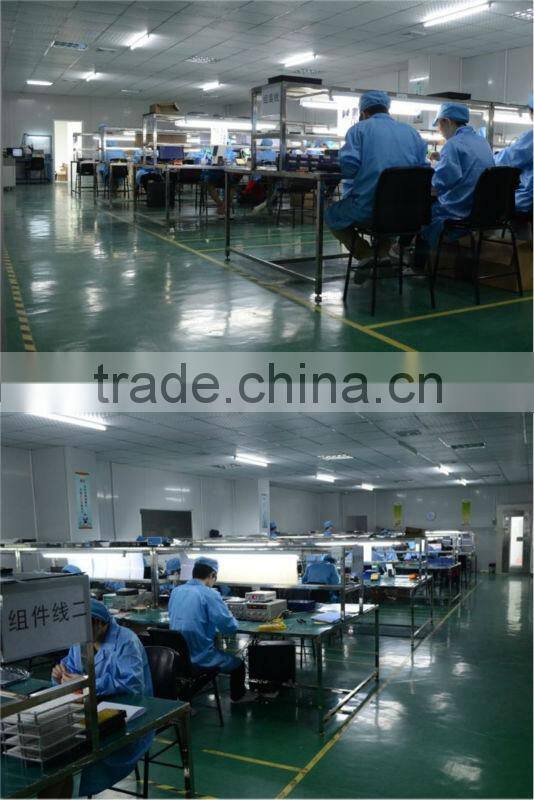

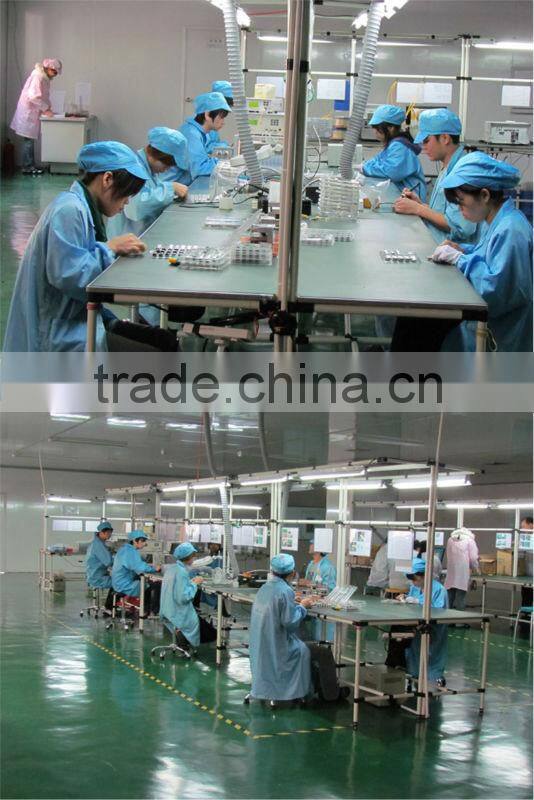

Workshop
Certificates
