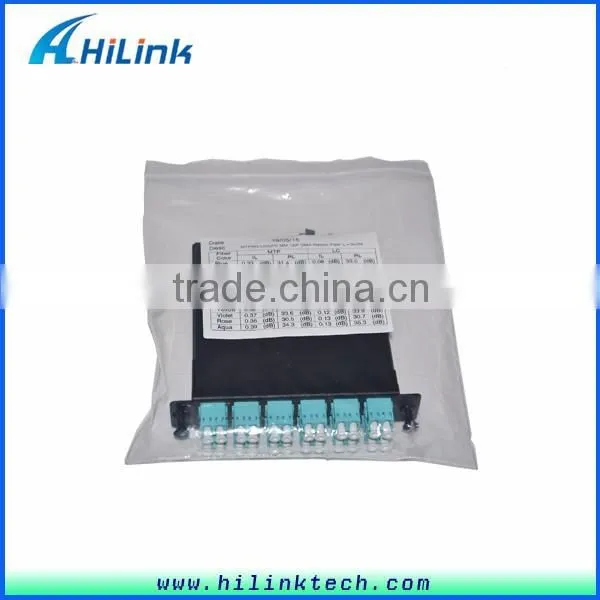

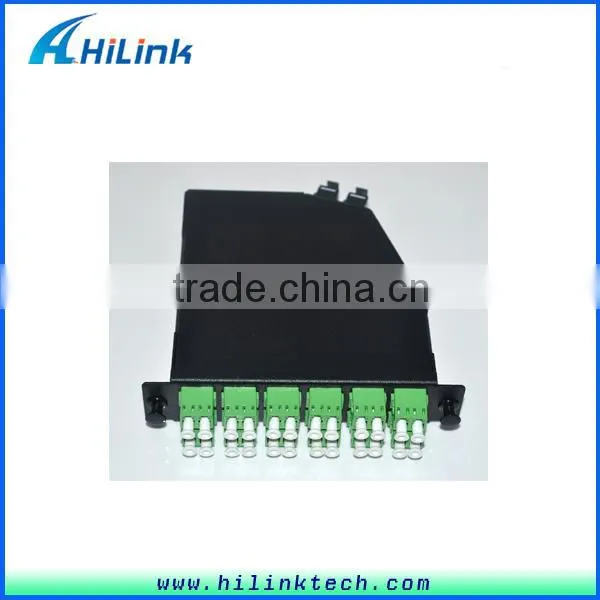

Fiber Optic 24 Fiber Cord MTP/MPO Cassette box
MTP/MPO Cassette box
Features
MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
- Cable array in the cassette can be AB/BA
- Cable array in the cassette can be AB/AB
- MPO trunk lines connecting port is fixed on the back of cassette
- Can be installed in various Modules Type ODF
- Easy to be installed , moved and updated
Applications
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
8. Premise installations.
9. Wide Area Networks(WANs)
Connector requirement
| Multi Mode | Single Mode | ||
| IL | MPO | Single max :0.35db (L) Single Max : 0.60db (G) | Single max :0.35db (L) Single max :0.75db (G) |
| LC | MAX :0.10dB(L) MAX :0.15 db (G) | max :0.30db | |
| RL | MPO | >20DB | >60DB (8 degree Angle Polish ) |
| LC | >30db | >50 db (UPC) >60DB(APC) | |
| Mechanical | MPO | <0.2DB, 200 times insertion | |
| LC | <0.2db, 500times intertion | ||
| Working Temp | -20~ +60 'C | ||
| Enviromental | Storage Temp | -40~ + 70'C | |
| Install Temp | -5~ + 50'C |
|
OM3/OM4 fiber cable, plus the connectors from US Connector
All the production is done in hilink factory facility to ensure the system performance and quality.
Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
- MPO Path Cord
Product picture show
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
