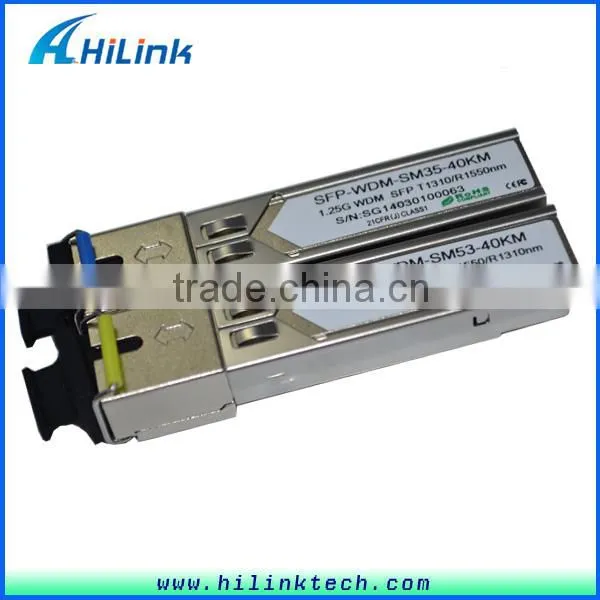

10/100/1000M Fiber WDM SFP Module Port Compatible Huawei Media Converter
- 3000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Haili | Model Number: | HL-Media Converter-xxxxx |
Product Description

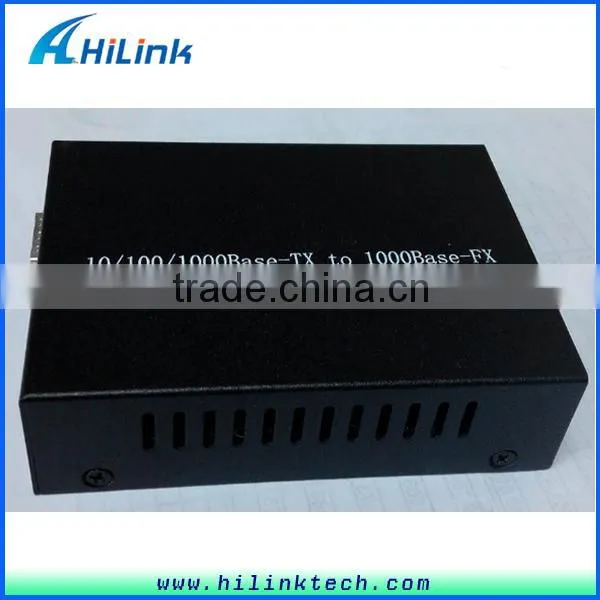

10/100/1000M Media Converter
Media converters can be used in the network to integrate technology, for example between the switch and switch to transport the optic and data. With full-duplex flow control and back pressure 10/100/1000M media converters can extend the distance from 500m, max up to 120km for the device with WDM SFP.
Feature:
1. Support one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX Gigabit Ethernet Fiber port
2. Support 802.3x flow control for full-duplex ports and back pressure for half-duplex ports
3. Support comprehensive types of fiber with different distances and connections, including SC/Bidi/LC and so on
4. Support auto mode on TP port
5. Fully compatible with CISCO, HP, 3COM equipment.
6. Low power consumption design, low heat dissipation for stable working.
7. Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX
8. Support full-duplex and half-duplex, auto-negotiation
9. Support automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
10. Support the transmission of extra-long VLAN packets
11. Support Quality of Service(QoS) and ensuring the transmission of VoIP packets;
12. Support STP to form a redundant network;
13. Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
14. Multi Mode transmission distance: 550M,Single Mode transmission distance: up to 80km
15. Slide-in design optional, can be installed into HT100-2U-16 rack chassis
16. With wall mountable hole for industrial application
17. RoHS compliant
18. LFP(Link fault pass-through) Function,with DIP switch for setting.
Parameter | Specifications |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | multi-mode Dual-fiber: 220m(62.5/125um)/550m(50/125um) single mode Dual-fiber: 20/40/60/80km single mode Single fiber: 20/40/60/80km Category-5 twisted pairs: 100m |
Port | One RJ45 port: Connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC(50, 62.5/125um) Single mode Dual-fiber: SC/FC(9/125um) Single mode Single fiber: SC/FC(9/125um) |
Conversion means | Media conversion |
Delay | <10us |
BER | <10-9 |
MTBF | 100,000 hours |

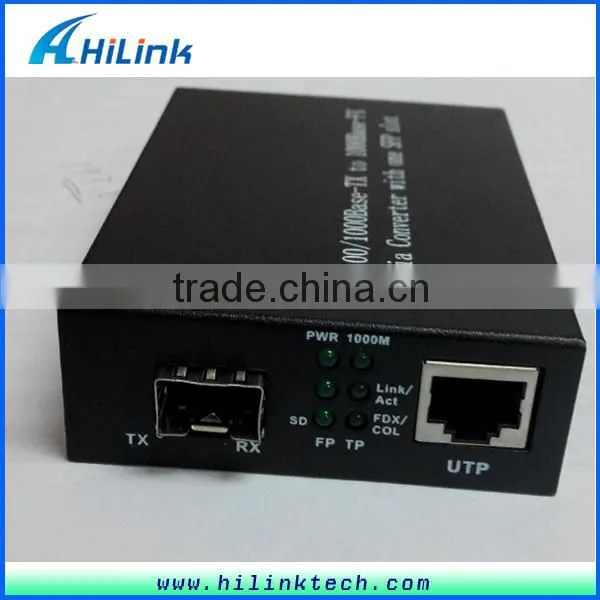

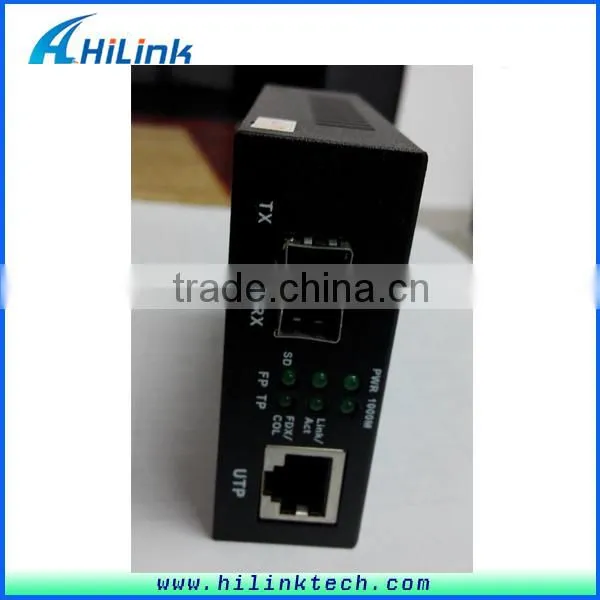

LED indicator | PWR,100M; FXL, 1000M, TX, RX |
Power supply | AC220 0.5A/DC-48(built-in) |
Power consumption | 5W |
Operating temperature | -10~55℃ |
Operating humidity | 5%~90% |
Storage temperature | -40~70℃ |
Maintaining humidity | 5%~90% non-condensing |
Dimensions | 95mm*70mm*25mm(external power supply) |
Computer data transmission network to meet a variety of business needs
Campus broadband network
Order details |
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
OEM/ODM is acceptable, so tell us your requirements.
Compatible Brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Shipment & Payment
International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T/T, Western union, Paypal and so on.
Sales Service |
1.Contact our sales for more details to confirm your order.
2.Short lead time after confirmation.
3.We deliver goods by international Express.
4.Quick response for customers' feedback and other questions.
5.Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years for SFP&Media Converter, 1 year for Muxes warranty(From the date of shipment).
6.Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
7.After-sales service:
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Package details |
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, Media Converter, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
