1x2 Mechanical Optical Switch

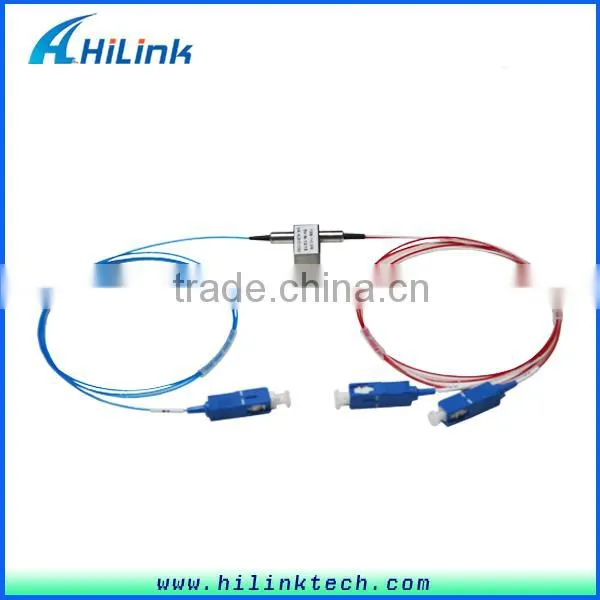

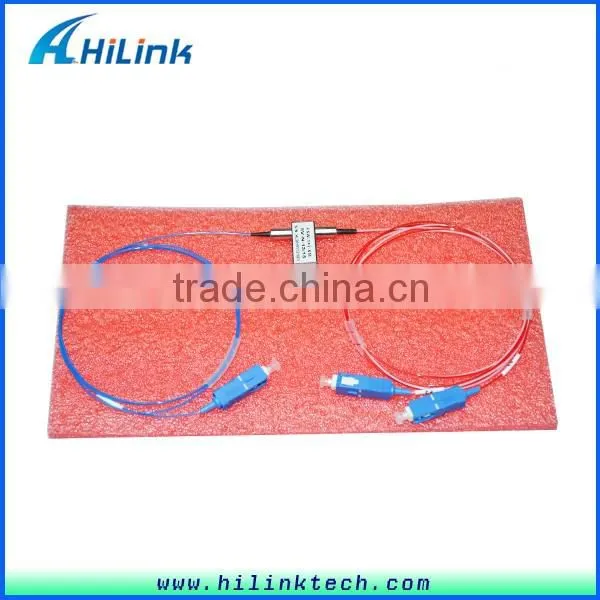

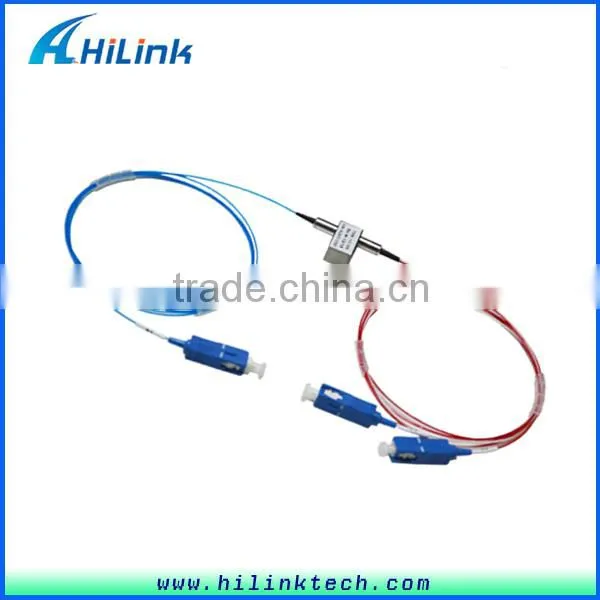

Fiber Connector 1x2 Mechanical Optical Switch
The 1x2 Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Features
Compact design, Miniature size
Short switching time
Bi-directional
Low optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range
Seam-seal package
Highly Stable & Reliable
Epoxy-free on Optical Path
Single mode or Multimode optional
Fail-Safe Latching and Non-latching
Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System

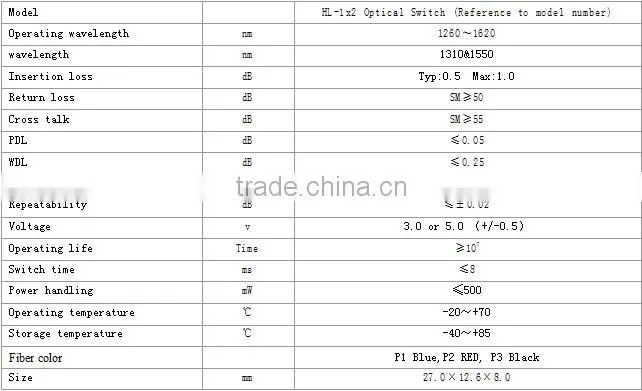

Specification Performance
Our Service:
1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.

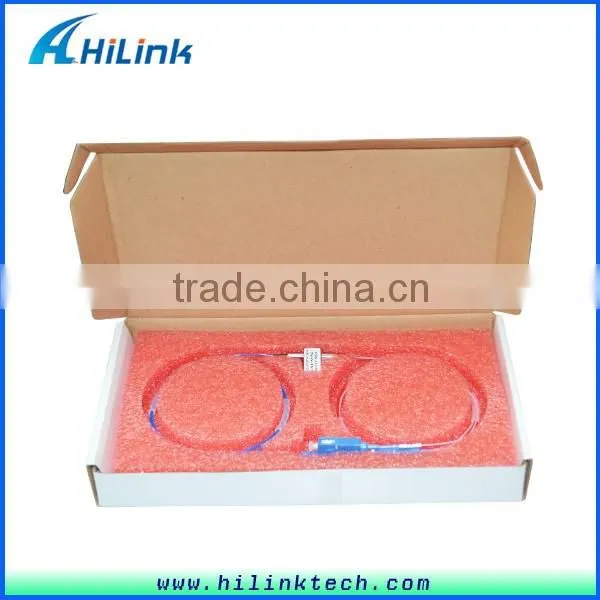

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
Any requirements about CWDM/DWDM Mux/Demux Module, CWDM/DWDM/BiDi SFP/XFP, Xenpak/X2, FWDM and so on.
Send me an inquiry with your requirements directly or add my skype (hilink02) for further information.
