10G 80km DWDM XFP Transceiver

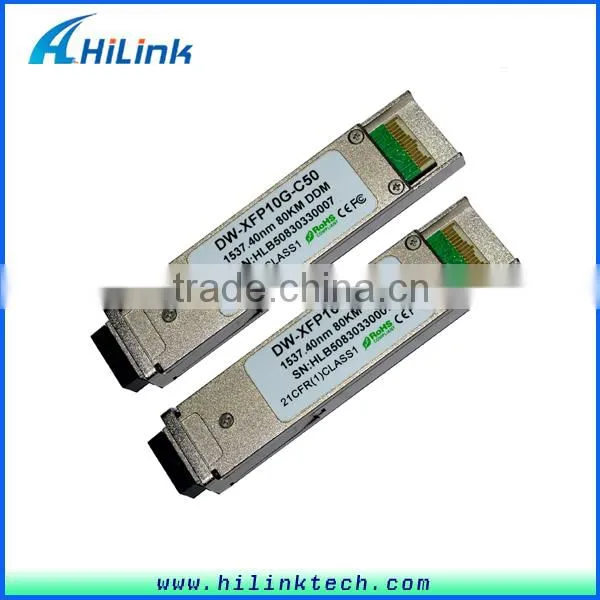

Compatible Cisco Optical Transceiver 10G CH17-CH61 15xx.xxnm 80km ZR DWDM XFP
10G Cooled EML XFP DWDM transceivers are designed for 10G Ethernet 802.3ae and 10G SONET OC-192/SDH STM-64, and it can support data-rate from 9.953Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the XFP MSA.
Features:
Hot pluggable
Support 9.95Gb/s to 11.1Gb/s bit rates
Duplex LC Connector
Below 3.5W power dissipation
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
Temperature-stabilized DWDM-rated EML transmitter and APD ROSA
Up to 80km over SMF
100GHz ITU Grid, C Band
Operating temperature range: 0°C to 70°C
No reference clock requirement
Applications:
DWDM Netorks
SONET OC-192 /SDH STM-64
10GBASE-ZR/ZW
80km 10G Fiber Channel
Standard:
XFP MSA compliant
IEEE802.3ae-2002 compliant
ITU-T G.959 and G.691 compliant
GR-253-CORE compliant
RoHS compliant
| DWDM 10G XFP | 10G DWDM XFP CH17~CH61 40km DDM LC |
| 10G DWDM XFP CH17~CH61 80km DDM LC | |
| 10G DWDM XFP CH17~CH61 100km DDM LC |
SFP/XFP/Xenpak/X2 compatible brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM/DWDM Mux/Demux Module, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
Our Service:
1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
CWDM/DWDM Solutions, BiDi SFP/XFP/Xenpak/X2, CFP2/QSFP, and etc..
Send me an inquiry or add my skype (hilink02) for further information.
