Mining Machine China Disk Feeder

The Disk Feeder is feeding equipment calculated by cubage. It can feed material to the next procedure evenly and continuously. It’s suitable for feeding various non-caking material, not suitable for high flowing property powder material. The following powdery, granular, or small pieces materials are suitable for feeding with disk feeder: ore, coal dust, cement, clinker, limestone, clay, etc

1. Simple Structure
2. Easy to adjust and maintainance.
3. Excellent performance
4. Practical and endurable

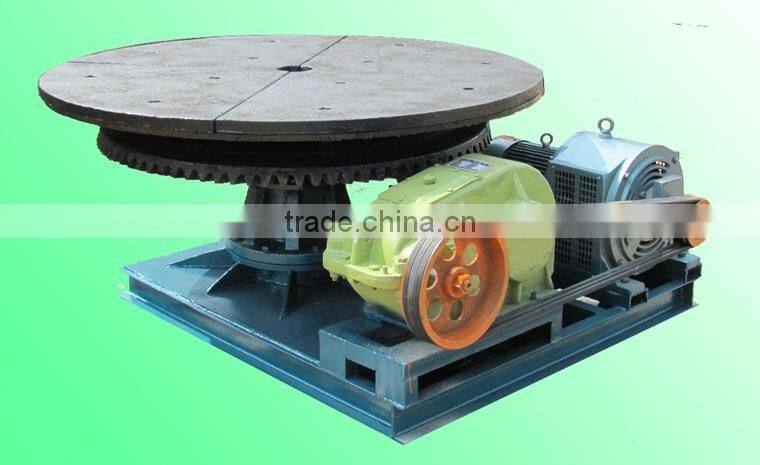

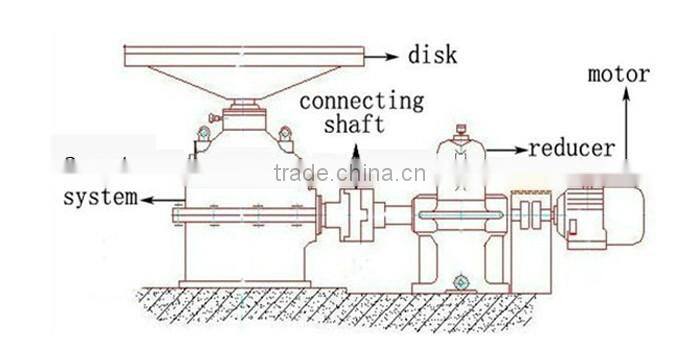

This machine is mainly composed of motor, decelerator, disc, scraper and feeding adjustment devices etc. The disc rotates through the triangle belt, worm reducer, and vertical shaft by the motor. Lower part of the disc set connected with the worm gear reducer, and the upper part connected with steel column of tank by the feed chute. Motor is fixed on the side of the disc set. So the whole disc feeder is under the feed chute. The materials come out from the spiral gate, then come through the feeding pipe and movable sleeve, then arrive at the disc, scrapped by the rotating force and scrapper, the materials flow into the next device.

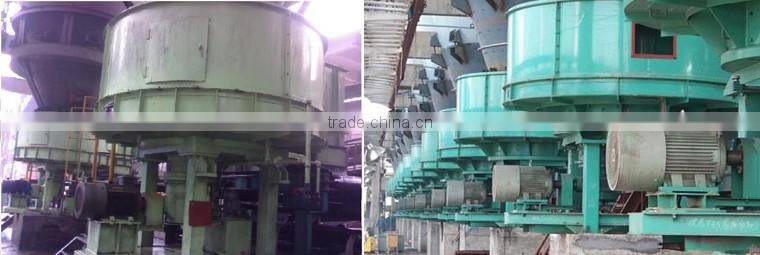

Disk feeder is widely used in ore, coal dust, cement, clinker, limestone, clay industry, etc.

1. What Information should customers give us, So that we can be able to provide you with efficient & suitable quotation and assistance.

* What minerals are you separating?

* What's the maximum size of your raw minerals?

* How much capacity do you need per hour for your project?

Note: If Pics of the mineral & Chemical components report of your minerals are available, pls consider to send us for evaluation purposes.

2. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

3. Can we vist your company?

Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.

4. How long is the warrenty of your equipments? Does your company supply the spare parts?

The warranty period of HENGXING equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.

5. If i need the complete mineral processing line. is HENGXING able to help us build it?

Yes,  we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. we had already build many mining projects in China & Overseas. HENGXING can set a complete processing line just as you require, the main equipments will be manufactured by us and some other supporting equipments ( like generator ) will be supplied by our cooperating facotries under our supervision.
