Glassfiber Sleeving /electrical Sleeve

Name: Glassfiber Sleeving /electrical Sleeve
Brand: HAOXIANG
SKU: 125140021

US$ 0.01 - 1 MOQ: 100 Meters

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HAOXIANG

Model Number:

2715 pvc fiberglass sleeving

Xuchang Haoxiang Insulation Materials Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HAOXIANG

Model Number 2715 pvc fiberglass sleeving

Type Insulation Sleeving

Material Other, Fiberglass, fiberglass pvc

Application Other, Wiring protection and insulation, protection and insulation for wirings

Rated Voltage 1.5-4.0Kv

Specifications

1. 0.5-30mm
2. BDV:1.5KV,2.5KV,4KV
3. Temp.-25-130 degrees Celsiu
4. Protection and insulation
5. Glassfiber sleeving pvc

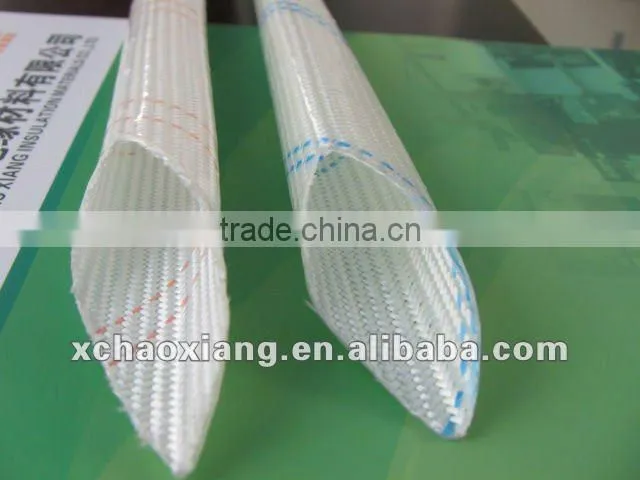

2715 PVC Fiberglass glassfiber Sleeving:

1. Temp. -25-130°C

2. Dia: 0.5-40mm

3. Color: Blue, green, red and straw yellow spiral lines or as per customers' requests.

4. Features: Smooth appreance, felxible body, good dielectric, chemical resistance, super elasticity, antiaging performance.

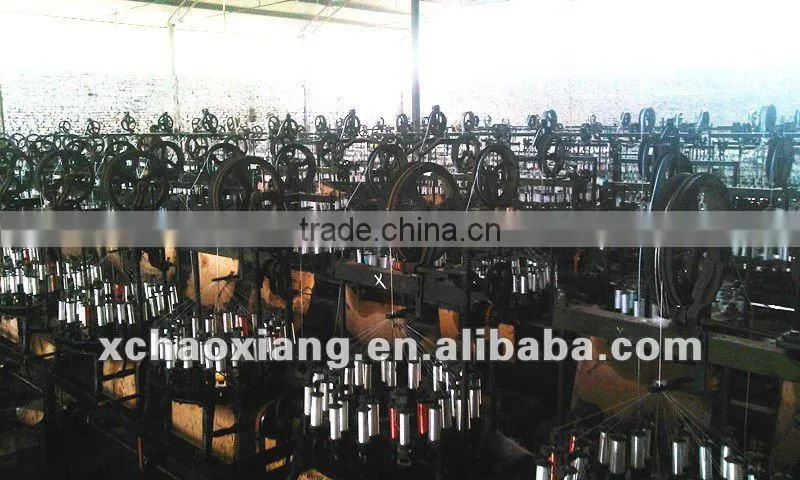

5. Technical Process: Made of non-alkly fiberglass braided sleeving coated with PVC (polyvinyl chloride) resin under high temp.

6. Applications: For wiring , radio, motors, appliances, electric instruments or apparatus and other electric equipment.

7. Breakdown voltage: 1.5kv, 2.5kv, 4kv, 7kv.

8. Packing: 1000mm/piece, 100m/roll.

Property	Requirements
Resistance to soldering heat	Pass (only for sleeving having nominal bore Diameter up to and including 5mm)
Bending after heating	No cracking or detachment of coating shall all be visible after bending around mandrels after 96h at 130°C
Bending at low temperature	No cracking or detachment of coating shall be visible after bending around mandrels while at-25°C
MΩ Insulation resistance	At room temp :103 After damp heat: 101
Flame propagation method A,sec,max	60,in addition,the indicator flag on any of the threetest specimens shall not be burned.
Temperature index	105°C
Breakdown Voltage kv Straight mandrel with 25mm electrode	Room temp	Elevated temp	Damp heat
Central value	4.0	1.2	1.2
Lowest individual value	2.5	0.8	0.8
