China Manufacturing Overhead Power Line Fitting OPGW Dead-end Opgw Earthwire Tension Fittings
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Guanglian
Model Number:
dead-end opgw earthwire tension fittings
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturing Overhead Power Line Fitting OPGW Dead-end Fiber Optic Tension FittingsUS$ 1 - 10MOQ: 1 Set -
China Manufacturing Overhead Power Line Fitting OPGW Dead-end Optical Cable Tension ClampUS$ 1 - 10MOQ: 1 Set
-
China Manufacturing Overhead Power Line Fitting OPGW Dead-end Fiber Cable Tension ClampUS$ 1 - 10MOQ: 1 Set
-
China Manufacturing Overhead Power Line Fitting OPGW Dead-end Opgw Cable Tension ClampUS$ 1 - 10MOQ: 1 Set
-
China Manufacturing Overhead Power Line Fitting OPGW Dead-end Optical Fiber Tension ClampUS$ 1 - 10MOQ: 1 Set
Place of Origin
Hunan, China
Brand Name
Guanglian
Model Number
dead-end opgw earthwire tension fittings
Specifications
dead-end opgw earthwire tension fittings1.OEM manufacturer
2.Enough grip strength
3.ISO 9001:2000
dead-end opgw earthwire tension fittings
Overhead power line fitting OPGW dead-end opgw earthwire tension fittings
| OPGW Tension Clamp |

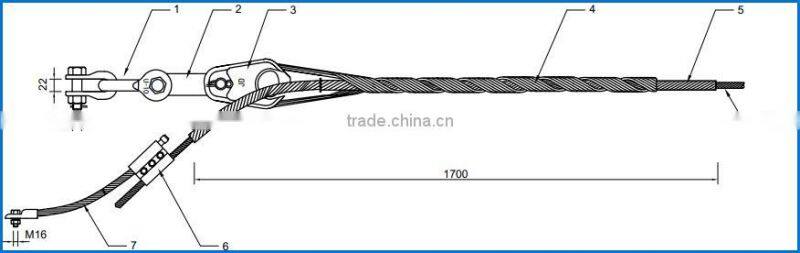

| OPGW Tension Clamp Components | |||||||
| 1 | U-Anchor shackle | Hot-dig galvanized steel | |||||
| 2 | Paraller plate | Hot-dig galvanized steel | |||||
| 3 | Clevis Thimble | Hot-dig galvanized steel | |||||
| 4 | Outer armour rods | Aluminum clad steel | |||||
| 5 | Inner reinforcing armour rods | Aluminum clad steel | |||||
| 6 | Parallel groove clamp | Aluminum Alloy | |||||
| 7 | Earth bonding laed | Aluminum | |||||
| OPGW Tension Clamp Order Notice | |||||||
| 1 | Choose the suitable suspension clamp according to the outer diameter of OPGW cable and RTS.Suitable for long span river,high span valley etc. special place. | ||||||
| 2 | the quantity configuration : 1 set / terminal line tower,2 sets/strain pole tower | ||||||
| 3 | the turning direction of inner preformed wire different from the outer ones, the standard configuration is turning right, if turning left,please note it in the contract. | ||||||
| 4 | suggest to use one time after the clamp afford full strain | ||||||
| 5 | clamp strength:70KN,100KN,120KN,160KN,210KN,250KN,300KN etc. | ||||||

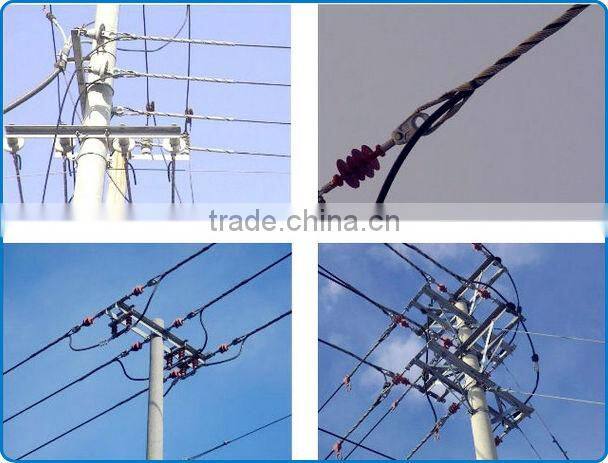

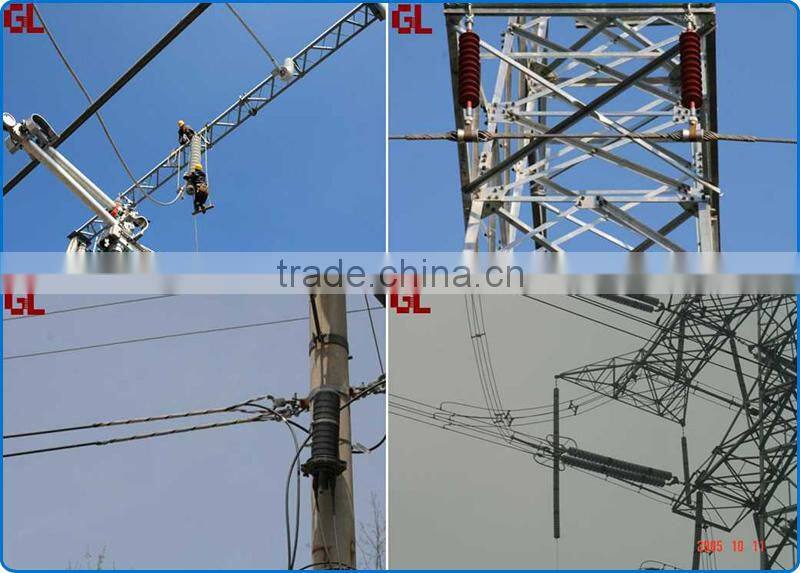

| OPGW Tension Clamp Application |
| OPGW Tension Clamp Specification | |||||||
| Product type | suitable cable diameter (mm) | Inner reinforcing armour rods | Outer armour rods | color | |||
| length (mm) | rods No. | length (mm) | rods No. | ||||
| ONF 1000 xxx | 9.0 - 10.0 | 1400 | 13 | 900 | 6 | red | |
| ONF 1110 xxx | 10.1 - 11.1 | 1500 | 14 | 1000 | 6 | orange | |
| ONF 1220 xxx | 11.2 - 12.2 | 1600 | 15 | 1100 | 6 | yellow | |
| ONF 1330 xxx | 12.3 - 13.3 | 1700 | 16 | 1200 | 6 | green | |
| ONF 1440 xxx | 13.4 - 14.4 | 1800 | 18 | 1300 | 6 | cyan | |
| ONF 1550 xxx | 14.5 - 15.5 | 1900 | 19 | 1400 | 7 | blue | |
| ONF 1660 xxx | 15.6 - 16.6 | 2000 | 20 | 1500 | 7 | purple | |
| ONF 1770 xxx | 16.7 - 17.7 | 2100 | 21 | 1600 | 8 | black | |
| ONF 1880 xxx | 17.8 - 18.8 | 2200 | 22 | 1700 | 8 | red | |

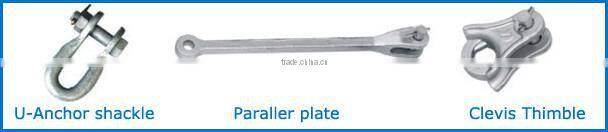

| Ancillary Connection Hardware |
| U-Anchor shackle type | Paraller plate type | Clevis Thimble type | Tensile Strength(KN) | Material | |||
| U-7 | YL 210 070 | NHG-070 | 70 | Hot-dig galvanized steel | |||
| U-10 | YL 210 100 | NHG-100 | 100 | Hot-dig galvanized steel | |||
| U-12 | YL 210 120 | NHG-120 | 120 | Hot-dig galvanized steel | |||
| U-16 | YL 210 160 | NHG-160 | 160 | Hot-dig galvanized steel | |||
| OPGW Tension Clamp Packing Details | |||||||
| Packing | Packed by wooden case. At the bottom of the case is moistureproof linoleum, then covered with waterproof membrane. | ||||||
| Normal tension clamp factory quantity | Standard quantity is 200 or 300 sets with a tolerance of 5% or other required | ||||||
| Tension Clamp Weight | Approx. 5kg per Set | ||||||

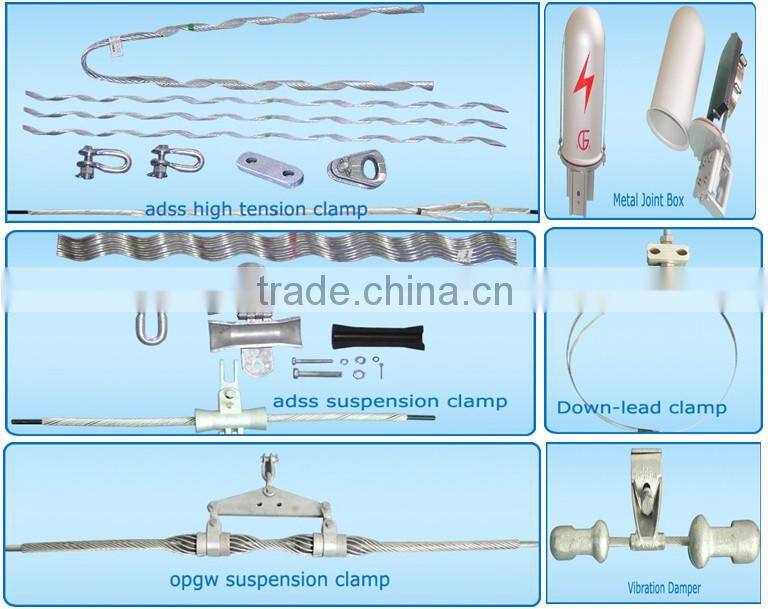

| OPGW Tension Clamp Related Products | |||||||
| OPGW Tension Clamp Certification | |||||||
| OPGW Tension Clamp Network Access License | |||||||
| Contact Us | |||||||
We are waiting for your any calling about OPGW Tension Clamp! Thanks!
