2016 New High Voltage Cable 100m Suspension Clamp
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Guanglian
Model Number:
high voltage cable clamp
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OPGW Insulated Suspension Clamp Electric Cables and Electrical FittingsUS$ 6.5 - 17.32MOQ: 50 Pieces -
OPGW Insulated Suspension ClampUS$ 6.5 - 17.32MOQ: 50 Pieces
-
OPGW Ground Wire Suspension ClampUS$ 6.5 - 17.32MOQ: 50 Pieces
-
2016 Newest China Manufacturing Overhead Cable Adss/opgw High Tension Cable ClampUS$ 1 - 10MOQ: 1 Set
-
2016 Newest China Manufacturing Overhead Cable Adss/opgw Constant Tension Band ClampUS$ 1 - 10MOQ: 1 Set
Place of Origin
Hunan, China
Brand Name
Guanglian
Model Number
high voltage cable clamp
high voltage cable clamp
2016 newest power line dead end high voltage cable clamp
| high voltage cable clamp |

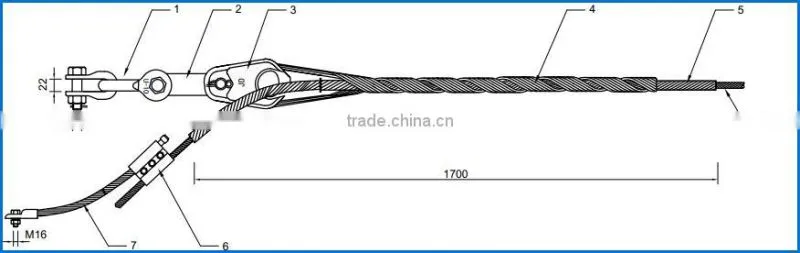

| ADSS Tension Clamp Components | |||||||
| 1 | U-Anchor shackle | Hot-dig galvanized steel | |||||
| 2 | Paraller plate | Hot-dig galvanized steel | |||||
| 3 | Clevis Thimble | Hot-dig galvanized steel | |||||
| 4 | Outer armour rods | Aluminum clad steel | |||||
| 5 | Inner reinforcing armour rods | Aluminum clad steel | |||||
| 6 | Parallel groove clamp | Aluminum Alloy | |||||
| 7 | Earth bonding laed | Aluminum | |||||
| ADSS Tension Clamp Order Notice | |||||||
| 1 | Choose the suitable suspension clamp according to the outer diameter of OPGW cable and RTS.Suitable for long span river,high span valley etc. special place. | ||||||
| 2 | the quantity configuration : 1 set / terminal line tower,2 sets/strain pole tower | ||||||
| 3 | the turning direction of inner preformed wire different from the outer ones, the standard configuration is turning right, if turning left,please note it in the contract. | ||||||
| 4 | suggest to use one time after the clamp afford full strain | ||||||
| 5 | clamp strength:70KN,100KN,120KN,160KN,210KN,250KN,300KN etc. | ||||||

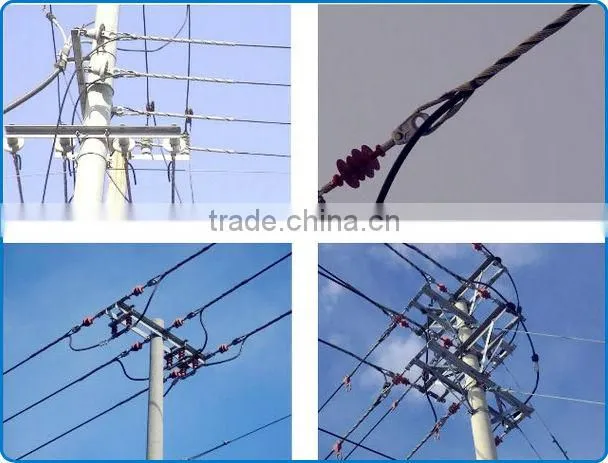

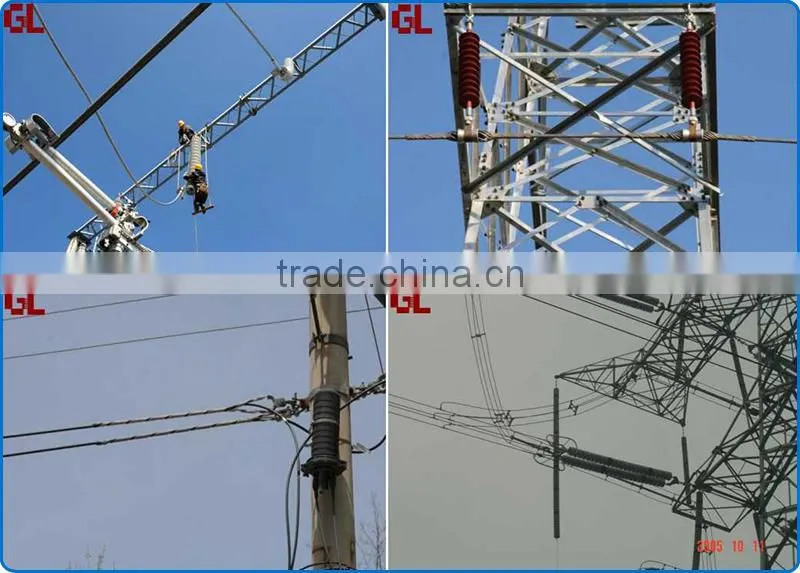

| high voltage cable clamp Application |
| high voltage cable clamp Specification | |||||||
| Product type | suitable cable diameter (mm) | Inner reinforcing armour rods | Outer armour rods | color | |||
| length (mm) | rods No. | length (mm) | rods No. | ||||
| ONF 1000 xxx | 9.0 - 10.0 | 1400 | 13 | 900 | 6 | red | |
| ONF 1110 xxx | 10.1 - 11.1 | 1500 | 14 | 1000 | 6 | orange | |
| ONF 1220 xxx | 11.2 - 12.2 | 1600 | 15 | 1100 | 6 | yellow | |
| ONF 1330 xxx | 12.3 - 13.3 | 1700 | 16 | 1200 | 6 | green | |
| ONF 1440 xxx | 13.4 - 14.4 | 1800 | 18 | 1300 | 6 | cyan | |
| ONF 1550 xxx | 14.5 - 15.5 | 1900 | 19 | 1400 | 7 | blue | |
| ONF 1660 xxx | 15.6 - 16.6 | 2000 | 20 | 1500 | 7 | purple | |
| ONF 1770 xxx | 16.7 - 17.7 | 2100 | 21 | 1600 | 8 | black | |
| ONF 1880 xxx | 17.8 - 18.8 | 2200 | 22 | 1700 | 8 | red | |
| Ancillary Connection Hardware |
| U-Anchor shackle type | Paraller plate type | Clevis Thimble type | Tensile Strength(KN) | Material | |||
| U-7 | YL 210 070 | NHG-070 | 70 | Hot-dig galvanized steel | |||
| U-10 | YL 210 100 | NHG-100 | 100 | Hot-dig galvanized steel | |||
| U-12 | YL 210 120 | NHG-120 | 120 | Hot-dig galvanized steel | |||
| U-16 | YL 210 160 | NHG-160 | 160 | Hot-dig galvanized steel | |||
| high voltage cable clamp Packing Details | |||||||
| Packing | Packed by wooden case. At the bottom of the case is moistureproof linoleum, then covered with waterproof membrane. | ||||||
| Normal tension clamp factory quantity | Standard quantity is 200 or 300 sets with a tolerance of 5% or other required | ||||||
| Tension Clamp Weight | Approx. 5kg per Set | ||||||

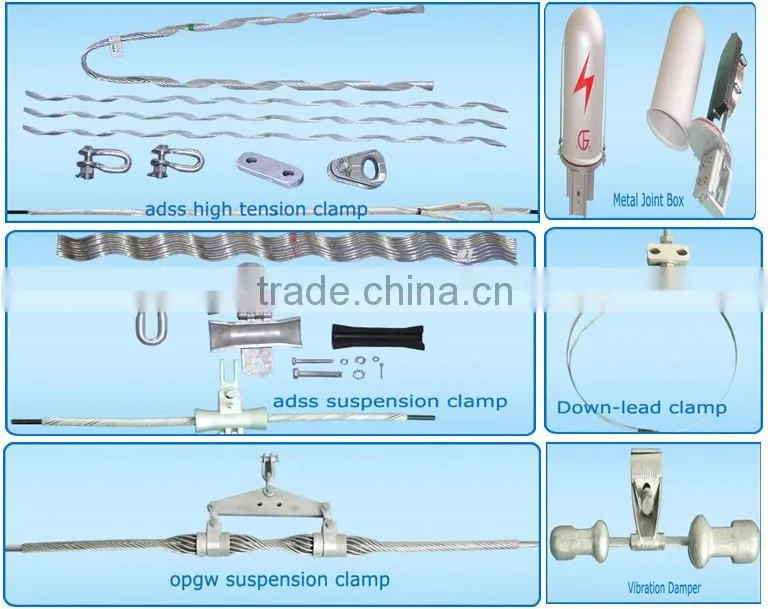

| high voltage cable clamp Related Products | |||||||
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
♦ For more information. please visit our website:
|
|
Contact us
- Website:
- Contact: Mr Tim
- Tel: +86-731-85501765
- Fax: +86-731-89722708
- Address: No.318 Xizi,Wanjiali Road,Yuhua District,Changsha.Hunan,China,410007
- Skype: opticfiber.tim
- Whatsapp: +86 186 7071 5192
- Email: timoptic(at)/ tim(at)
