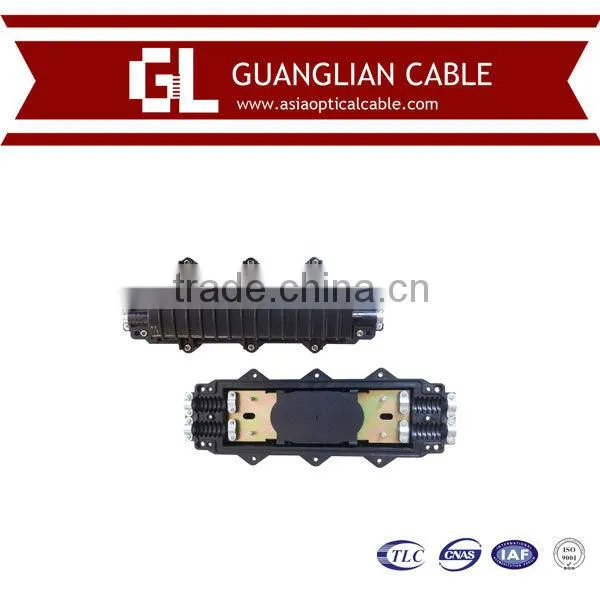

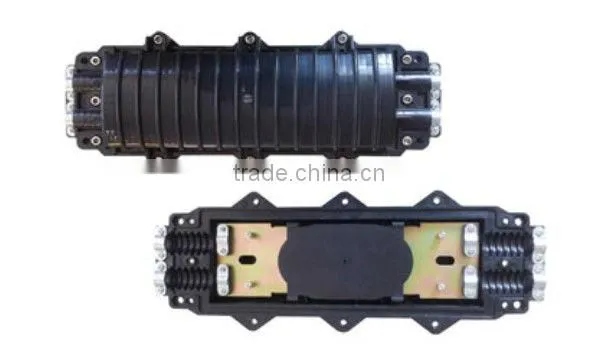

Help Center140core Fiber Optic Splice Closure
Related Products
-
24 Port ST/SC/LC Fiber Optic Patch PanelUS$ 6 - 10MOQ: 5 Sets -
Suppy Samples of Indoor 2ports 2/4/6/8/12/24core Plastic Terminal BlockUS$ 6 - 10MOQ: 5 Sets
-
Supply Samples of Indoor 2ports 2/4/6/8/12/24core Plastic Fiber Distribution BoxUS$ 6 - 10MOQ: 5 Sets
-
Supply Samples of Indoor 2ports 2/4/6/8/12/24core Plastic Optical Fiber Distribution BoxUS$ 6 - 10MOQ: 5 Sets
-
China Superior Packing Quality 16 Core Optical Terminal BoxUS$ 6 - 10MOQ: 5 Sets
Specifications
1)fiber optic splice closure2) 144/288 core capacity splice
3)mechanical sealing type
4) custom made
Fiber optic splice closures are for outdoor use fiber optic cable management and they provide space for the outdoor fiber optic cables to be spliced together. The fiber splice closures are made of special industrial plastic that is high tension and good performance of thunder proof as well as reliable sealing ability; they are also optimized to resist aging of material because of the factors in the natural environment like ultraviolet ray. supply a wide range of fiber optic splice enclosures for ribbon cable and round cables with high quality.This fiber optic splice joint closure up to 144core capacity .
Technical Parameter:
1) Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2) Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥40mm. Low optical loss
Order information
| Type | Fibers |
Max Capacity (Single Core) |
No. of Splice Tray |
No. of Cable Ports |
Sealing Structure |
Suitable Dia. Of Cable (mm) |
Dimensions | Weight (kg) | Material |
| /Tray | (mm) LxWxH | ||||||||
| GL -FOSC-G090 | bunch 12/ribbon 24 | 120 | 6 | 2 |
mechanical sealing |
8-20 | 450*170*100 | 2 | ABS |
| GL -FOSC-G091 | bunch 12/ribbon 24 | 120 | 6 | 2 |
mechanical sealing |
8-20 | 450*170*100 | 2.3 | PPR |
| GL -FOSC-G092 | bunch 12/ribbon 24 | 288 | 6 | 2 |
mechanical sealing |
8 – 23 | 370*155*120 | 1.9 | ABS |
| GL -FOSC-G094 | bunch 12/ribbon 24 | 288 | 6 | 4 |
mechanical sealing |
8 – 23 | 370*155*120 | 1.9 | ABS |
| GL -FOSC-G096 | bunch 12/ribbon 24 | 288 | 6 | 3 |
mechanical sealing |
8 – 23 | 370*155*120 | 2 | ABS |
| GL -FOSC-G098 | bunch 12/ribbon 24 | 144 | 6 | 4 |
mechanical sealing |
8 – 17 | 390*200*110 | 2.3 | PPR |
| GL -FOSC-G100 | bunch 12/ribbon 24 | 144 | 6 | 3 |
mechanical sealing |
8 – 17 | 390*200*110 | 2.3 | PPR |
| GL -FOSC-G102 | bunch 12/ribbon 24 | 144 | 4 | 2 | mechanical sealing | 8 – 17 | 390*200*110 | 2.3 | PPR |

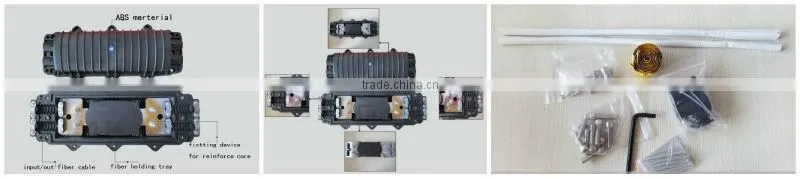

Details for fiber optic splice clocure :
