1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice

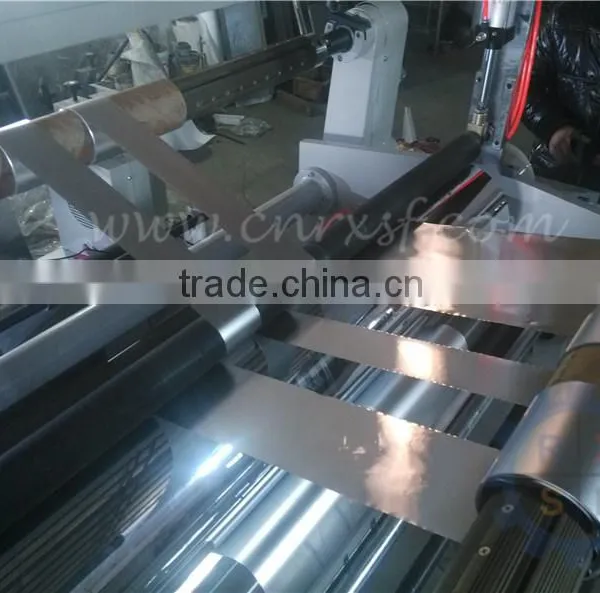

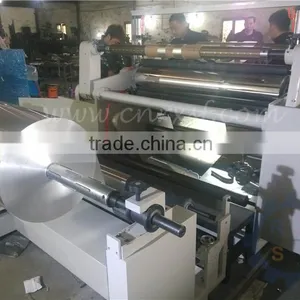

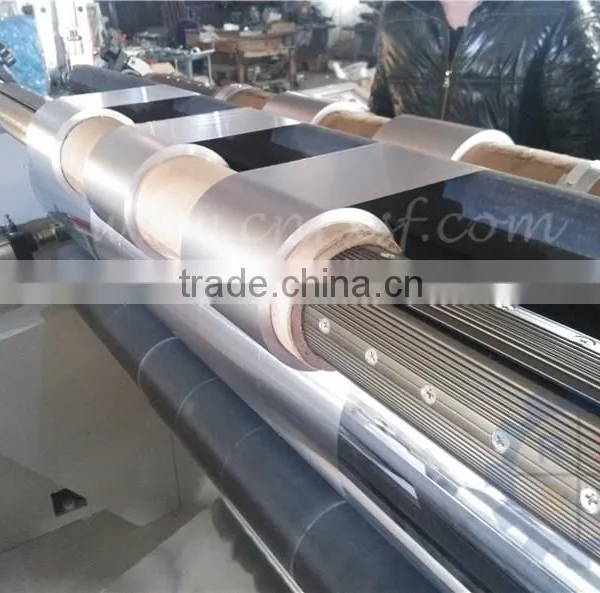

1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-1
1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-2
1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-3
1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-4
1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-5
1300mm Aluminum Foil Slitter Rewinder Machine Supplier's Choice photo-6
US$ 25,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical
Packaging Type Foil
Packaging Material Other, Aluminum foil
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 380V/50HZ
Power 7.5kw
Place of Origin Zhejiang, China
Brand Name RXSF
Model Number Foil 1300
Weight 3500kg
Dimension(L*W*H) 2.2*1.8*1.1 M
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

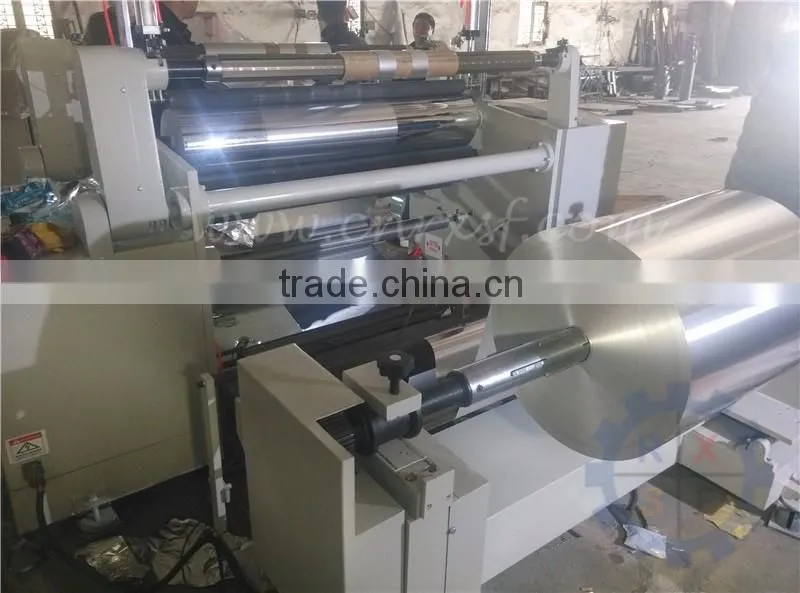

1300mm Aluminum foil slitter rewinder machine
Aluminum foil slitter rewinder machine
1300mm model, 170m/min for foil, 220m/min for film & paper
Flat blades & round blades, min slit to 5 mm
High-end configuration, especially for Aluminum foil

Product Description




1.Main Technical Parameters



Model 1300 Remark
Material Width(mm) 1250 Effective
Unwinding diameter(mm) 1000 Customize
Rewinding diameter(mm) 450 Customize
Inner diameter of unwinding&rewinding(mm) 26-76 (1-3 inch) Customize
Slitting precision(mm) <0.5
Minimum slitting width(mm) 5
Speed(m/min) 10-170 for foil
10-220 for film & paper

Slitting blades type Straight/ circular
Total power(kw) 7.5
size(M) 2.2×1.8×1.1
Weight(kg) 3500



2.Comprehensive Description

Surface rolling type Aluminum foil slitter rewinder machine is our high-end products. This machine use cast steel structure, 30mm solid steel wall, to protect high-speed and stable operation. For aluminum foil, we use special processing Bedknife, and mirror surface central impression, to ensure neat edge. PLC system integration of taper tension control, rolling effect even better than unwinding.
For aluminum foil, the minimum slitting width is 15 mm, other flexible material is 5 mm.


3. Product Features



(1) Cast steel structure, 30 mm solid steel wall to ensure heavy load
(2) Automatic meter counter (support automatic stop when reach the setting meters), failure alarm and waste edge collection
(3) Magnetic brake unwinding, magnetic clutch rewinding, the main motor speed control by the inverter
(4) Automatic photoelectric web guide, PLC taper tension control
(5) PLC touch screen operation, easy to operate, saving manpower


4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.
2. We provide customized manufacture according to customer demand.
3. manufactured in accordance with European CE safety standards.

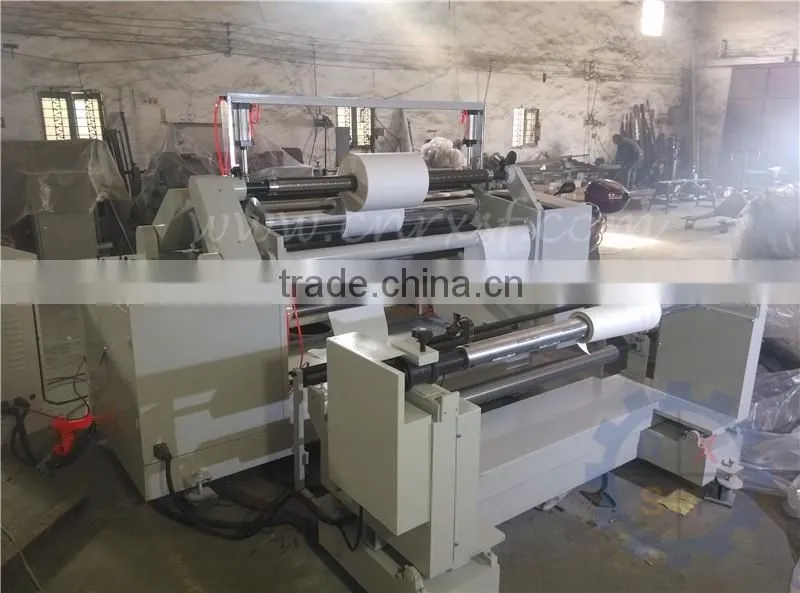

A. Cast steel structure, 30 mm solid steel wall to ensure heavy load
:

1300mm Aluminum foil slitter rewinder machine

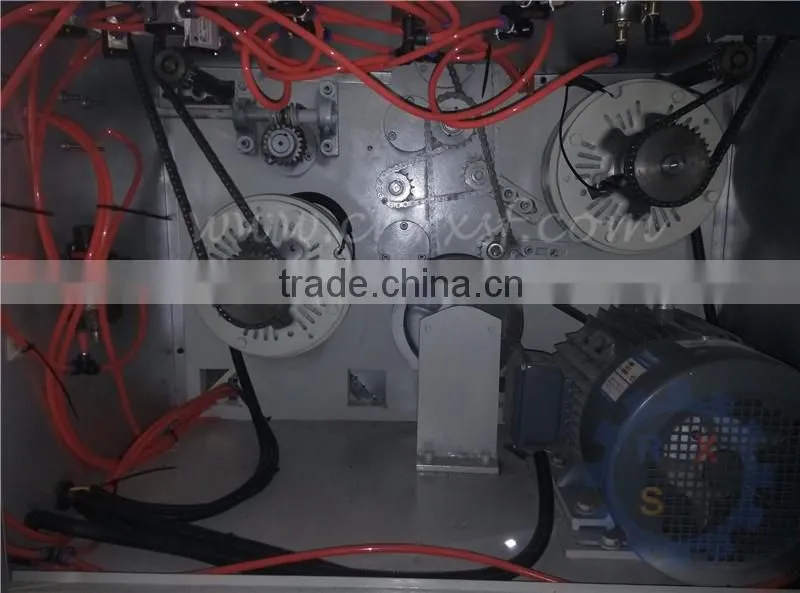

B. The main motor use Siemens 5.5 kilowatts inverter motor, unwinding / winding by Mitsubishi 10 kg magnetic powder brake / clutch:


1300mm Aluminum foil slitter rewinder machine

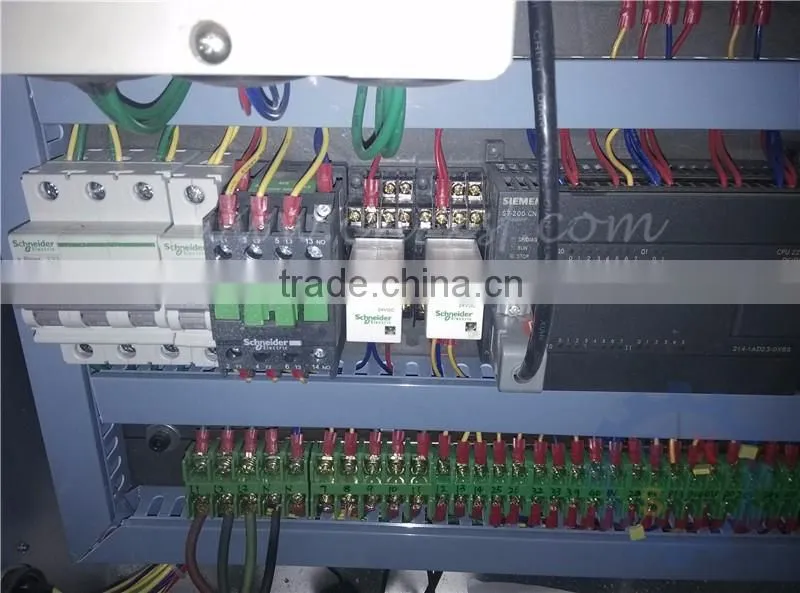

C. Siemens PLC control (including Siemens taper tension control), Yaskawa inverter, Schneider General Electric:


1300mm Aluminum foil slitter rewinder machine

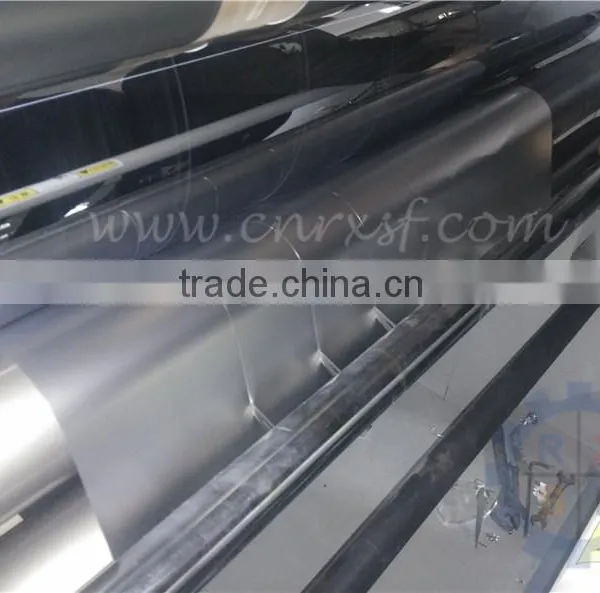

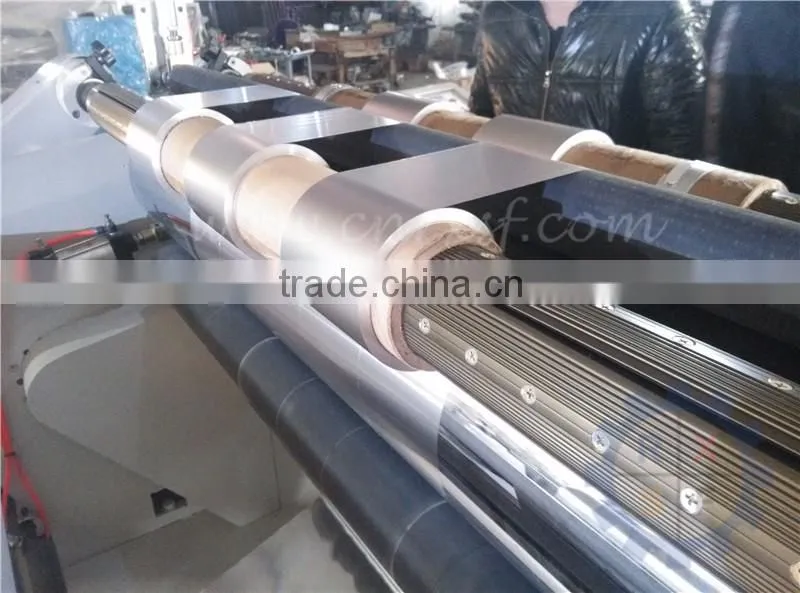

D. German imports of high-speed steel blades, specially designed bed knife, winding neat as mirror-like:


1300mm Aluminum foil slitter rewinder machine

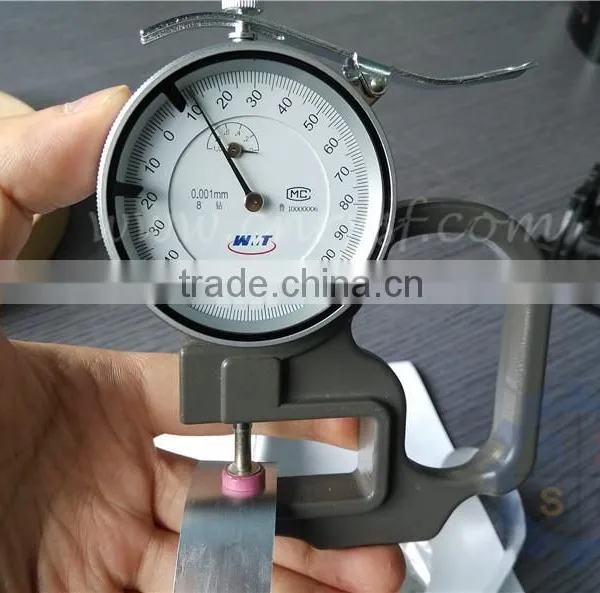

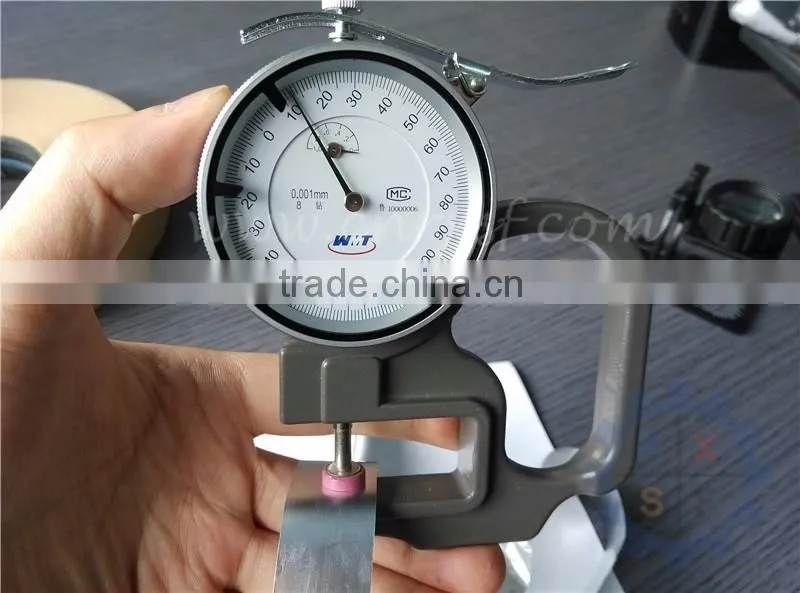

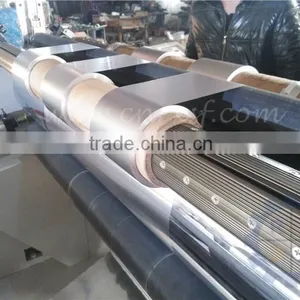

E. We tested the most common flexible packaging foil, 12 microns thick, H18 alloy state, slitting effect is very good:


1300mm Aluminum foil slitter rewinder machine

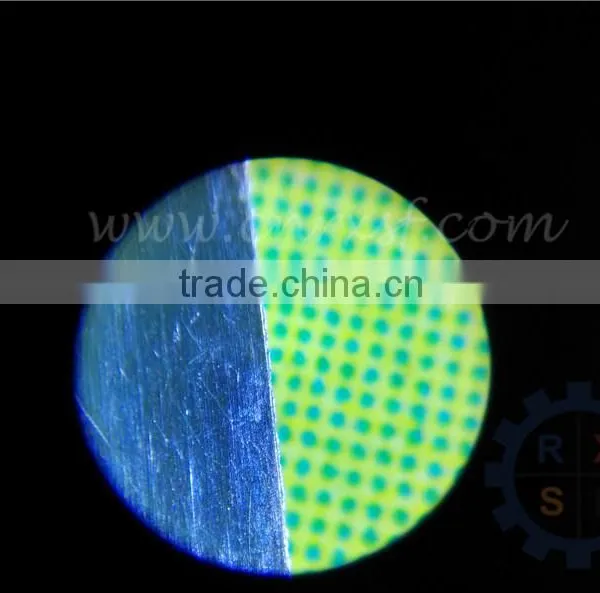

F. Slitting edge effect, at 100 times the magnifying glass:

1300mm Aluminum foil slitter rewinder machine


Through this link, to view the video of the machine running:
https://youtu.be/QI3jdY5fXIA

Packaging & Shipping






5. Packaging and shipping

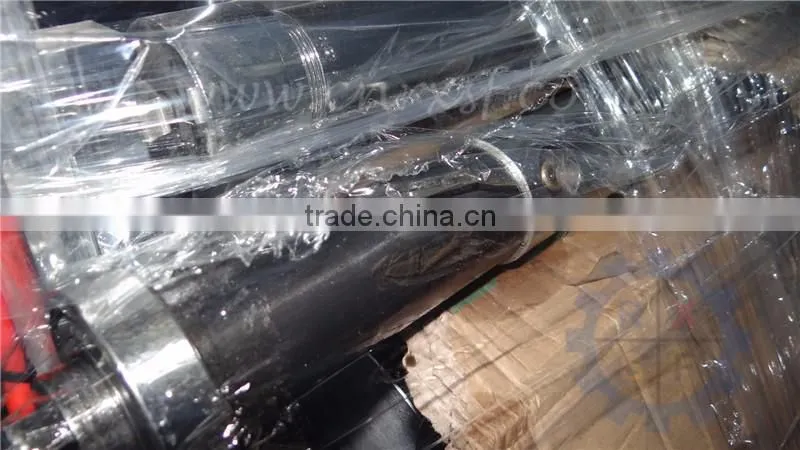

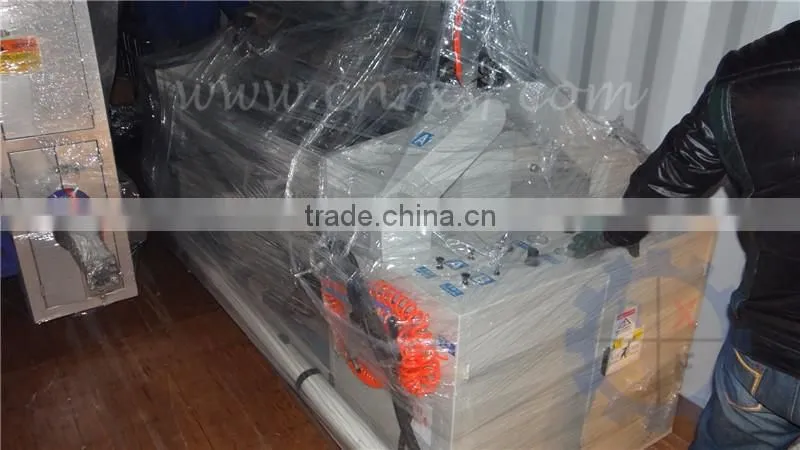

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:

1300mm Aluminum foil slitter rewinder machine

B. Spare parts and wearing parts using separate packages:

1300mm Aluminum foil slitter rewinder machine

C. We offer wooden case or wooden pallets packaging, according to customer requirements:


1300mm Aluminum foil slitter rewinder machine
Our Services





6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

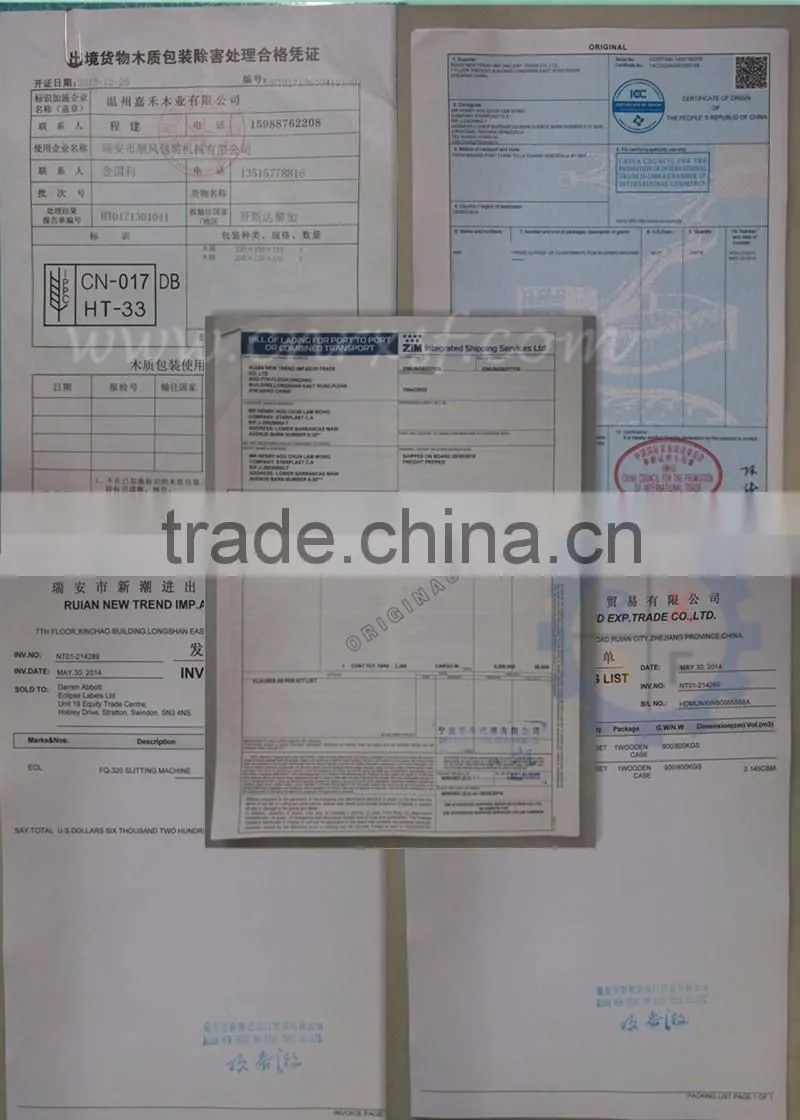

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:

1300mm Aluminum foil slitter rewinder machine
