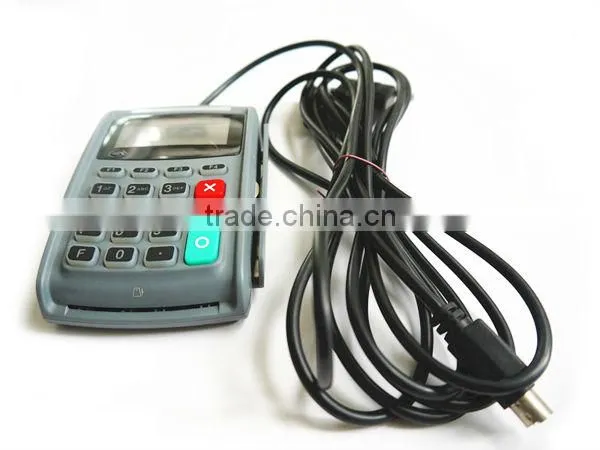

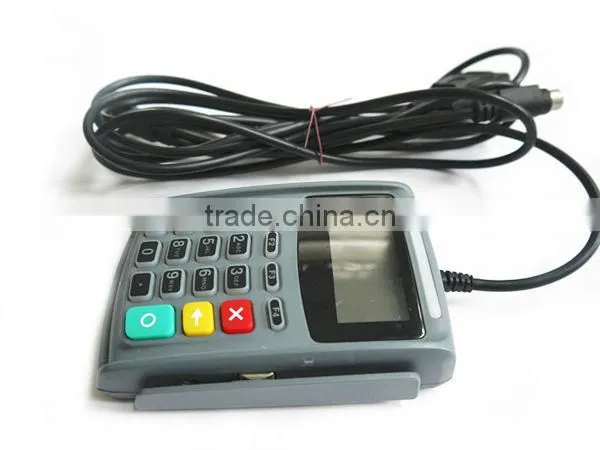

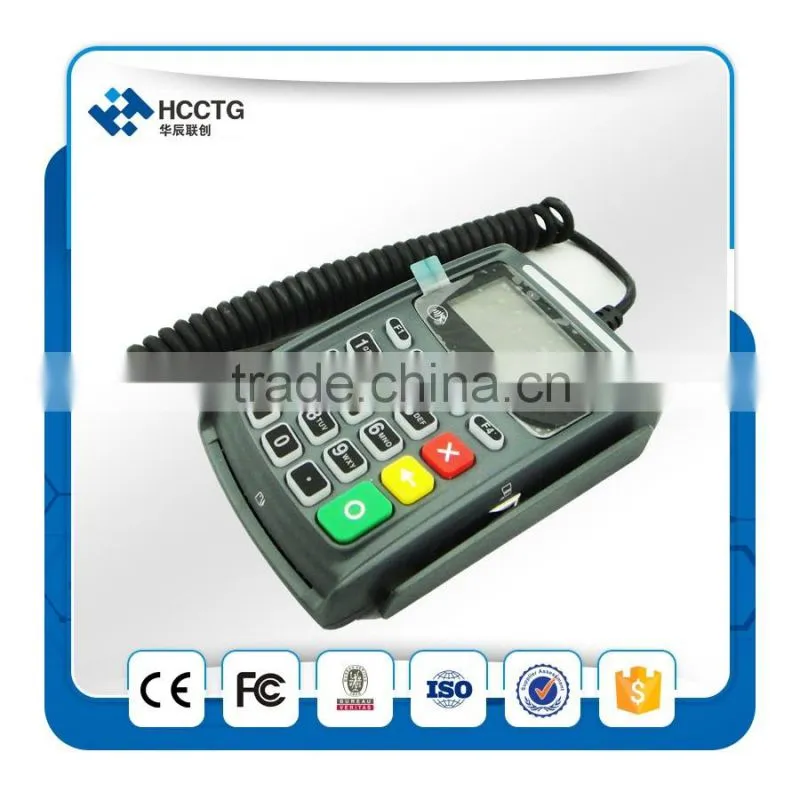

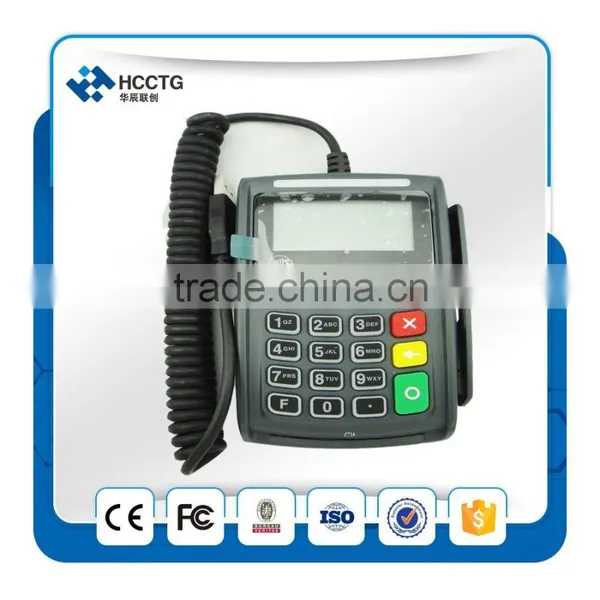

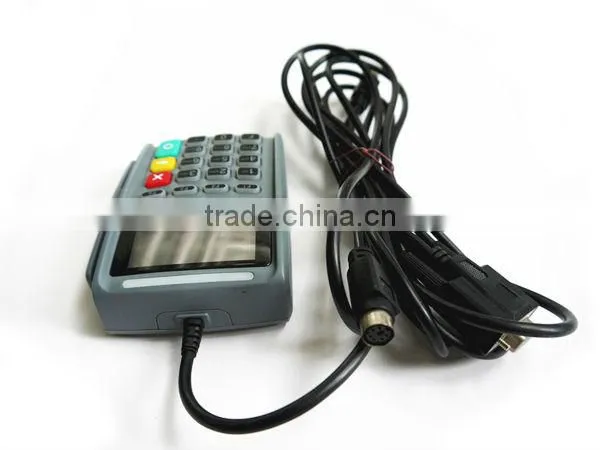

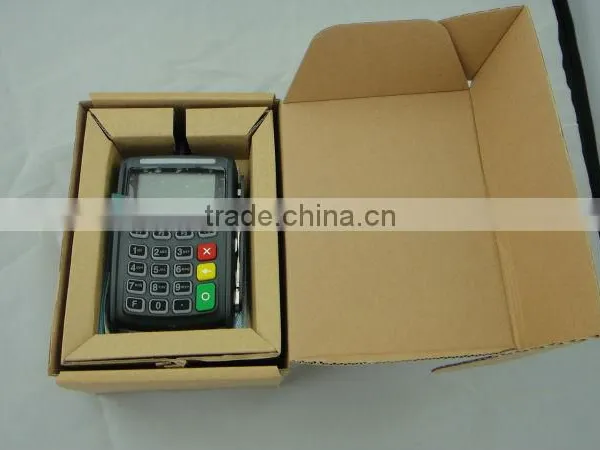

E4020N E-Payment Pinpad security POS terminal with free SDK
General
MIS-POS and pin entry device with card readers of different modes. Can be connected with POS,ECR, PDA CRT cash register, or telephone POS terminal to enhance transaction security.
Feature
Ÿ Ergonomic design with large screen and keys
Ÿ Integrated PIN pad, magstripe card and IC card reader
Ÿ Works with PC, ECR, PDA or POS
Ÿ Handheld or desktop usage
Ÿ A single unit to complete the whole transaction process
Specification
Display |
128 x 64 pixel backlit LCD graphical display, 4 lines and up to 21 characters, large font |
Keypad |
20 large, hard rubber keys, including 4 function keys |
Communications |
USB and serial connectivity |
Power supply |
serial port 6-16V DC 0.5A USB: 5V DC +/-5% |
Magnetic card |
Track 1/2/3 |
Contact IC Card |
ISO7816 1,2,3; EMV Level I,II; PBOC Level I,II |
Security |
PCI 3.0 Approved, Master/Session and DUKPT key management |
Dimensions |
146 mm*79 mm* 30 mm* (L*W*H) |
Operating temperature range |
0 - 40º C (32º to 104º F) |
Operating humidity |
5% - 90% |
Approval
Ÿ PCI 3.0
Ÿ Pin Input Device Security Certification for terminals accepting CUP cards
Ÿ EMV
Ÿ Master/Session and DUKPT key management
