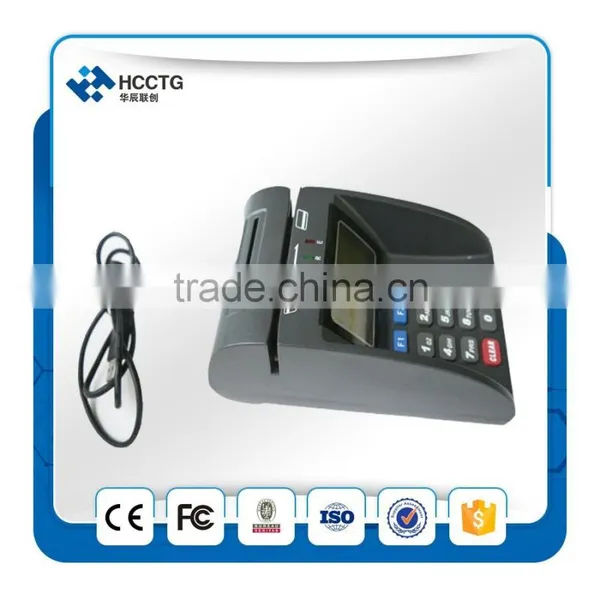

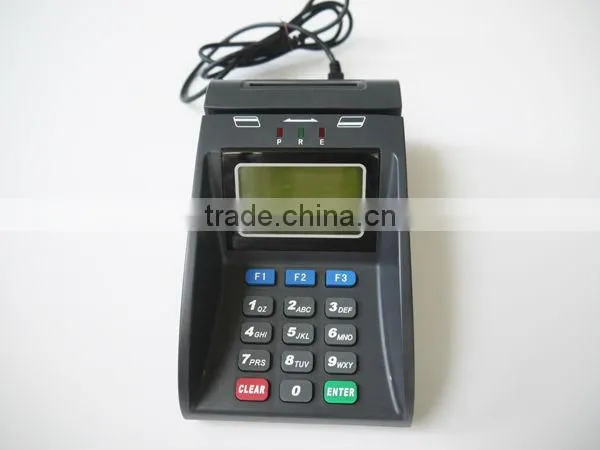

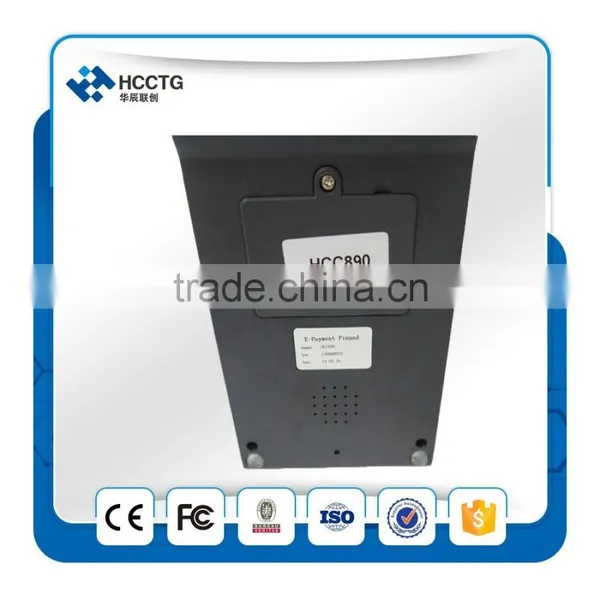

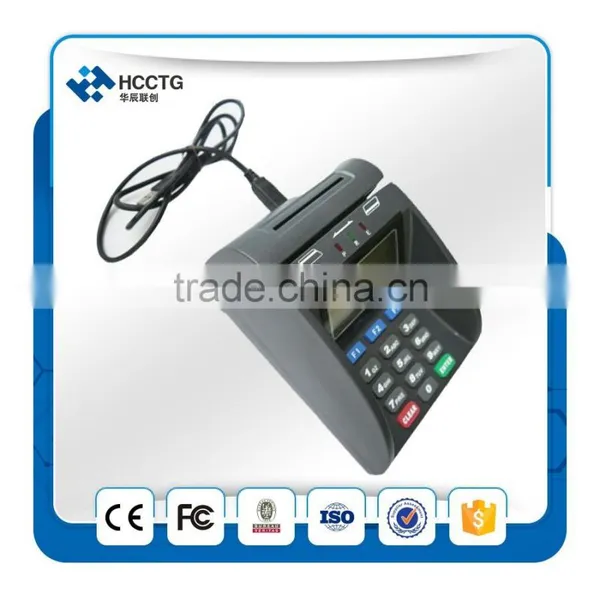

HCC890 USB Encrypted E Payment pinpad
HCC890 is a multifunction Pinpad which perfectly combine the magnetic card reading, IC card / SAM card reading & writing, contactless card reader/writer and also customer personal information & password entry.
HCC890 has compact and refined appearance to save counter space, ergonomically design and user-friendly for operation, reliable performance and flexible application to ensure highly secure service. It is much suitable for bank network, insurance, medical treatment, tariff and POS system.
Structure: 15-key keypad, 4-line graphic LCD display , 1 * magnetic reader, 1 * IC card reader & writer, 1* Contactless card reader/writer and up to 4* SAM card wedge (at option).
Features for HCC890 Factory Security Pinpad
- 15 key include general number input 0-9, ENTER , CANCEL and 3 other functional keys;
- LCD graphic display and beep indication With internal DES module (3DES module available), realize data transfer and authentication under encryption
- Encryption support DUKPT & Master/Session Key, compatible with
- ANSI X9.24
- PC/SC, T=0 and T=1 compatible
- Self-destroyed against violation
- Provide DEMO drive program and tools for further development in Windows.
Specification for HCC890 Factory Security Pinpad
LCD graphic display |
128×64 dots, display 16×2 characters at optional |
Keypad |
15 key, include 10 numeric key 0-9, ENTER , CANCEL and 3 function key |
Magnetic reader |
Bi-directional reading track 1/2/3 of magnetic card complied with ISO-7811/7816 ( Dual magnetic head design at optional) |
IC card reader/writer |
IC card wedge, also read memory card & CPU card, internal 1-4 SAM card wedge available at option. |
Contactless card reader/writer |
ISO 14443 Type A/ B protocol |
Keypad encryption |
DES/3DES & DUKPT |
Communication Interface |
Standard RS232 interface or USB interface available at option |
Power supply |
RS232 interface: P4 power connector supply DC+12V, (AC 90 ~ 250V) USB interfaceUSB interface supply DC+12V, or fetch power from USB directly; |
Dimension |
180×110×55mm |
Weight |
600g |
Working environment |
-1060, 2098 RH, noncondensing |
