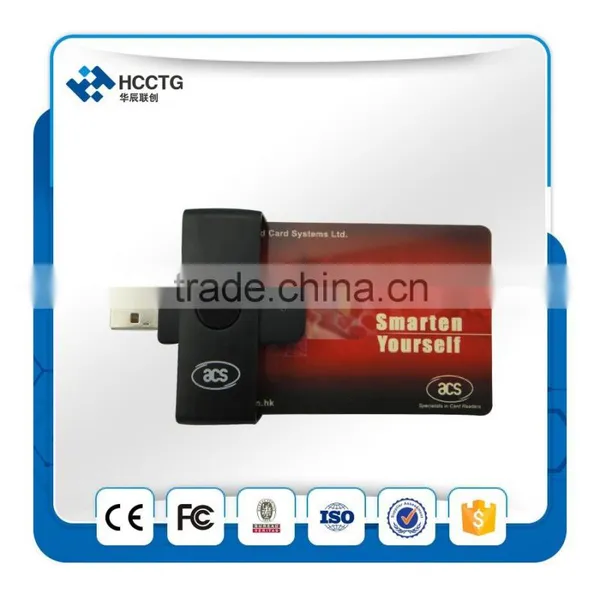

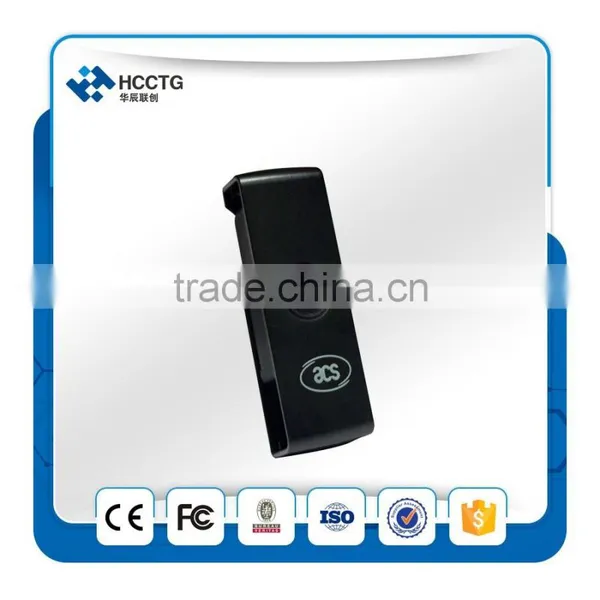

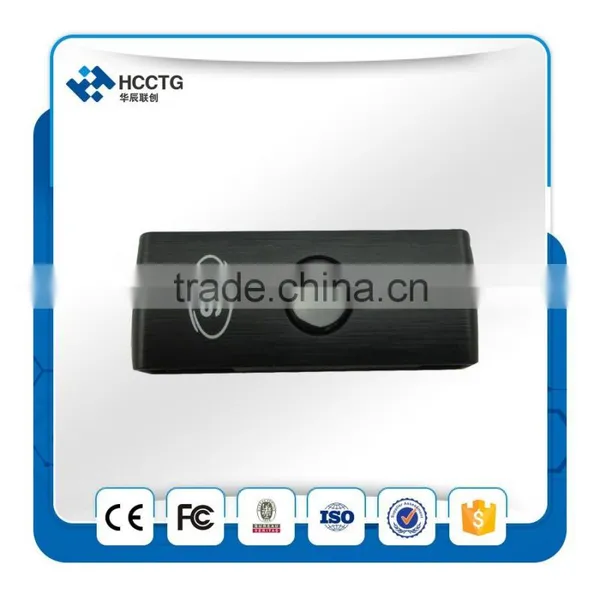

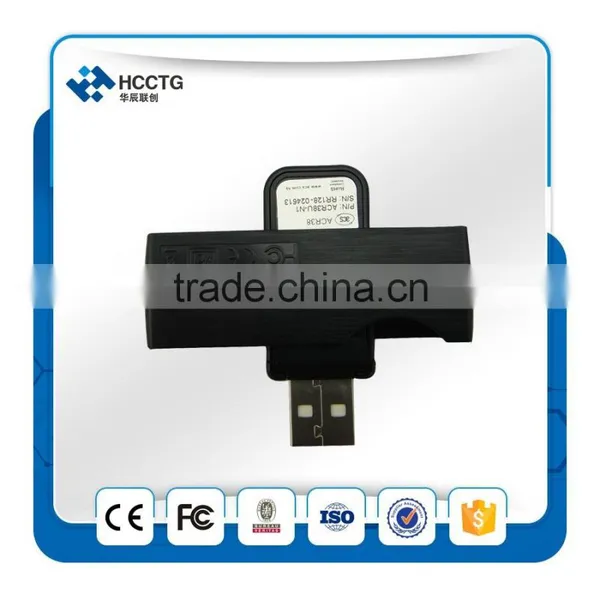

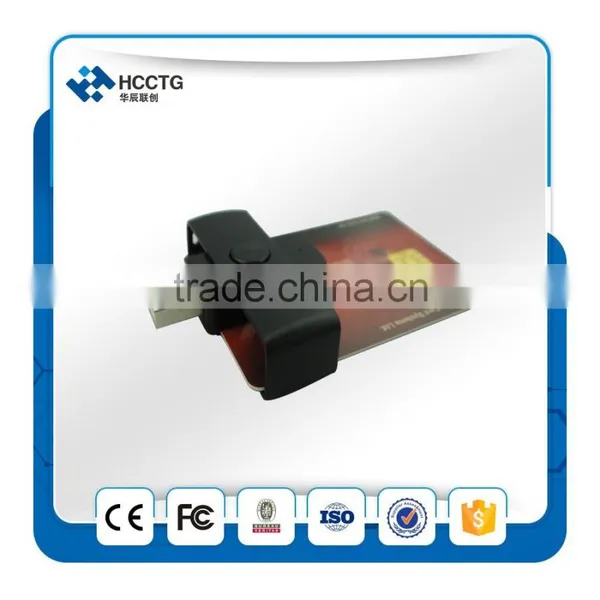

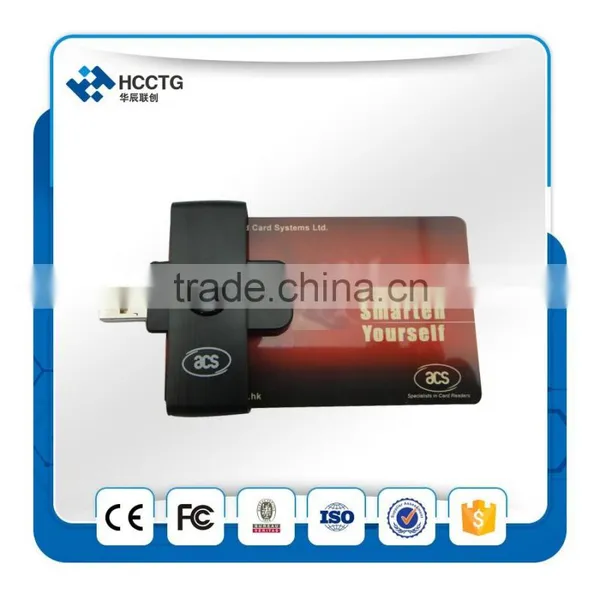

Exceptional RoHS Compliant USB2.0 Pocket Mate Superior Contact IC Chip Card Reader/Writer-- ACR38U
US$ 20 - 25
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ACS Superior IC Chip card reader
Model Number:
ACR38U Superior IC Chip card reader
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RJ12/RJ11Three Locks Cash Drawer Flip Top With Pos Thermal Receipt Printer----HS410E Quality ChoiceUS$ 25 - 35MOQ: 1 Unit -
Usb Port 60 Keys Programmable POS Bluetooth Keyboard for Android--KB60US$ 50 - 53MOQ: 1 Unit
-
Mini Handheld 58mm Thermal Label Pos Receipt Printing Machine--MPT-IIUS$ 105 - 115MOQ: 1 Unit
-
China RJ12 & RJ11 Adjustable Portable Cash Box Drawer With Two Keys--HS170US$ 30 - 34MOQ: 1 Unit
-
HS-170 Small POS Cash Drawer With Inserting CabnetUS$ 18 - 20MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ACS Superior IC Chip card reader
Model Number
ACR38U Superior IC Chip card reader
RoHS Compliant USB2.0 Pocket Mate Contact IC Chip Card Reader/Writer-- ACR38U
General
- Ø Due to the rising demand of e-working methods (remote office, home office...) and the increasing risk of unauthorized access to private network, it is time to properly secure access to PCs, desktops, and the Intranet and Extranet networks. ACR38 offers solutions based on smart card readers (connected to PCs) for access control.
- Ø The ACR38Usmart card reader/writer is a USB full speed device whichthe interface is for communication between a computer and a smart card. It is designed for the PC environmentand is the ultimate smart card peripheral for a PC.
- Ø ACR38U is a key partner of the PC as smart card is becoming an essential component in network security and electronic payment system. Providing secured networkenvironment by its data encryption function, the SDK package allows users to develop their own application easily to meet their specific system needs.
- Ø ACR38U is a low cost, yet reliable and effective smart card toPC interface with design focusing on convenient use and harmony with other PC peripherals in shape and color. It provides the solution where the security of a smart card is required. It can be used as access control to a computer or network (intranet, extranet ...), authentication for e- commerce (B to B, B to C) ... It is very simple to use and install. It is ideal for electronic commerce, home banking or e-purse facilities, secure computer access or any of a multitude of other applications.
Feature
- Ø USB full speed interface to PC with simple command structure
- Ø Read and write all microprocessor cards with T=0 or T=1 protocols
- Ø Support SLE 4418/28/32/42 memory cards
- Ø Support most common memory-based smart cards, including I2C bus protocol cards (from 1k bits up to 1024k bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608)
- Ø Support 1.8V, 3V and 5V MCU cards
- Ø Short Circuit Protection
- Ø Certificate of conformance: ISO 7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL, EMV certified
- Ø ISO7816-1/2/3 compatible smart card interface
- Ø Support PPS (Protocol and Parameters Selection) with 1743 – 307200 bps in reading and writing smart cards
- Ø 768 bytes RAM size and 16K bytes ROM size
- Ø Extra SAM slot is optional
Specification
Universal Serial Bus Interface | |
Type |
USB full speed, four lines: +5V, GND, D+ and D- |
Power source |
From USB |
Speed |
12 Mbps |
Smart Card Interface | |
Standard |
ISO 7816 1/2/3, T=0 and T=1 |
Supply current |
Max. 50mA |
Smart card read / write speed |
1743 – 307200 bps |
Short circuit protection |
+5V / GND on all pins |
The presence of the smart card power supply voltage is indicated through a green LED on the reader | |
CLK frequency |
4 MHz |
Card connector |
Contact mode |
Card insertion cycles |
min. 100,000 |
(Optional) SAM Card Interface | |
Card connector |
Landing |
Location |
Under the removable dark lid |
Physics | |
Dimensions |
97mm (L) x 72mm (B) x 18.5mm (H) |
Color |
Golden |
Environment | |
Temperature |
0 - 50° C |
Humidity |
40% - 80% |
Standard/Certificate |
EMV Level 1, ISO7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL ME, 2K, XP |
Operating System |
Windows 98, ME, 2K, XP |
OEM |
Possible OEM-Logo, customer-specific colors, casing, and card connector |
Package Contents
- Ø ACR38U Smart Card Reader, ACR38T SIM Tracker SIM-sized plug-in Smart Card Reader, ABR08LS Balance Reader
- Ø 5 ACOS2 8Kbyte microprocessor-based smart cards, 5 ACOS2 SIM-size plug-in 8Kbyte microprocessor-based smart cards, 5 SLE 4428 memory-based smart cards, 5 SLE 4442 memory-based smart cards
- Ø Installation and operation CD-ROM (including drivers, source codes, utility tools and demo software)
The SDK CD-ROM includes
- Ø Demo Programs – Casino Application, School Application, ACOS Screen Saver and SIMmate. These demo programs can show the wide range of applications that ACR38 can be used in, e.g. e-purse, physical and logical access control, etc
- Ø Documentation – ACOS2 Reference Manual, ACR38 Memory Card Access, ACR38 OCF, ACR38U Reference Manual, ACR38 Technical Specifications, FAQ, PC/SC Specifications
- Ø Sample Codes – C#, Delphi, VB.NET, Visual Basic, Visual C++
- Ø Tools & Utilities – Card Tool, PC/SC Learning Tool, Quick View, Script Commander PC/SC
- Ø SDK User’s Guide
Application
- Ø Home Banking and Home Shopping
- Ø E-Commerce
- Ø Checkthe balance of account of re-loading an e-purses
- Ø Network access control
- Ø S/W locking
- Ø Digital signature
- Ø Loyalty and promotions
- Ø Stored value
- Ø Identification
- Ø Ticketing
- Ø Parking and toll collection
- Ø Online gaming
