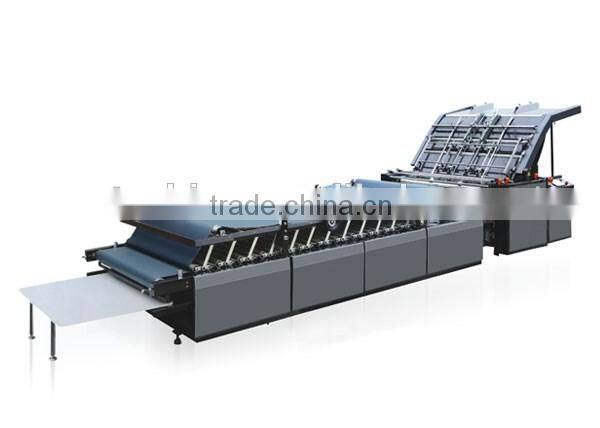

automatic flute laminating machine
USE: It is specifically designed for the water glue. It can first coat glue on the rubber film and then it will be dried through a warm water pulley. It can stick the glued film onto the paper surface by heating or pressurizing under the warm water pulley. The large-sized warm water pulley of 800m in diameter adopted warm water circulation system. It can heat fast stably and correctly. This machine is specifically designed for the chain-type cutter system. It is applicable for all kinds of films. It can automatically slit and deliver the film. The machine specially designed for water gel film laminator can reduce the emission of dimethylbenzene and exhaust. As a result it is well accepted in the well developed countries.
Standard Equipment
Automatic paper feeder
Glue Coating holder, drying channel, sticker
Disc or chain type paper cutter
Automatic paper delivery
Optional Equipment
Single-holder dust remover .
.Air compressor .
Electrostatic Treatment Device
Model |
ALBZ1300 |
ALBZ1450 |
Appreciate face-sheet weight |
+200gsm |
+200gsm |
Appropriate bottom-sheet weight |
+350gsm |
+350gsm |
Maximum size |
1300*1100mm |
1450*1100mm |
Minimum Size |
320*320mm |
320*320mm |
Maximum speed |
0-90m/min |
0-90m/min |
Total power |
7.8kw |
8.5kw |
Total weight |
4.8T |
5.3T |
Overall dimension(LXWXH) |
8500*1970*1850mm |
8500*2120*1850mm |
Note and instructions
Shipping time
Delivery within 30 days upon your payment
Packaging
Plastic film wrap and export standard wooden case
Terms of payment
30% T/T in advance 70%T/T before shipment
Delivery port
China main port (NINGBO OR SHANGHAI)
