Dream 7bar oil free air compressor
Q1: How about your air delivery capacity (Unit:CFM or M3/Min)?
Q2: What is your working pressure (Unit:PSI or Bar)?
Q3: What is your voltage (V/Hz)?

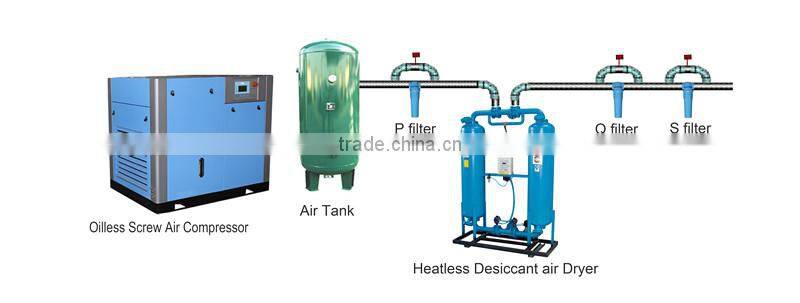

Q4: Do you need any after processing (Such as Air Tank, Filter and Air Dryer)?
Tell us the answer,we will offer scheme for you!
Q2: About general unit conversion:
1bar=0.1Mpa=14.5psi 1m³/min=35.3cfm 1KW=1.34HP
Q3: Are you factory or trade company?
We are factory. Our factory is located in Hulu road songjiang District,Shanhai City, China (Mainland).
Q4: Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Q5: How long will you take to arrange production?
5 days for 380V 50HZ . Other electricity or other color we will delivery within 25days.
- 100% oil free compressed air,
- 100% purified compressed air.
- 100% pollution risk-free compressing system.

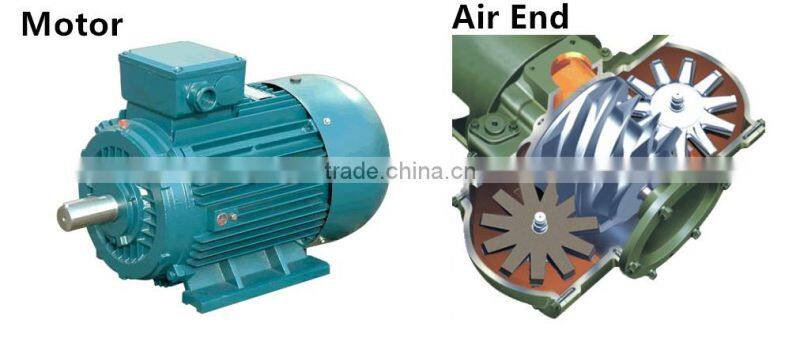

1.With the high-quality motor of well-known brand,IP code of IP54,Level F of insulation level,grease lubrication,SKF bearing,high efficiency.the special design of the machine can be conducted according to the requirements of the users.
2.The delicate design of the full stainless steel vapor separating tank make the vapor completely separate inside.
3.The advanced controlling and monitoring system can display all operation situation of the whole unit,together with RS485 interface fulfilling remote control.
| Model | Consumption power (KwHp) |
Discharge pressure (Mpa) |
Air discharge (m3/min) | Cooling Method | Noise (dB) | Outlet size | Weight | Dimension (L*W*H,mm) |
| DMW-5A | 5.57.5 | 0.8 | 0.83 | Air cooled | 56 | 3/4'' | 500 | 1120*780*1240 |
| 1 | 0.65 | |||||||
| DMW-7A | 7.510 | 0.8 | 1.16 | Air cooled | 58 | 34'' | 550 | 1120*780*1240 |
| 1 | 1.13 | |||||||
| DMW-11A | 1115 | 0.8 | 1.55 | Air cooled | 60 | 3/4'' | 580 | 1170*780*1180 |
| 1 | 1.32 | |||||||
| 1.25 | 1.05 | |||||||
| DMW-15A | 1520 | 0.8 | 2.3 | Air cooled | 63 | 1'' | 620 | 1200*900*1180 |
| 1 | 2.11 | |||||||
| 1.25 | 1.58 | |||||||
| DMW-18A(W) | 18.525 | 0.7 | 3 | Air cooledWater cooled | 64 | G1'' | 520 | 1400*1100*1200 |
| 0.8 | 2.8 | |||||||
| 1 | 2.6 | |||||||
| DMW-22A(W) | 22/30 | 0.7 | 3.6 | Air cooledWater cooled | 65 | G1'' | 560 | 1400*1100*1200 |
| 0.8 | 3.3 | |||||||
| 1 | 3 | |||||||
| DMW-30A(W) | 3040 | 0.7 | 5.1 | Air cooledWater cooled | 66 | G1 1/2'' | 1000 | 1850*1150*1400 |
| 0.8 | 4.5 | |||||||
| 1 | 4.2 | |||||||
| DMW-37A(W) | 3750 | 0.7 | 6.3 | Air cooledWater cooled | 68 | G1 1/2'' | 1050 | 1850*1150*1400 |
| 0.8 | 5.6 | |||||||
| 1 | 4.9 | |||||||
| DMW-45W | 4560 | 0.7 | 7.5 | Water cooled | 70 | G2'' | 1600 | 1850*1300*1500 |
| 0.8 | 6.6 | |||||||
| 1 | 6 | |||||||
| DMW-55W | 5575 | 0.7 | 10.3 | Water cooled | 71 | G2'' | 1700 | 1850*1300*1500 |
| 0.8 | 9 | |||||||
| 1 | 7.8 | |||||||
| DMW-75W | 75100 | 0.7 | 13 | Water cooled | 73 | G2'' | 1800 | 1850*1300*1500 |
| 0.8 | 12 | |||||||
| 1 | 10 | |||||||
| DMW-90W | 90120 | 0.7 | 15.5 | Water cooled | 75 | DN80 | 2700 | 2600*1480*1700 |
| 0.8 | 14 | |||||||
| 1 | 12.5 | |||||||
| DMW-110W | 110150 | 0.7 | 20 | Water cooled | 76 | DN80 | 3100 | 2600*1480*1700 |
| 0.8 | 18 | |||||||
| 1 | 16 | |||||||
| DMW-132W | 132180 | 0.7 | 26 | Water cooled | 78 | DN80 | 3250 | 2600*1480*1700 |
| 0.8 | 23 | |||||||
| 1 | 20 | |||||||
| DMW-160W | 160220 | 0.7 | 27 | Water cooled | 80 | DN100 | 4500 | 2800*1850*2000 |
| 0.8 | 25.5 | |||||||
| 1 | 24 | |||||||
| DMW-185W | 185250 | 0.7 | 30 | Water cooled | 82 | DN100 | 4500 | 2800*1850*2000 |
| 0.8 | 28 | |||||||
| 1 | 25 | |||||||
| DMW-200W | 200270 | 0.7 | 36 | Water cooled | 85 | DN100 | 4500 | 2800*1850*2000 |
| 0.8 | 33 | |||||||
| 1 | 27 | |||||||
| DMW-250W | 250340 | 0.7 | 42 | Water cooled | 90 | DN100 | 5200 | 2800*1850*2000 |
| 0.8 | 41 | |||||||
| 1 | 38 |
Remark:1bar=0.1Mpa=14.5psi,1m3/min=35.3cfm
Kendoll Wang
International Sales
Tel:86-21-67625676
Add: No.58 Rongshu Rd.,Songjiang District,Shanghai City,China
