Energy saving Intergrated Air Compressor 7.5kw 8bar

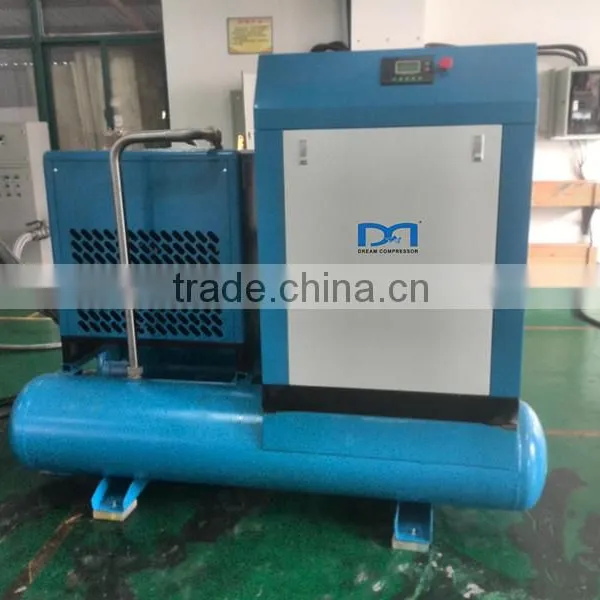

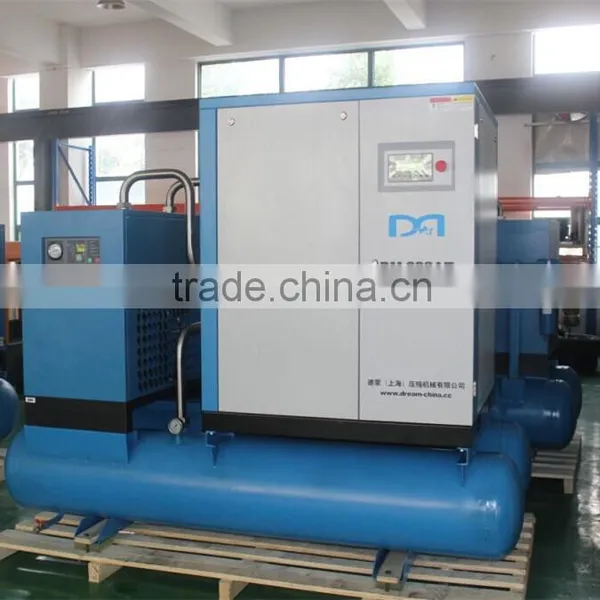

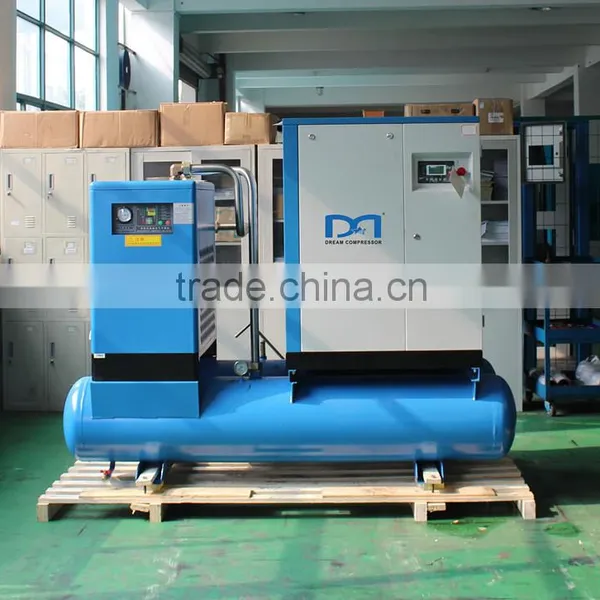

Product Showing
- SKF bearing match with high efficiency screw air end,make sure long service time.
- Single stage air compression design,stable air supply.
- Inlet sound attenuation design,build a low noise working environment to user.
- 1-2 years warranty period for whole machine,5 years for air end
Technical Parameters
| Model | Power consumption |
Discharge pressure (Mpa) |
Air discharge (m3/min) |
Air tank volume (L) |
Refrigerated air dryer (m3/min) |
Filter (um/ppm) |
Connection size (inch) |
Dimension (L*W*H,mm) |
Weight (Kg) |
| DM-5SAT | 5.5Kw/7.5Hp | 0.7 | 0.85 | 180 | 1.2 | 1/1 | ZG1 | 1570*645*1300 | 580 |
| 0.8 | 0.78 | ||||||||
| 1.0 | 0.65 | 0.01/0.01 | |||||||
| 1.25 | 0.5 | ||||||||
| DM-7SAT | 7.5Kw/10Hp | 0.7 | 1.1 | 180 | 1.2 | 1/1 | ZG1 | 1570*645*1300 | 680 |
| 0.8 | 1 | ||||||||
| 1.0 | 0.8 | 0.01/0.01 | |||||||
| 1.25 | 0.6 | ||||||||
| DM-11SAT | 11Kw/15Hp | 0.7 | 1.7 | 260 | 2.4 | 1/1 | ZG1 | 1900*960*1590 | 785 |
| 0.8 | 1.6 | ||||||||
| 1.0 | 1.4 | 0.01/0.01 | |||||||
| 1.25 | 1.2 | ||||||||
| DM-15SAT | 15Kw/20Hp | 0.7 | 2.4 | 260 | 2.6 | 1/1 | ZG1 | 1900*960*1590 | 810 |
| 0.8 | 2.2 | ||||||||
| 1.0 | 2.1 | 0.01/0.01 | |||||||
| 1.25 | 1.7 | ||||||||
| DM-18SAT | 18.5Kw/25Hp | 0.7 | 3.1 | 500 | 3.8 | 1/1 | ZG1.5 | 2150*1160*1740 | 895 |
| 0.8 | 2.9 | ||||||||
| 1.0 | 2.7 | 0.01/0.01 | |||||||
| 1.25 | 2.2 | ||||||||
| DM-22SAT | 22Kw/30Hp | 0.7 | 3.8 | 500 | 3.8 | 1/1 | ZG1.5 | 2150*1160*1740 | 930 |
| 0.8 | 3.5 | ||||||||
| 1.0 | 3.2 | 0.01/0.01 | |||||||
| 1.25 | 2.5 | ||||||||
| DM-30SAT | 30Kw/40Hp | 0.7 | 5.2 | 500 | 6.5 | 1/1 | ZG1.5 | 2150*1160*1740 | 1050 |
| 0.8 | 5 | ||||||||
| 1.0 | 4.3 | 0.01/0.01 | |||||||
| 1.25 | 3.7 |
Remark:1Mpa=10bar=145psi,1m3/min=35.3cfm
Packaging&Shipping

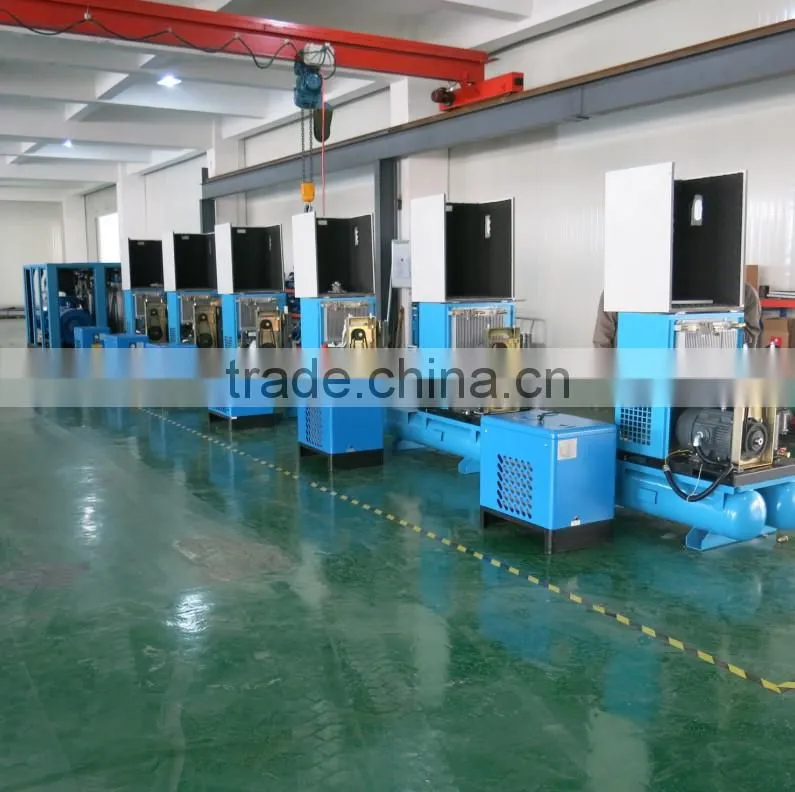

Company View
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
1. Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai, China.You can fly to Shanghai airport directly.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is your Discharge pressure?(bar ,Mpa or psi ?)
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the end. .
Why choose our factory?
1) World famous core component: We provide our customer with all type of high performance air compressor.
2) Experience: More than15 years production experience in air compressor industry.
3) After sales service and Technical assistance: Company provide 5 years quality warranty for whole machine and 1 year quality warranty for Air end.
4) Quick Delivery: The company provide just-in-time delivery with its strong production line.
5) Cost saving: We pay more attention on Research & Development to provide high efficiency and long-life parts to cost saving.
6) We warmly welcome you to enquiry us, and also appreciate any of your comments.
