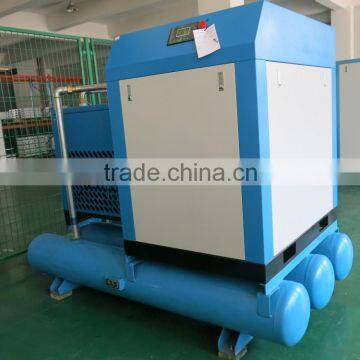

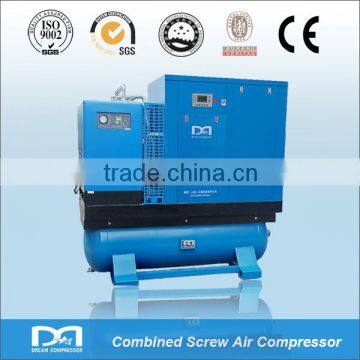

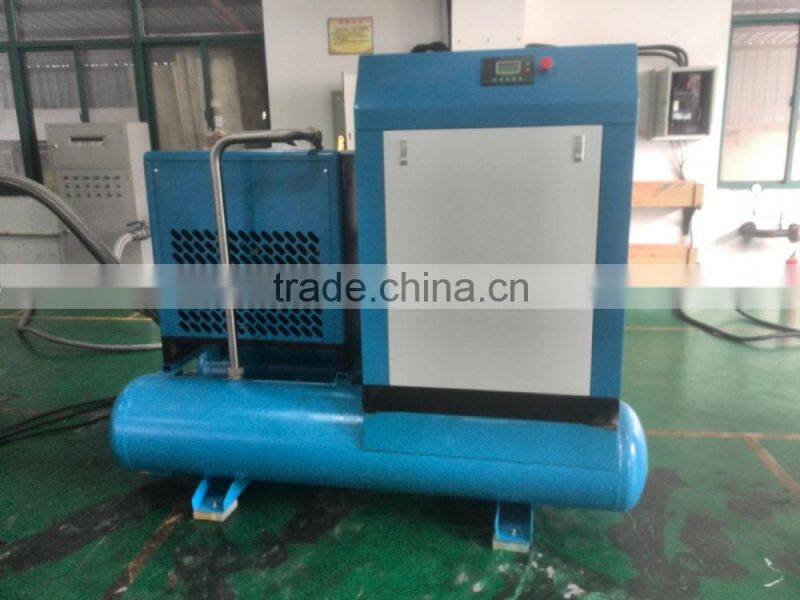

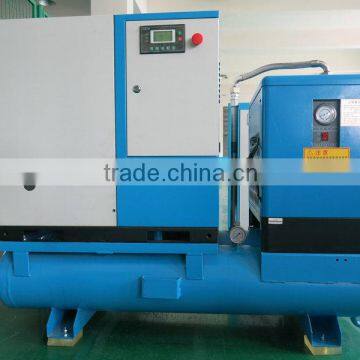

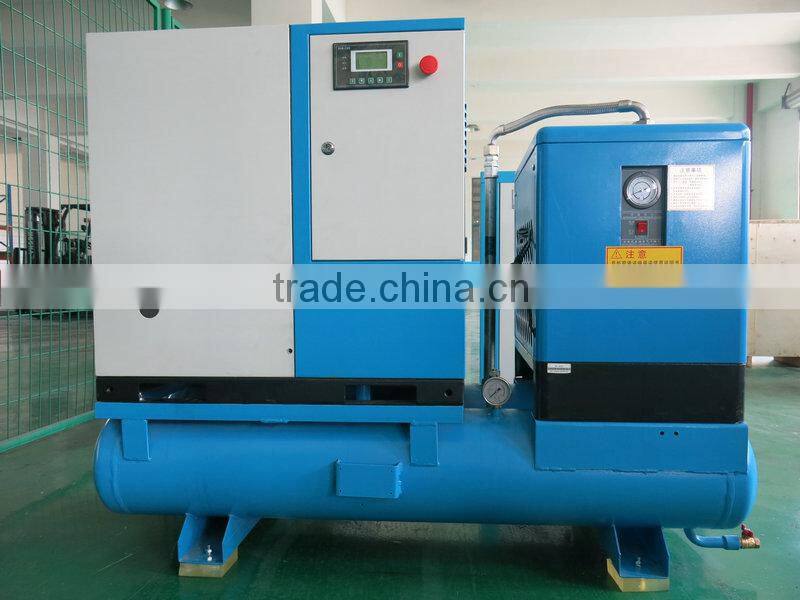

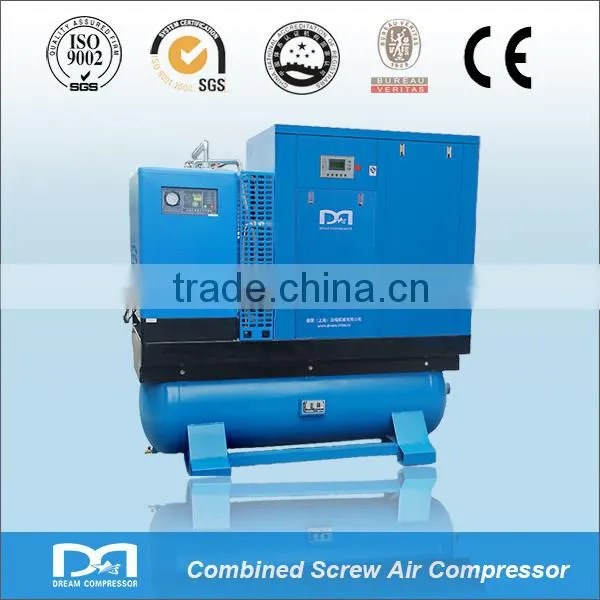

Air dryer air tank combined Twin dual AC electric rotary screw air compressor
- SKF bearing match with high efficiency screw air end,make sure long service time.
- Single stage air compression design,stable air supply.
- Inlet sound attenuation design,build a low noise working environment to user.
- 1-2 years warranty period for whole machine,5 years for air end.
1.The combined screw air compressor integrates the parts including screw compressor,air dryer,high efficiency air filter and air tank,making it convenient for the user to install,use and move.
2.After the air pass the integrated system,the quality of the air is made largely better to satisfy the process requirements of various companies.
3.Beautiful appearance,reliable performance and excellent economy make it one of our most important export series.
| Model | Power consumption |
Discharge pressure (Mpa) |
Air discharge (m3/min) |
Air tank volume (L) |
Refrigerated air dryer (m3/min) |
Filter (um/ppm) |
Connection size (inch) |
Dimension (L*W*H,mm) |
Weight (Kg) |
| DM-5SAT | 5.5Kw/7.5Hp | 0.7 | 0.85 | 180 | 1.2 | 1/1 | ZG1 | 1570*645*1300 | 580 |
| 0.8 | 0.78 | ||||||||
| 1.0 | 0.65 | 0.01/0.01 | |||||||
| 1.25 | 0.5 | ||||||||
| DM-7SAT | 7.5Kw/10Hp | 0.7 | 1.1 | 180 | 1.2 | 1/1 | ZG1 | 1570*645*1300 | 680 |
| 0.8 | 1 | ||||||||
| 1.0 | 0.8 | 0.01/0.01 | |||||||
| 1.25 | 0.6 | ||||||||
| DM-11SAT | 11Kw/15Hp | 0.7 | 1.7 | 260 | 2.4 | 1/1 | ZG1 | 1900*960*1590 | 785 |
| 0.8 | 1.6 | ||||||||
| 1.0 | 1.4 | 0.01/0.01 | |||||||
| 1.25 | 1.2 | ||||||||
| DM-15SAT | 15Kw/20Hp | 0.7 | 2.4 | 260 | 2.6 | 1/1 | ZG1 | 1900*960*1590 | 810 |
| 0.8 | 2.2 | ||||||||
| 1.0 | 2.1 | 0.01/0.01 | |||||||
| 1.25 | 1.7 | ||||||||
| DM-18SAT | 18.5Kw/25Hp | 0.7 | 3.1 | 500 | 3.8 | 1/1 | ZG1.5 | 2150*1160*1740 | 895 |
| 0.8 | 2.9 | ||||||||
| 1.0 | 2.7 | 0.01/0.01 | |||||||
| 1.25 | 2.2 | ||||||||
| DM-22SAT | 22Kw/30Hp | 0.7 | 3.8 | 500 | 3.8 | 1/1 | ZG1.5 | 2150*1160*1740 | 930 |
| 0.8 | 3.5 | ||||||||
| 1.0 | 3.2 | 0.01/0.01 | |||||||
| 1.25 | 2.5 | ||||||||
| DM-30SAT | 30Kw/40Hp | 0.7 | 5.2 | 500 | 6.5 | 1/1 | ZG1.5 | 2150*1160*1740 | 1050 |
| 0.8 | 5 | ||||||||
| 1.0 | 4.3 | 0.01/0.01 | |||||||
| 1.25 | 3.7 |
Remark:1Mpa=10bar=145psi,1m3/min=35.3cfm
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
Victor
International Sales
Tel:86-21-67625676
Add: No.58 Rongshu Rd.,Songjiang District,Shanghai City,China
