Pipeline Flexible Expansion Joint
- China port
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Pressure | Other, PN6,PN10,PN16,PN25 | |
| Power | Other | Material | Other, Rubber, Rubber and Carbon steel | |
| Temperature of Media | Normal Temperature | Media | Other, Water, air/air compression/water/sea water, etc. | |
| Port Size | PER CUSTOMER REQUEST | Place of Origin | Shandong, China | |
| Application | General |
Product Description

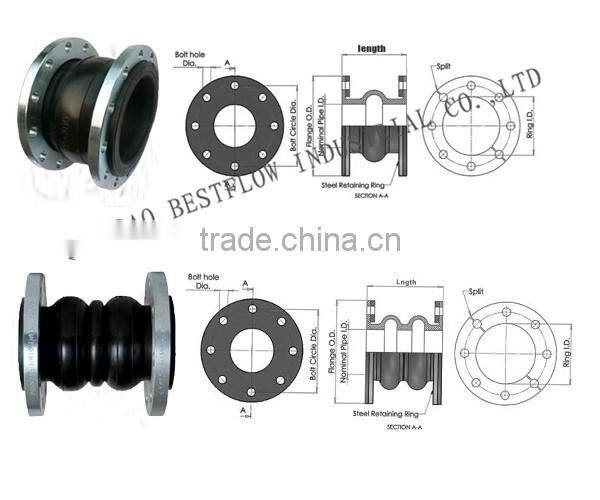

Pipeline Flexible Expansion Joint:
Working pressure and temperature
Working pressure PN16.
Explosive pressure 48 bar.
Vacuum rating 750mmHg
Temperature from -10℃ to 120℃ for EPEM.
Temperature from -10℃ to 82℃ for NBR.
Temperature from -10℃ to 120℃ for Neoprene.
| Part Name | Material |
| Rubber | EPDM/NBR/Neoprene |
| Carcass | Nylon cord fabric |
| Reinforcing wire | Spring steel wire |
| Flange | Carbon steel,Zinc plated |

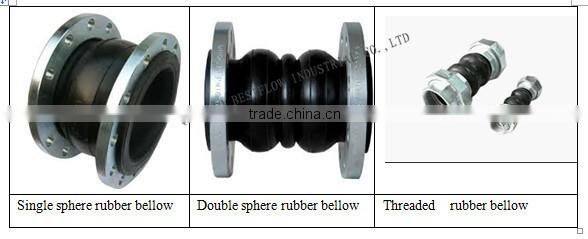

Product picture:
Company information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of
pipeline fittings in China. The products includes: steel fittings, steel flanges, steel nipples &
couplings, iron fittings etc., they are widely used the pipe systems of nuclear power plants,
power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings,
engineering fields and construction industry.
Warmly welcome the customers in domestic and foreign countries visit us, “BESTFLOW”
products would like to create the Brilliant future together with you.
