Home > Products > Iron Valve > Concentric Butterfly Valve
Concentric Butterfly Valve
- QINGDAO TIANJIN
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Other, Low Pressure, Low pressure,Medium pressure | Power | Manual | |
| Material | Other, Casting, Iron, steel | Temperature of Media | Normal Temperature | |
| Media | Other, Oil,Water,Gas | Port Size | DN50-DN500 | |
| Place of Origin | Shandong, China | Brand Name | BFW |
Product Description
1. Product Description:
Concentric butterfly valve:
Size: | DN50-DN500 |
Pressure: | PN10/PN16 |
Body: | Cast iron, Ductile iron, Cast steel, Stainless steel |
Stem: | Stainless steel Monel |
Disc: | Ductile iron, Stainless steel, Aluminum Bronze |
Seat: | Copolymer EPDM, Nitrile Rubber, Fluorine rubber |
Face to Face according to: | ISO 5752 SERIES 20 |
Flange according to: | DIN 2501 PN10/PN16; ASME B16.1/B16.2/B16.5 CLASS 125/150 |
Operated way: | Hand wheel, Worm gear, Pneumatic, Electric acturtor |

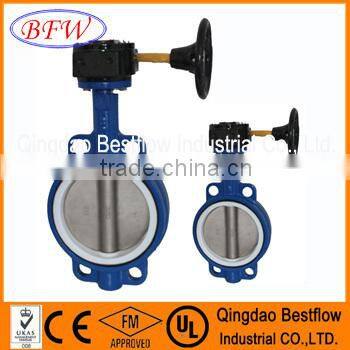

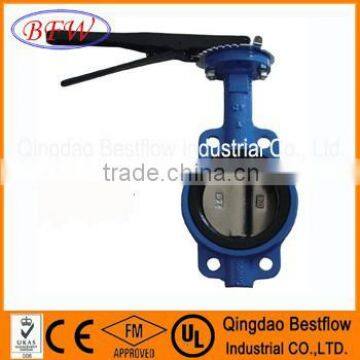

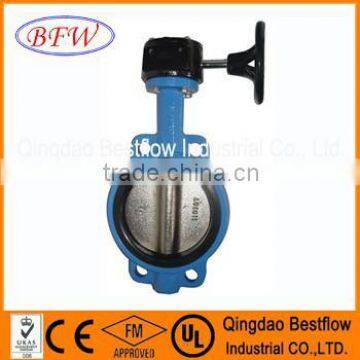

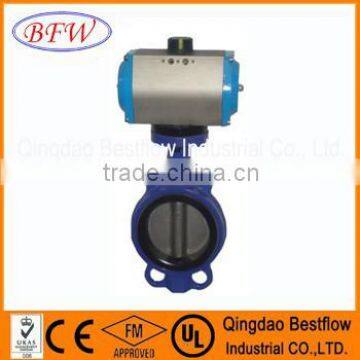

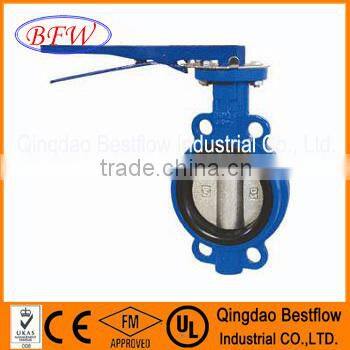

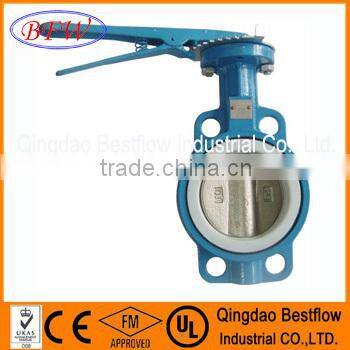

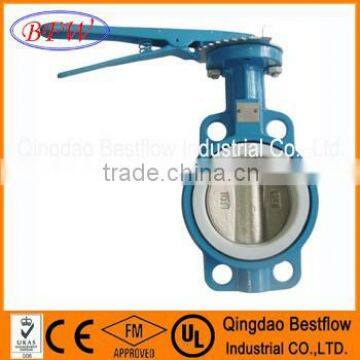

2. Product Picture:
3. Packaging & Shipping:
Packaging Detail: pallet, wooden case, or as customers' requirment
Delivery Detail: about 30-35days after get the downpayment
4. Factory Highlights:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of valves in China. The products includes: gate valve, globe valve, check valve, butterfly valve, ball valve etc., they are widely used the valve systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.
Depend on advanced production technology and equipment, strict quality management and control, good service and competitive prices, win a good reputation in the domestic and foreign customers, and exported the products to Europe, America, Middle East and southeast Asian, over 50 countries and areas.
5. Our Certificates:
6. Our Service:
BESTFLOW INDUSTRIAL CO., LTD.
Add: No. 63, TECHNOLOGY PARK, QINGDAO, CHINA
TEL:+86-532-55576189 FAX:+86-532-55576192
SKYPE: bestflowfitting WEBSITE:
