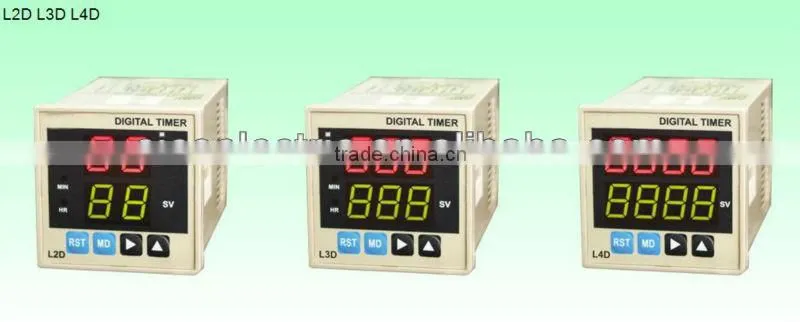

Multi-Function Digital Timer

Name: Multi-Function Digital Timer
Brand: SICO
SKU: 125111997

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SICO

Model Number:

L2D,L3D,L4D

Qingdao SICO Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SICO

Model Number L2D,L3D,L4D

Theory Digital

Usage Multifunctional

Type Mini

Multi-Function Digital Timer

2,3,4digits display with 7 segment LED display

21 time ranges(9.9sec~99hrs or 9.99sec~999hrs or 99.999sec~9999hrs)

Flicker relay

Key protection provided

Count up or count down mode user selectable

Memory function available

Specifications & Characeristics
Dimensions(mm)		48HX48WX80D
Mounting & Socket		Surface: P2CF-08 or P2CF-11 Flush: Y-50 & US-08 or Y-50 & P3G-08 or Y-50 & US-11
Indicator operating		Time up operating
Reset method		Power reset, External reset
Reset time		Power Reset: 0.3sec External reset: 0.02sec
Rated voltage		12-60VDC/AC; 100-240VAC 50/60Hz
Operating voltage		90-110% of rated voltage
Time range SEC:9.9,99 MIN:9.9,99 H R:9.9,99		L2D-8		L2D-8X	L2D-11		L2D-11X



Time range SEC:9.99,99.9, 999 MIN:99.9, 999 H R:99.9, 999		L3D-8		L3D-8X	L3D-11		L3D-11X
Time range SEC:99.99,999.9, 9999 MIN:99M59S, 999.9,9999 H R:99H59M, 9999		L4D-8		L4D-8X	L4D-11		L4D-11X
Control output		Mode A/B 2C or 1A1C		Time limit:1C 1+4 GATE 1+3 RESET	Mode A/B 6+5 GATE 6+7 RESET		Time limit: 1C 6+5 GATE 6+7 RESET 1+3 12VDC 100mA
Accuracy	repeat error	±0.05%
	setting error	0
	voltage error	±0.05% sec
	temp.error	±0.05% sec
life	mechanical	5X10⁶ Times
	electrical	10⁵ Times
Consumed power		Max. 3VA		Max.2VA	Max.3VA		Max.2VA
Ambient temperature		10°C +55°C
Ambient Humidity		45-85%RH
weight		Approx.120g		Approx.110g	Approx.120g		Approx.110g
Connection Diagrams & Timing Chart		P.45-A	P.45-B	P.45-C	P.45-D	P.45-E	P.45F
