Plywood Door Heavy Duty Wide Belt Sanding Machine
Function:
This machine is one of the necessary equipment for thickness adjustment, fine sanding, and polishing of fiberboard, shaving board, plywood board, man-made board and panel-type material. It is with high precision,easy and safe operation
Advantage:
1. Heavy-duty wide-belt sanding machine has a set of cleaning equipment (bristle) on the back, saving labors.
2.4 sets of Electro-Optic Systems instead of 4 limit switches, which control the swing of sanding belt, accurate and safer.
3. 14# channel steel , while others' 12# channel steel, heavy shelves, secure, wearable.
4. Big motor, enough power
5. Famous brand electric device: Chint
6. In the width 1000mm machine, roller shaft head diameter is 50mm, solid durable. (In processing, board thickness more than which can be processed, it will hit the rollers. If continue work, board will be not smooth.)
7. In wood planning sanding machine, the pressing roller equip protecting device to keep the board on the feeding table, which keep the operators safe..
8. Wood planning sanding machine’s roller is fromTaiwan, high-quality sand roll.
9. All export products have built-in motor.
10. Processing smoothness: error on the eight points of plate is within 6-7 decimillimetre, higher than the national standard 12 decimillimetre.
11. When there is any emergency or malfunction during work, the machine will be stopped automatically and lifting table will be automatically down to protect the workpiece and operator.
Specification of belt sanding machine:
| Working width | 1300mm |
| Working thickness | 2-110mm |
| Speed of feed belt | 5-25m/min |
| Total motor power | 93.62kw |
| Size of sanding belt | 1330*2200mm |
| Working air pressure | >=0.55Mpa |
| Overall dimension | 2350*2740*2005mm |
| Weight | 4500Kgs |

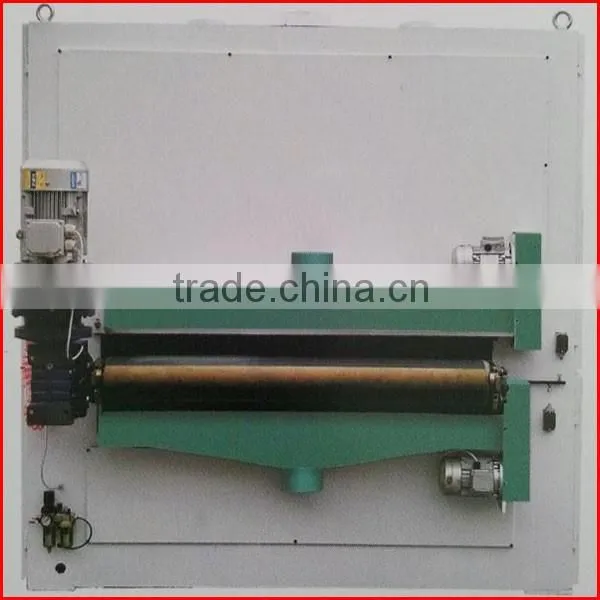

Pictures of belt sanding machine

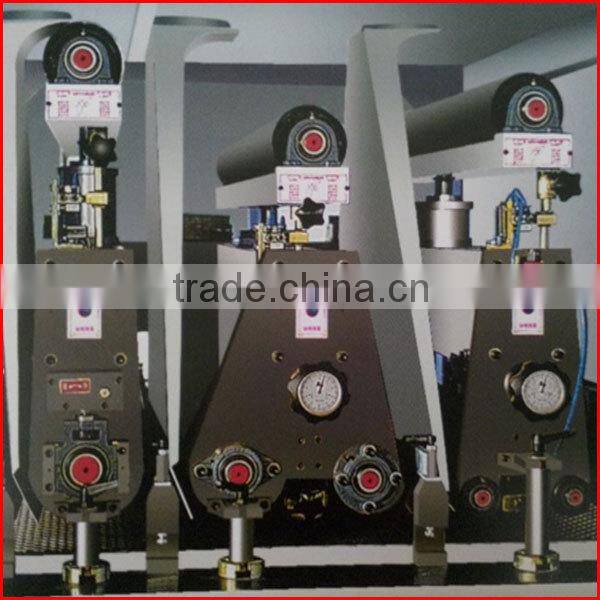

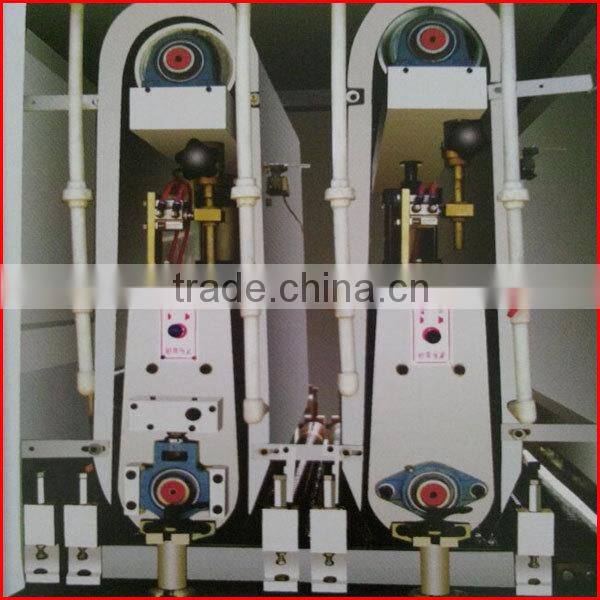

Different kinds of belt sanding machine

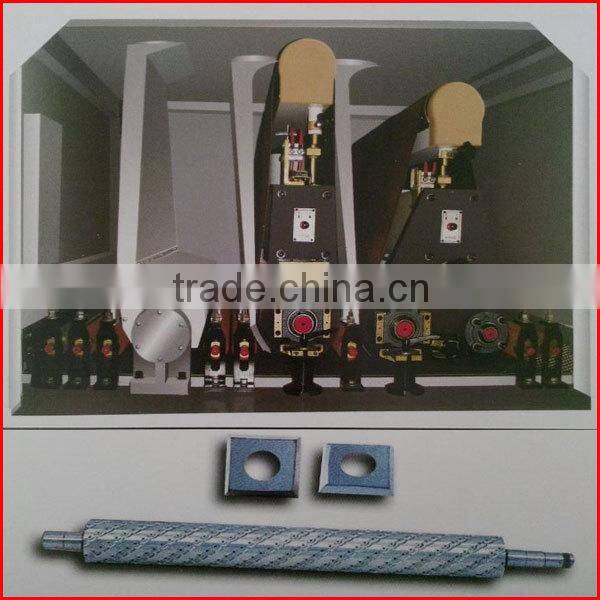

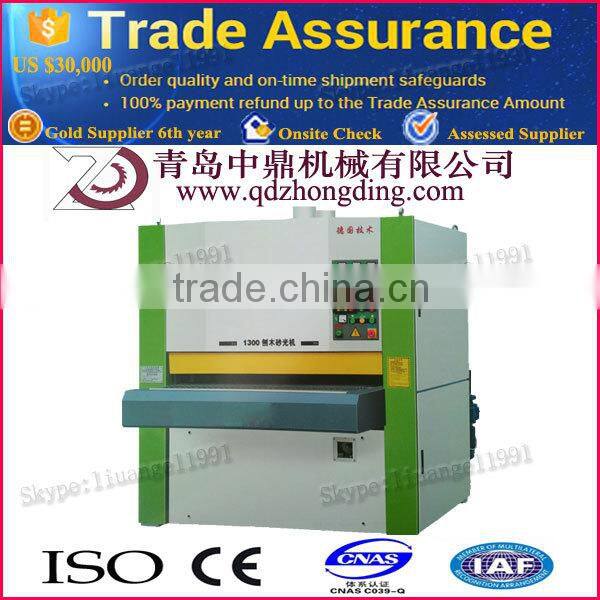

Wood-planning sanding machine

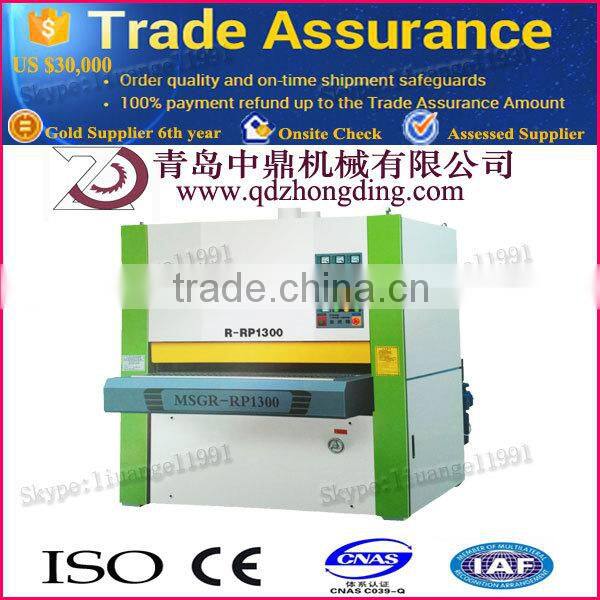

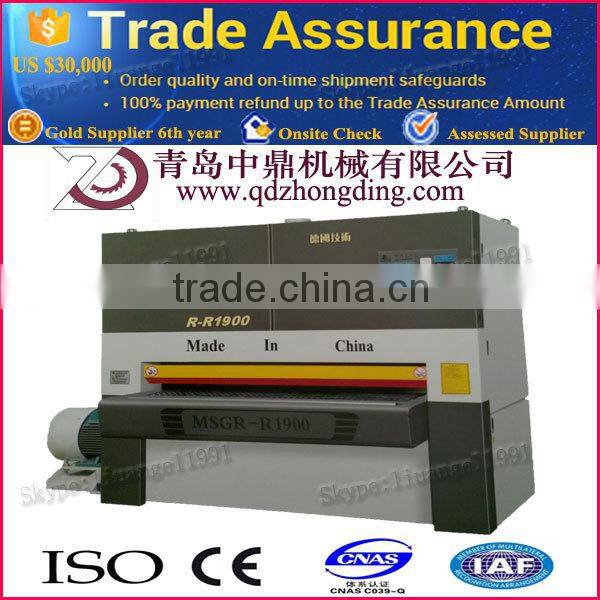

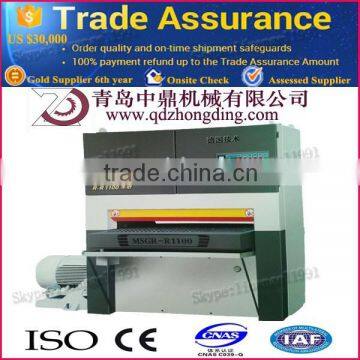

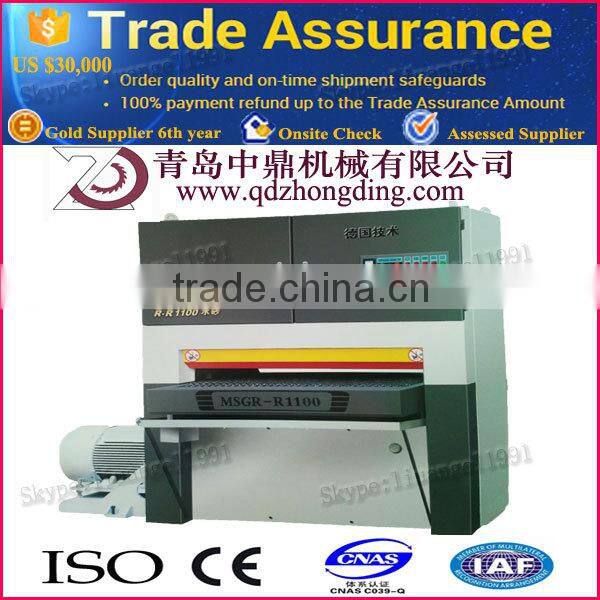

Heavy duty wide belt sanding machine
Water milling sanding machine

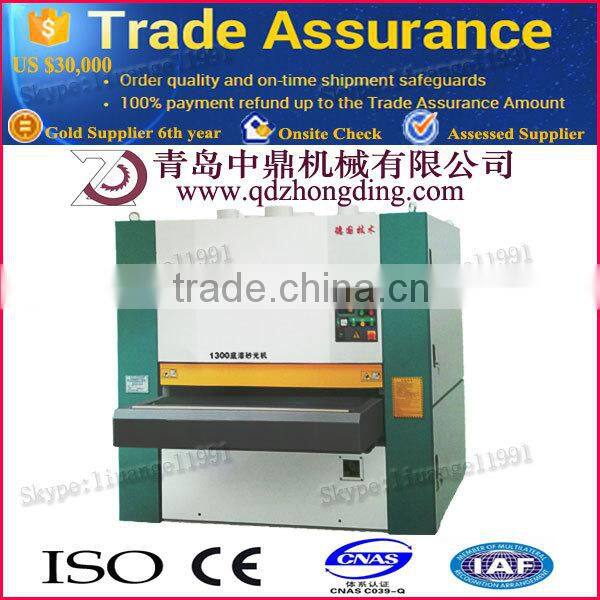

UV, PU lacquered sanding machine

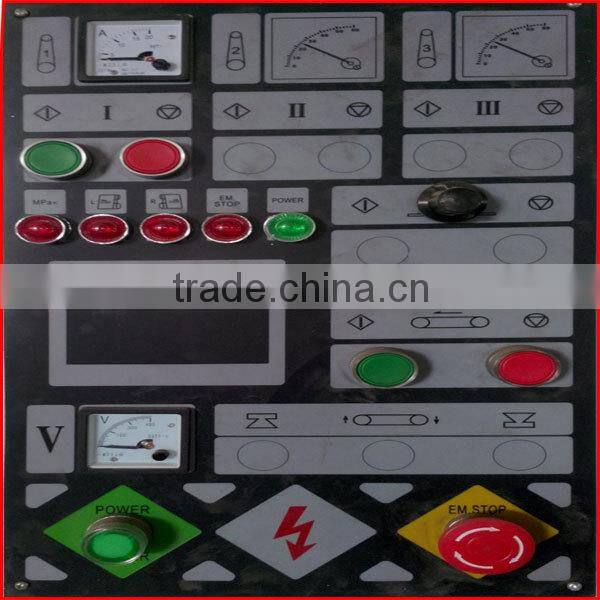

Control panel

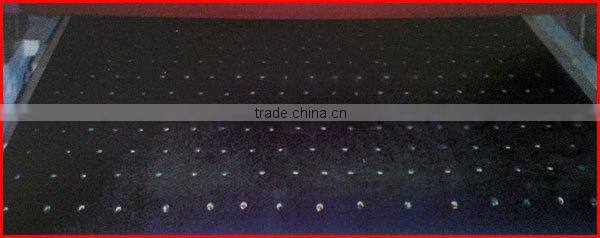

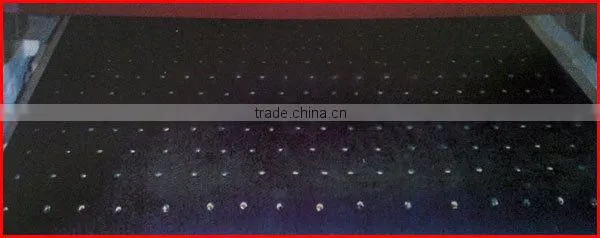

Vacuum absorption table

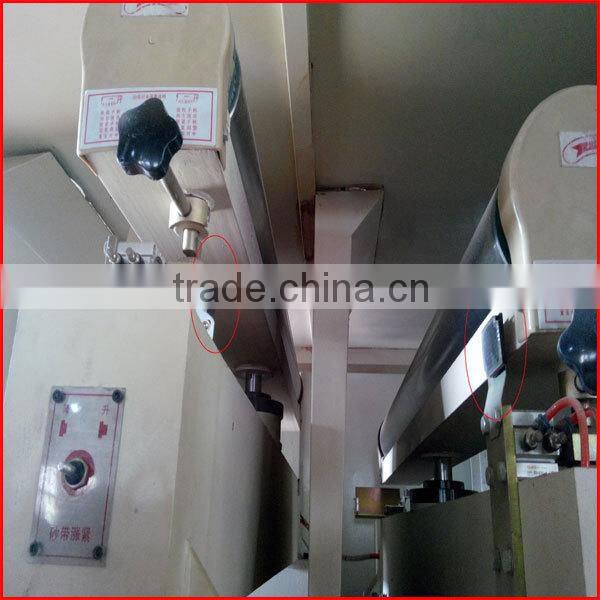

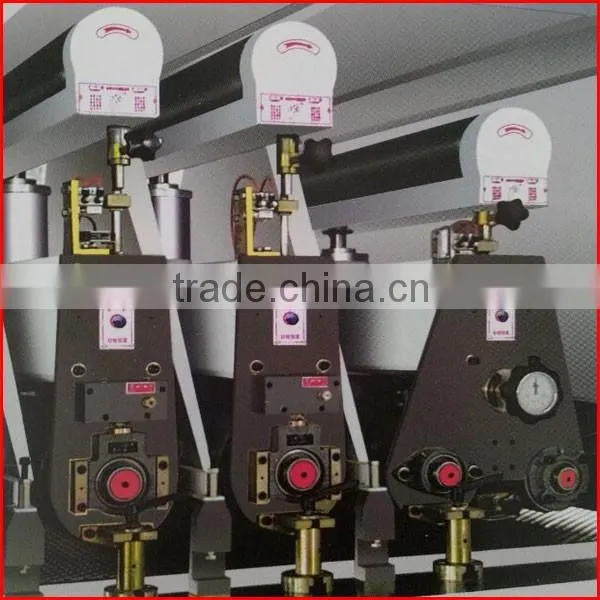

Electro-Optic System

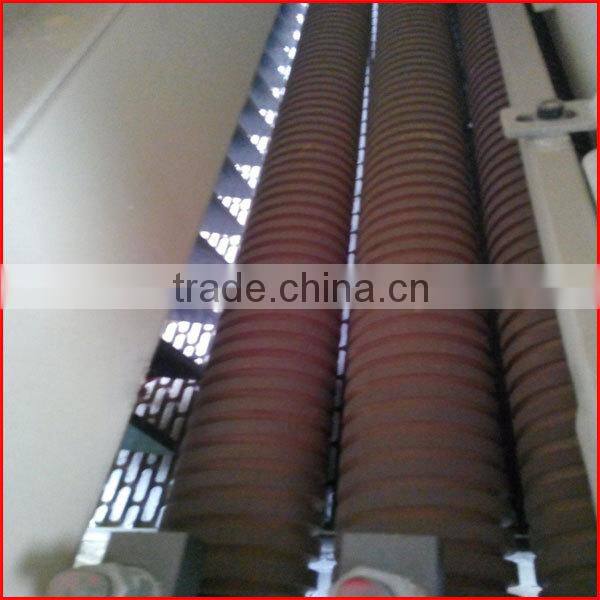

Pressing roller equip protecting device
How to choose the right belt sanding machine?
1. What material to process? Plastic, stainless steel, marble, wood- plastic composites, artificial stone, glass and others need water-milling sand. All the parts in contact with water should be chroming to waterproof. Veneer needs vacuum absorption sanding machine. It is easy fix the veneer. Paint needs lacquered sanding machine, with 28 degrees of soft rolls and polishing rollers that can automatically clean up the dust.
2. What to do? To process plate ? Or to process just splice plate (It needs planning first, so wood-planning sanding machine is ok. One machine saved, and save labor costs)?
3. Amount of sanding: different sanding belt and different wood, so different amount of sanding. Usually it can reach 70-80 decimillimetre.
4. For doors, furniture, 1000mm width machine is ok.

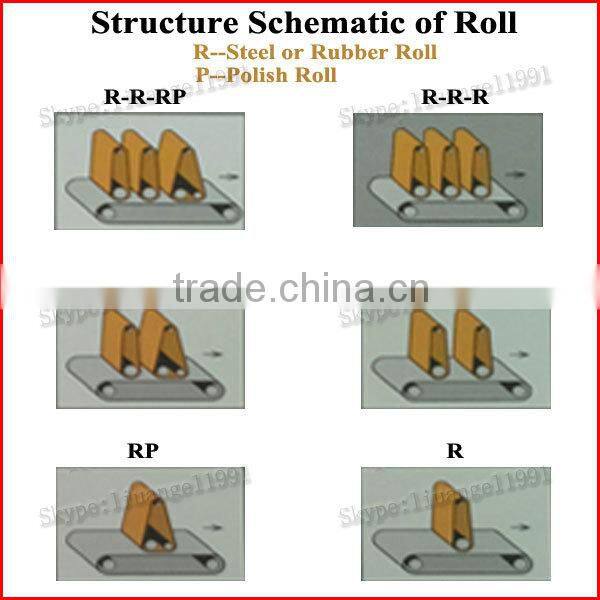

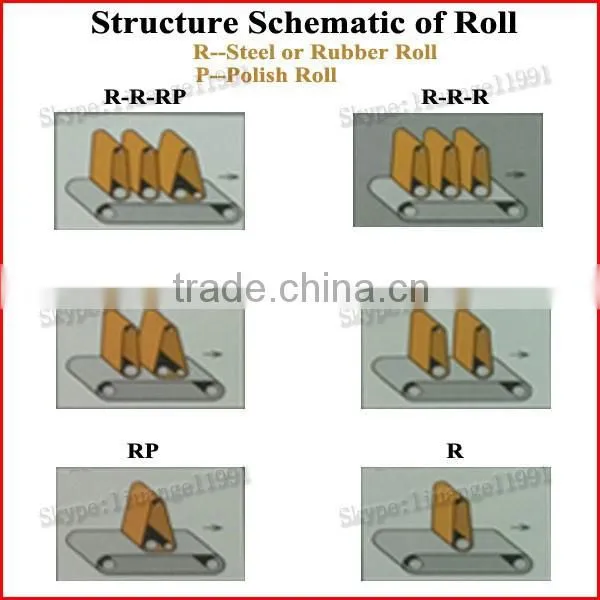

5. The combination of ordinary machines: steel roll + rubber roll + polishing rolls. These three rolls can be combined freely, you can choice. Steel roll is durable, good sanding capacity, while rubber roller can sanding less, and polishing roll can eliminate wave pattern, with good resistance, so it sanding less. After the polishing roll weared, you can continue to use it by grinding smooth.
6. Ordinary machine can process material thickness between 2-110mm. More than these also can be customized.

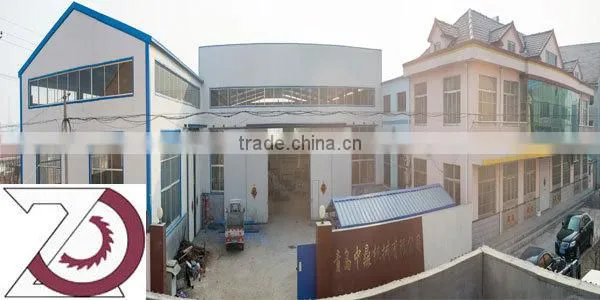

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.
