Specifications
veneer peeling lathe/wood machineThe feeding part of this machine uses accurate machine rail,which keeps high cutting precisio

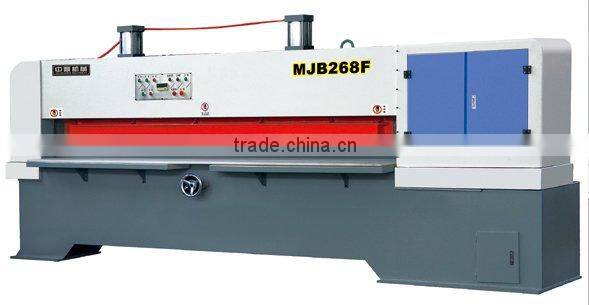

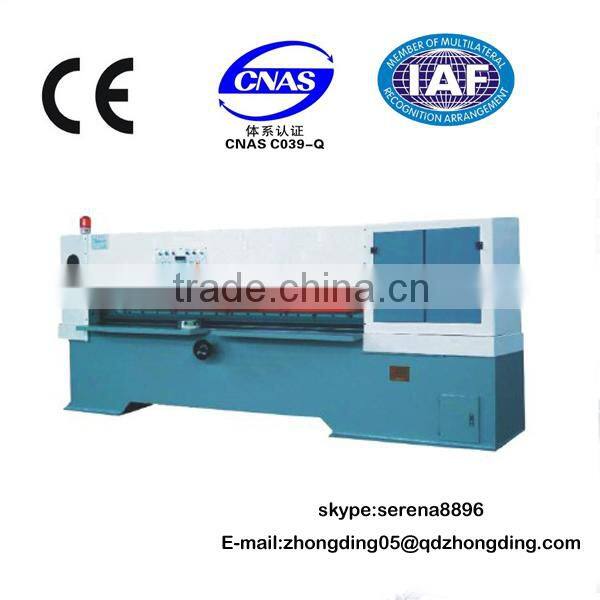

veneer peeling lathe/wood machine
MJB268F series clipper is made by international advanced technology and it is mainly used to produce splint and paper.It is the corollary equipment for the secondary processing of man-made board,paper products and so on.
A.The cutting board and platen is heated to high tempreture by casting which keeps stable performance and not easy to deform.
B.This machine uses high sensitive photo-electric protection equipment which keeps safe enough.
C.The feeding part of this machine uses accurate machine rail which keeps high cutting precision.
D.There is pneumatic and hydraulic.The pneumatic clipper uses three phase asynchronous motor which is braked by electromagnetism and it keeps steady running,sensitive brake,power-saving and not polluting the materials. The hydraulic clipper is made of domestic qualified products which keeps steady operating,low noise and big working pressure.
| Model | Max.cutting length | Max cutting thickness | Scissors size | Feed motor power | Compressed air pressure | Overall dimensions | Net weight |
| MJB158F | 1580 | 60 | 1650*145*16 | 2.57 | 0.45-0.75 | 3000*1300*1900 | 2800 |
| MJB268F | 2680 | 60 | 2750*145*16 | 3.37 | 0.45-0.75 | 4100*1300*1900 | 3500 |
| MJB318F | 3180 | 60 | 3250*145*16 | 3.37 | 0.45-0.74 | 4600*1300*1900 | 4000 |
| MJB418F | 4180 | 60 | 4250*145*16 | 5.87 | 0.45-0.75 | 5600*1500*2000 | 5000 |
