wood door engraving wood cnc router
- 50 Set / Sets per Month
- Qingdao
- T/T
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | ZD | Model Number: | MJ1325 wood cnc router | Voltage: | 380V |
Power(W): | 9KW FOR SPINDLE MOTOR | Dimension(L*W*H): | 3.1*2.28*2.15M | Weight: | 2100KGS |
Certification: | ISO | Warranty: | 12 month for free, lifetime with charge | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wood Machinery Wood CNC Router Machine
Performance features
1.Integral welding body,high inflexibility structure design,material stress analysis and forming by heat treatment,avoid deformation.
2.Transmission part adopts high precision helical rack,THK linear rail from Japan,supplement with Japan Yaskawa servo system
and Taiwan professional deceleration device,ensure machine running smoothly in high speed,high precision,low noise.
3.Equipped with professional vacuum system,adopt integral adsorption base with the high strength engineering plastics surface,onetime forming,adopt high power professional vacuum pump,strong adsorption capacity.
4.Imported high power spindle from Italy ,low sway in axial ,strong cutting force,long lifetime,low noise,with imported Geneva type library of 8pcs tool,high efficiency.
5.Industrial control system ,professional electronic parts,perfect function,stable performance,strong compatibility of software .
Application of cnc router machine :
Applicable to process kinds of boards,such as solid wood,acrylic,PVC board,shaving board,fireproof wood etc.Widely used in complex processing on door,cupboard,audio wood shell etc.
Technical data
item | MJ1325A | MJ1630A | MJ2030A |
Working size | 1300*2500*210mm | 1600*3000*210mm | 2000*3000*210mm |
Table size | 1220*2440mm | 1530*2940mm | 1930*2940mm |
Max.travel speed | X axis-30m/min,Y axis-30m/min,Z axis-20m/min | ||
transmitting | X,Y-high accuracy helical gear,Z-rolling ball screw | ||
Servo type | Japan Panasonic(YASKAWA is optional) | ||
Spindle type | Italy 10kw ATC spindle motor | ||
Spindle rev. | 18000-24000rpm | ||
Vacuum table | Matrix vacuum table | ||
pump type | Moporo(Germany becker is optional) | ||
Tool type | Bamboo Hat ATC | ||
Tool magazine | 8pcs(10pcs,12pcs is optional) | ||
Controlling system | SYNTEC(OSAL is optional) | ||
voltage | AC380V/3PH/50HZ | ||
Machine size | 2200*3100*2000mm | 2500*3600*2000mm | 2900*3600*2000mm |
weight | 2100KG | 2900KG | 3400KG |
Note:Any changes of technical parameters without notice,price changed with different configuration and size.

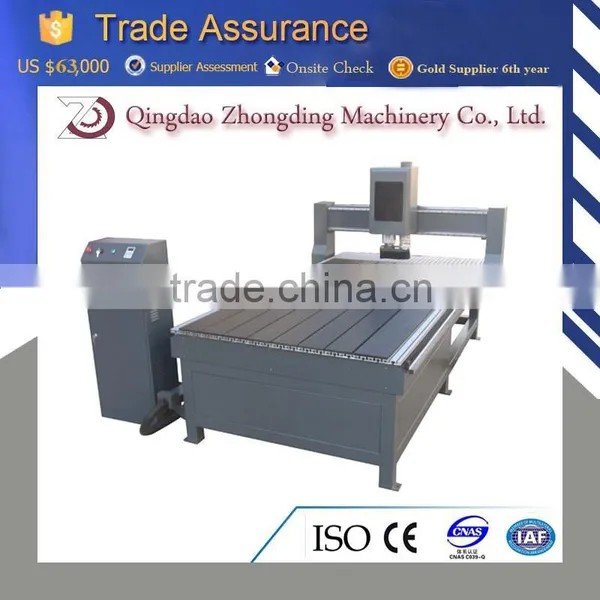

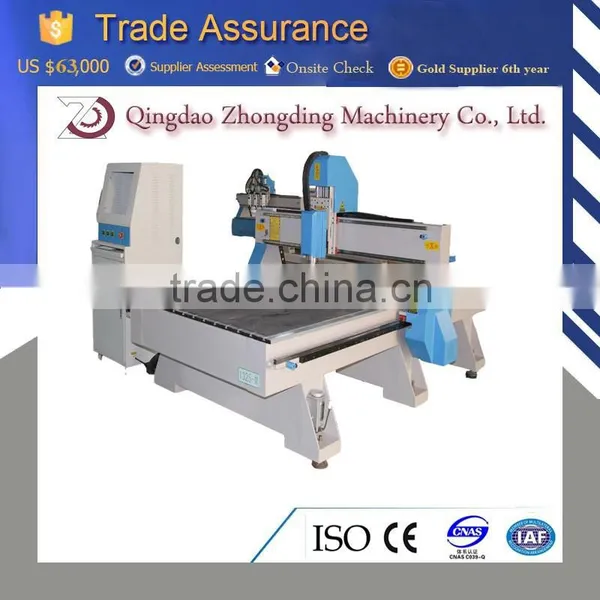

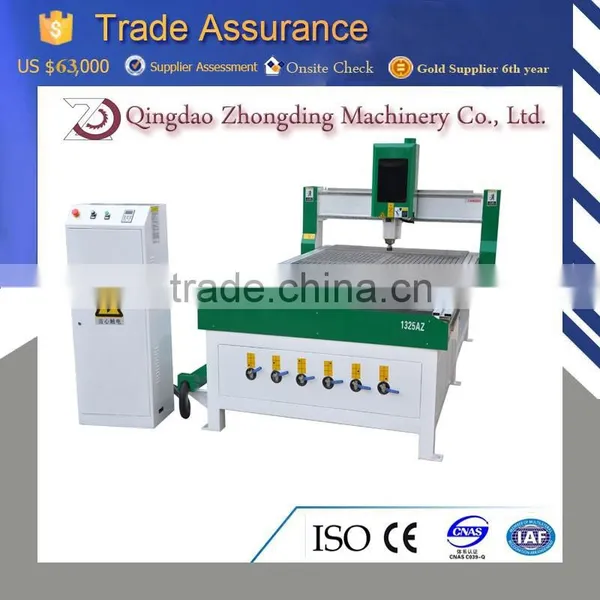

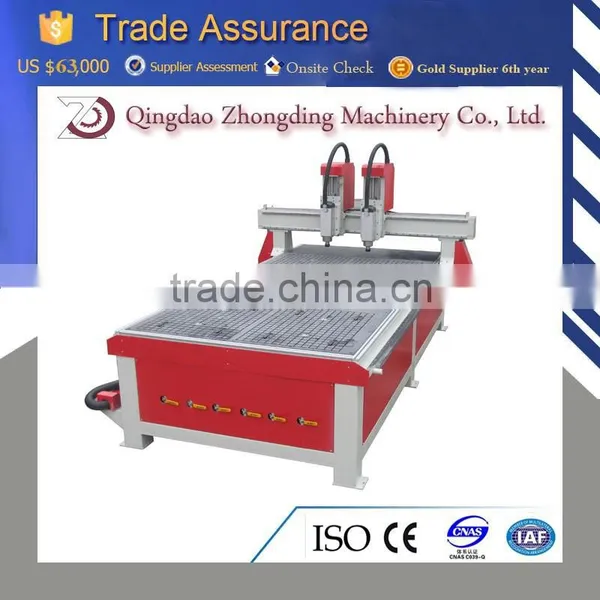

Pictures of cnc router machine
Company View
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.
Our products are mainly included Precise panel saw, R series Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Our Exhibitions
Why Choose us?
7*24 online EMAIL service!
1.We are Alibaba Assessed 6 years Gold Supplier.
2.We are a factory manufacturing sliding table saw,best production capability ,best quality control, Best Service .
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE/ISO listed sliding table saw,competitve price.
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 20 years manufacturer and export exprience.
Q2.About the MOQ
A2.1 set, and we are OEM,
I will give you the competitive price better than market.
Q3.May I buy a sample?
A3. Of course ,sample order is welcome.
Q4.How can I place a order?
A4.Just give me your nice inquiry,I will do my best to assist you.
Q5. If I want cheaper quality, can you produce?
A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q6. If I order big quantity, what's the good price?
A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
