MDF drilling machine Wood Double line drilling machine
Function and features:
1) it is suitable for all kinds of density boards,particle board,artificial board,PVC board,organic glass board and solid wood board.
2) it can drill in a wide range of sizes. And the bits are braced in the quick connectors ,so it’s convenient..
3) The photoelectric switch is used for the drilling depth so that it’s quick and accurate.
4) The drills in row and the motors of the drilling machine are all famous-Brand ,very durarble.
5) The body of the machine is made of good steel which the high heat treatment is crossed. So it will not be out of shape forever.
6) If you need, according to your requriments, the digital display calculator can be used on the machine that can increase your work efficiency.
Specification:
| max drill diameter | 35mm |
| max working depth | 60mm |
| vertical spindle heads | 330-1220mm |
| Number of spindle | 21 heads*2 |
| spindle speed | 2800r.p.m |
| install power | 1.5kw*2 |
| air pressure | 0.6-0.8Mpa |
| overall size(L*W*H) | 2400*1080*1400mm |

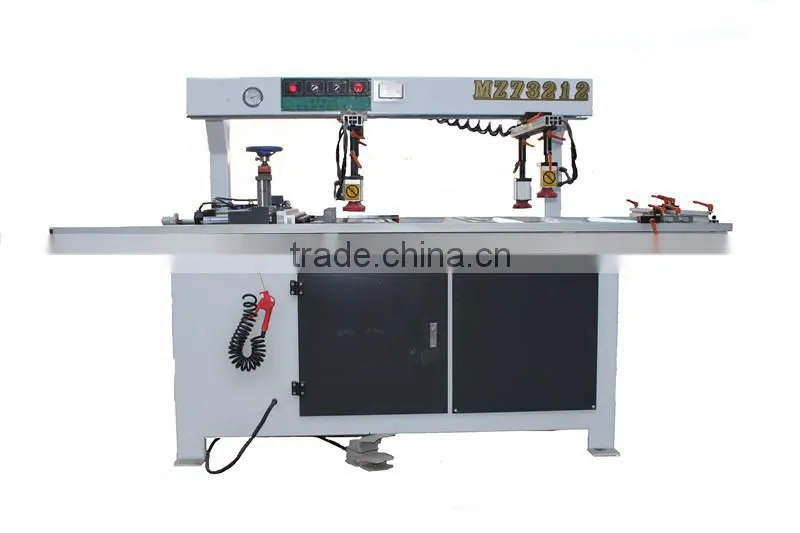

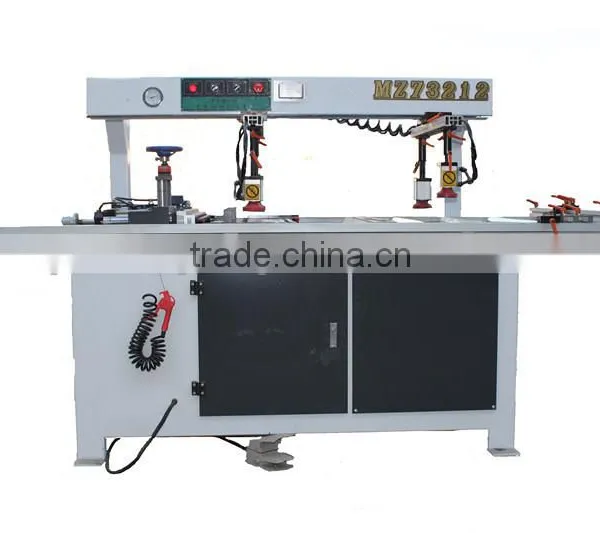

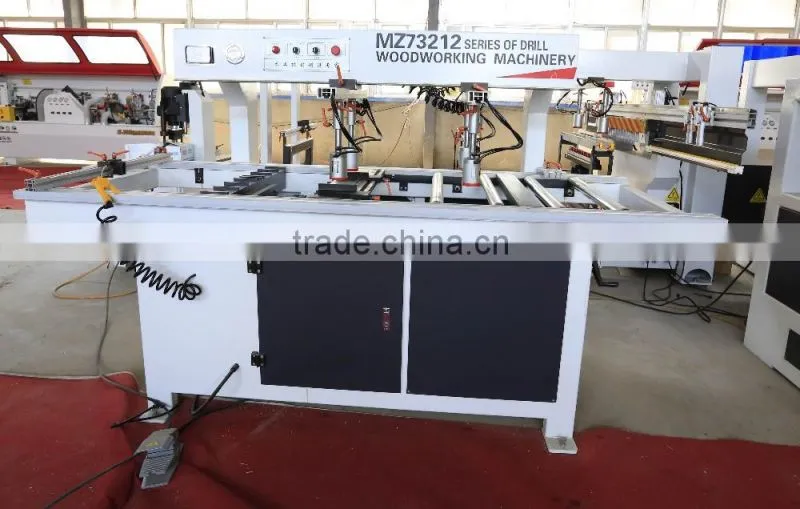

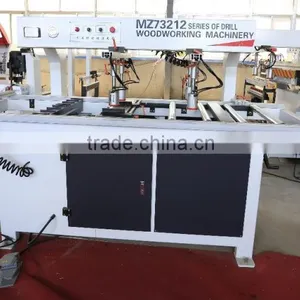

Machine Pictures:

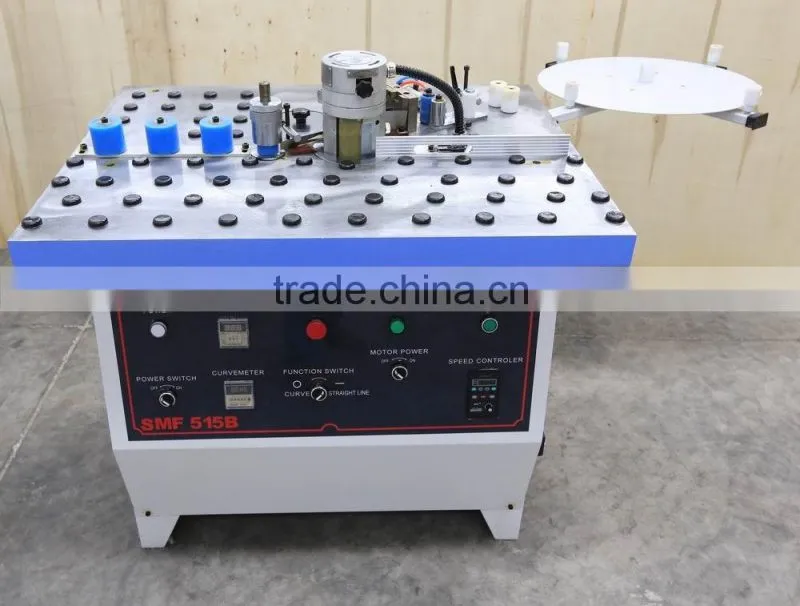

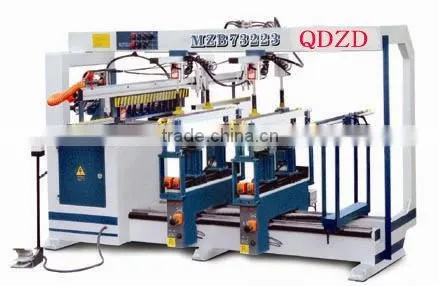

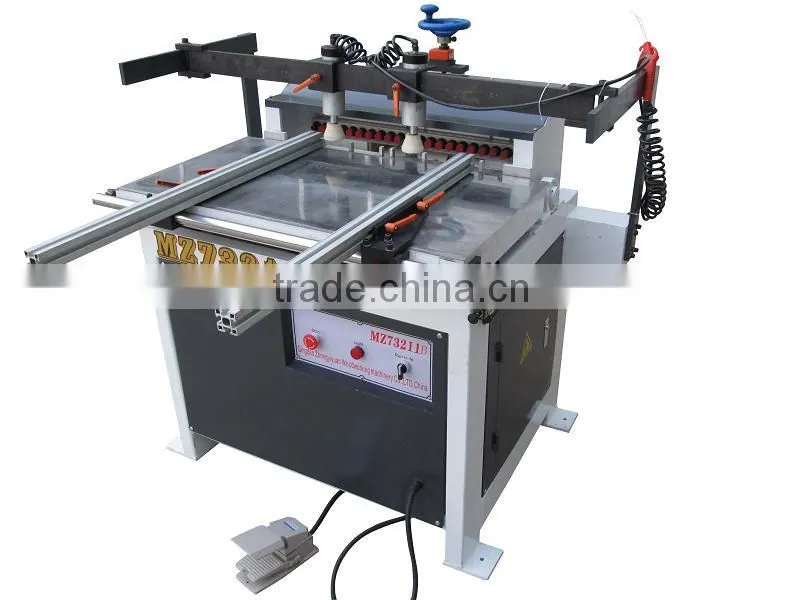

Other woodworking machine:
Delivery: 30 days
MOQ: 1 set
Warranty: 30 days
Term of Payment: T/T,L/C
If you have any question, please contact us:
Contact : Jane Cheng
Skype: chengcheng198488
Mobile:0086-15966936501
