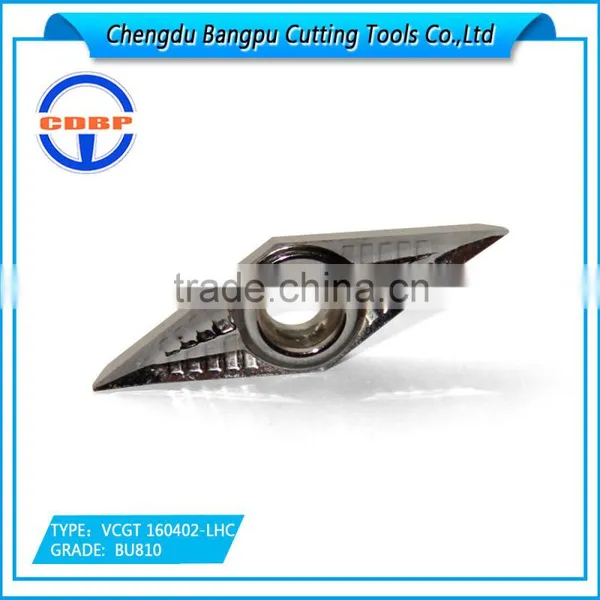

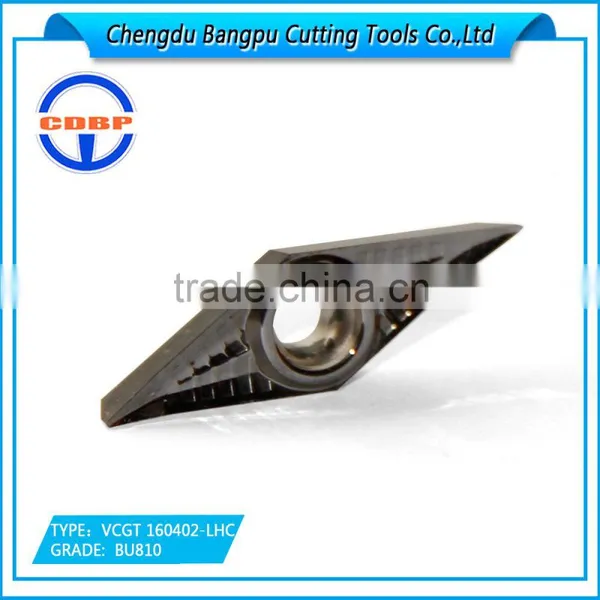

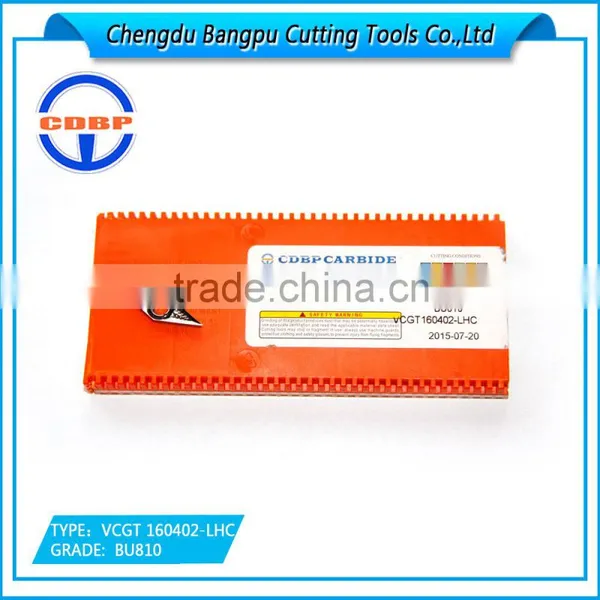

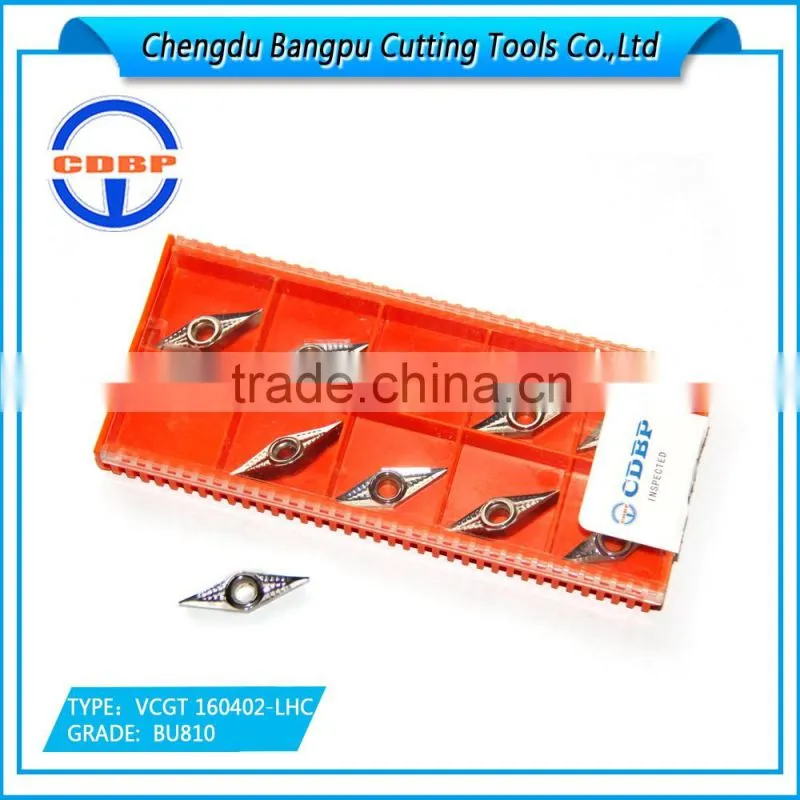

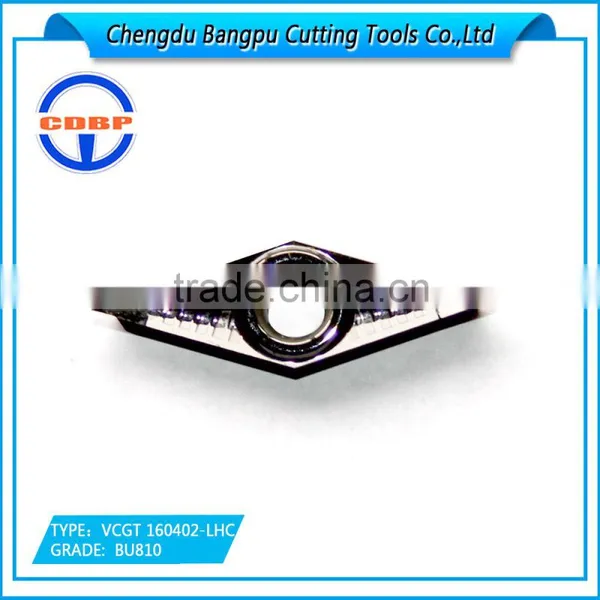

CNC Carbide Turning Insert VCGT160402-LHC BU810 for Aluminum Finishing

FOB Price

US$ 1 - 10 / Piece

100 Pieces(Min. Order)

Port Shanghai/Chengdu
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	CDBP
Model Number	VCGT160402-LHC	Material	Tungsten Carbide
Usage	Other, Internal Turning Tool, ISO Carbide Turning Inserts for aluminum	Hardness	45-65hrc
Coating	TiN/Al2O3/TiCN/TiAlN/CrN/TiAlCrN

Product Description

carbide grades for turning
Grade	ISO	color	recommend for application
BPC102	K10-K20	Black	CVD-coated cemented carbide,the hard substrate coated with a smmoth and wear-resisitant coating,can bear harsh intermittent cutting condition.Universal grade for all cast iron cutting at low to medium speed




BPC102A	K15-K25	Black	CVD-coated cemented carbide,thick brasion resistant coating on the high intensity gradient sintered base.Machining of gray and ductile iron at low to medium cutting speed. Security in wet and dry machining




BPC132	K15-K35	Black	CVD-coated cemented carbide.It conbines WC-Co high strengh matrix and TiN/TiCN/AL203 thick chemical coating,especially suitable for turning of gray iron,ductile cast iron




BPS101	P10-P20 K10-K20	black/yellow	CVD coated carbide grade,wear-resisitance materials coated on the gradient substrate which has both good hardness,toughness.Can bear high temperature.For steel and steel castings finishing to roughing processing,Continue cutting to light interrupt cutting.Machining of gray and ductile iron at low to medium cutting speed. For hard materials continuous cutting and light interrupted cutting from finshing to roughing.Wet and dry processing




BPS251	P15-P30 M10-M20	black/yellow	CVD coated carbide grade,Univeral grade,suitable for steel and cast continuous cutting and interrupted cutting finishing to roughing. Grades with a wide range of application.Stainless steel continuous cutting and interrupted cutting.




BPS371	P25-P40	black/yellow	CVD coated carbide grade,high-strength alloy substrate with thick wear-resistant coating. Machining steel and cast steel in bad conditons. Edge line security for interrupted cutting high metal removal rate.




BPG05B	M05-M15	Cyan-blue gray dark	With high hot hardness and good resistanceto plastic deformation. Suitable for high speed cutting and finishing process of austenitic stainless steel.quenched and carbon steel




BPG20B	M10-M30	Cyan-blue gray dark	PVD coated micro-grain carbide.Use for a varity of stainless steel finishing at medium to low cutting speed.When need excellent edge strenght and high surface vide the perfect ride cutting.A high thermal shock resisitance.Suitable for light interrupted cuts




BPG25B	M25-M40	Cyan-blue gray dark	PVD coated micro-grain carbide.WC-Co impact resistant cemented carbide matrix and TiALN containing SI nano coating combination,the surface has a very nano hardness,especially suitable for turtning and milling of carbon steel, stainless steel




BU810	N01-N15	metallic	Sub-micron grain,suitable for the continuous and interrupted finishing of non-ferrous metal

Quick Response	inquiry will be replied within 12 hours.
High Quality	Well-trained workers and more than 16 years’ experience.
Competitive Price	Directly from factory to save your money.
Short Lead Time	Being efficient: 3-7 days for samples and 10-30 days for quantity orders.
Flexibility	Small orders are acceptable for quick delivery and to help you reduce stock cost.
OEM	Custom fabrication according to your drawings, samples or designs.

Chengdu Bangpu Cutting tool Co., Ltd who specializing producing tungsten carbide insert, insert shim, carbide substrate for PCD, CBN insert , woodworking carbide insertsand doweldrills for more than 16 years. We have the advanced production line equipment,such as CNC automatic pressing machine of Osterwalder brand, CNC grinding machines of Ewag and Agathon brand.CVD,PVD coating furnance of Ionbond and Platit brand,etc., imported from develped countries to enhance our high quality.
If you are interested in our products, please feel free to contact us. Your special design is also welcomed here.
