abrasive product plane cutting wheel for railway

Specifications

1.Aluminium oxide made
2.Sharp,give clean cut
3.One net,strength,safe
4.Lower consumption
5.Use cutting metal,general steel

Factory Advantages

1.Near to raw materials region,low labor costs,so lower production cost,competitive price,

2.Locate in the center of China,low and almost same transport costs to any China main port,

3.Advanced technique,

4.More than 10 years production experience,

5.Strict quality testing,good after-sale service,

6.ISO9001:2000 certificate,

7.Abundant export experience,

8.Accept OEM brand,

9.Small order is accepted,

10.Free samples to test quality.

Raw Materials

High hardness abrasive:ensure cutting sharp sex

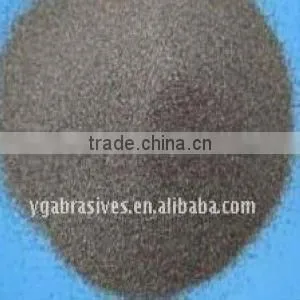

Brown aluminium Oxide

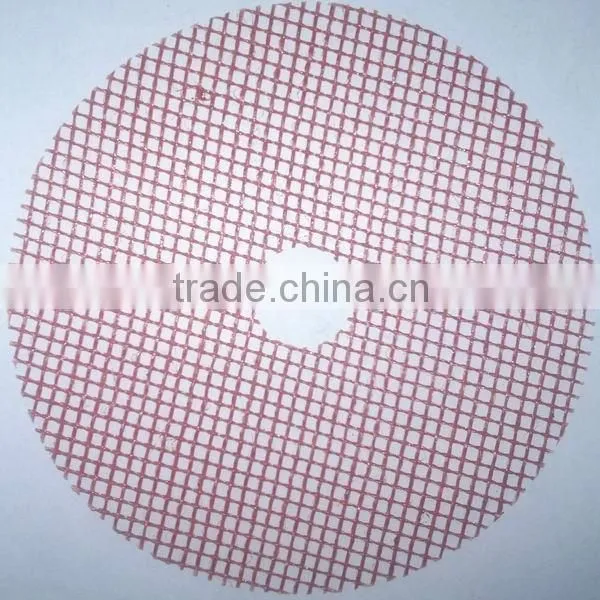

High quality reinforced net:ensure the security of cutting machine

High quality adhesive resin:ensure good durable performance

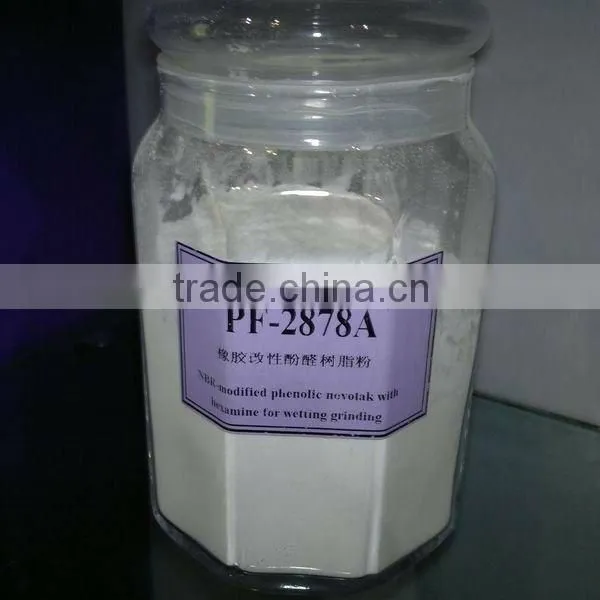

Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.

Product:

Size(mm)	Size(inch)	Shape	Description(A30#TBF)	Colour	Speed(r.p.m)	Speed(m/s)
400x3.0x25.4	16x1/8x1	Plane shape	1.Material:Aluminium oxide 2.Grit size:30#, 3.Hardness(1):T 4.Bonding agent:resin 5.Reinforced net:one or two fiberglass nets	Black	3800	80

(1)Generally,please chose reasonable hardness cutting wheel to reduce its attrition wear.These factors can affect the cutting wheel hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.

Feature:

1.High aluminium oxide grain concentration for aggressive cutting action and smoother running,

2.Imported resin bonded makes our wheel stronger,

3.Two reinforced fiberglass nets keep great strength and add cutting safety,

4.Sharp,fast and smooth cutting,high efficiency,

5.Tolerate high temperatures,won''t burn the workpiece''s surface,

6.High strength and shock resistance,so no vibration and no bouncing when cutting the workpiece,

7.Cutting the workpiece without crack,

8.Low noise generation and low dust production,

9.Possess superior abrasion resistance,low power consumption,durability.

Usage:

It was used for full material cutting,such as metal, steel,railway,profiles,tubes, carbon steel,casting,non-ferrous metal,soft metal,welds,solid materials

1.Aerospace

2.Communication engineering

3.Road traffic engineering

4.Building material

5.Military industry

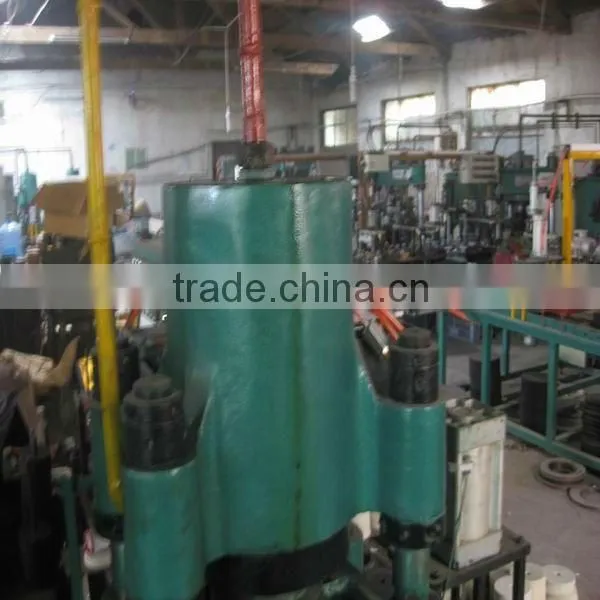

Domestic leading molding equipment:ensure the stability of the product performance

The process of checking the quality:

1.Check the cutting wheel's appearance:

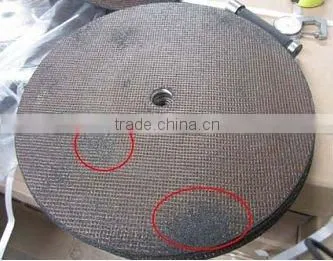

Whether the cutting wheel has attrition on the surface

Whether the cutting wheel has concave point on the surface

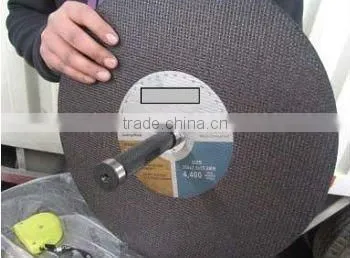

2.Check the cutting wheel's diameter

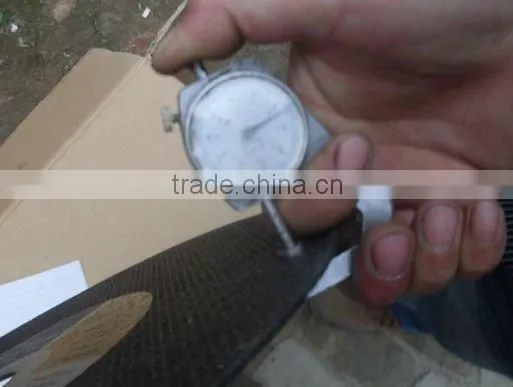

3.Check the cutting wheel's thickness

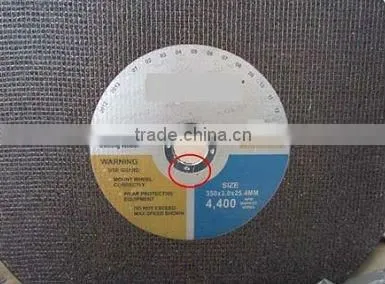

4.Check the cutting wheel's aperture:25.4mm

5.Check the cutting wheel's cutting capacity

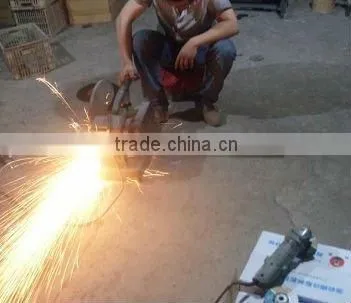

Test quality site:

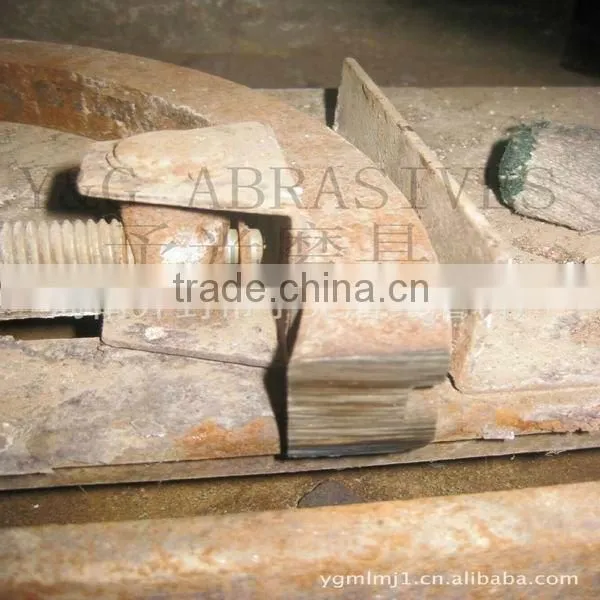

The workpiece after cutting:

The workpiece after cutting

6.The cutting wheel's test report

Size	Cutting Object	Cutoff Quantity	Efficiency SEC/cutoff	After Cutting Surplus
Φ350×3.0mm	5×5×0.3cm angle iron	5	5	Φ349mm
Φ350×2.0mm	5×5×0.3cm angle iron	5	7	Φ347mm
Φ300×2.0mm	5×5×0.3cm angle iron	5	6	Φ297mm

1.Do visually inspect all wheel before mounting for possible damage.

2.Do make sure operating speed of machine, does not exceed speed marked on wheel,its blotter or container.

3.Do check mounting flanges for equal size,relieved as required and correct diameter.

4.Do be make sure work rest is properly adjusted on bench,pedestal and floor stand grinder.

5.Do always use safety guard that covers a mimimum of one-half the abrasive wheel.

6.Do allow newly mounted wheel to turn at operating speed,with guard in place,for at least one minute before grinding.

7.Do ture off coolant before stopping wheel to avoid creating an out-of-balance condition.

 Safety Recommendations:

1.Wear protective goggles;

2.Wear protective gloves;
3.Wear ear protectors;
4.Wear dust respirators;
5.Observe safety recommendations.

Packing:

1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.

2.During storage,put the wheels horizontally,donot touch the floor directly.

3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees

Dimension mm	Dimension inch	Speed r.p.m	Speed m/s	G.Weight kg	Dimension L*W*H(mm)	Box Qty
						Piece/ bigbox
250x3.2x25.4	10x1/8x1	6100	80	10	260x90x260	25
300x3.2x25.4	12x1/8x1	5100	80	13	310x90x310	25
350x3.2x25.4	14x1/8x1	4400	80	18	360x90x360	25
400x3.2x25.4	16x1/8x1	3800	80	24	410x90x410	25
400x3.2x32	16x1/8x1 1/4	3800	80	23	410x90x410	25
