Home > Tools & Hardware > Abrasive & Grinding > Grinding Wheel > T27 Depressed Center Abrasive Grinding Disc for Metal

T27 Depressed Center Abrasive Grinding Disc for Metal

Name: T27 Depressed Center Abrasive Grinding Disc for Metal
Brand: PER CUT
SKU: 125080835

T27 Depressed Center Abrasive Grinding Disc for Metal thumbnail-1

T27 Depressed Center Abrasive Grinding Disc for Metal photo-1

US$ 0.55 - 0.85 MOQ: 3000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

PER CUT

Model Number:

T27 180x6.0x22.2mm

Contact Supplier Request Quote Chat Now

Henan Kaifeng City Yuguang Abrasives Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name PER CUT

Model Number T27 180x6.0x22.2mm

Shape Other, Dish, Depressed center

Abrasive Other, Corundum, Aluminium oxide

Bonding Agent Resin

Hardness R

Viscosity 20

Size 180x6.0x22.2mm,7x1/4x7/8 inch

Specifications

1.Depressed center
2.Aluminum oxide
3.Three reinforced net,strength,safe
4.High polishing ratio
5.Grinding all steel,metal

High hardness abrasive:ensure grinding sharp sex

High quality adhesive resin:ensure good durable performance

There are two kind of resin bond:powder phenolic resin and liquid phenolic resin.

Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.

Liquid phenolic resin:Material is easy to agglomerate,It easy to make mixed material nonuniform and cause abrasive partially hard.

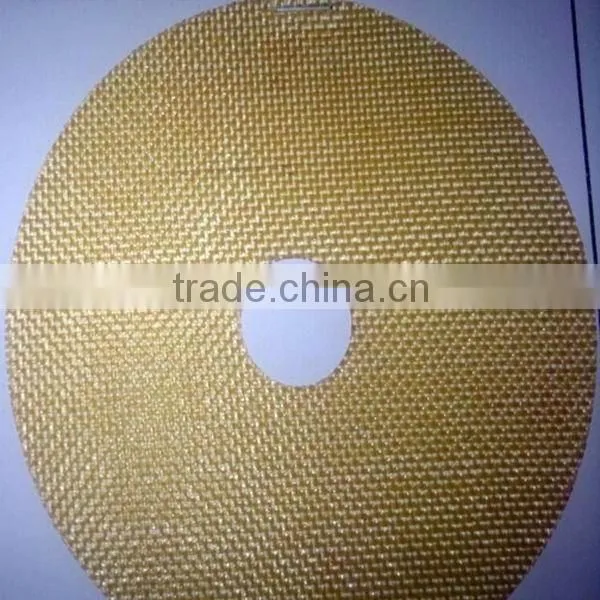

High quality reinforced net:ensure the product use security

Grinding Disc Product:

1.Size:125x6.0x22.2mm 5x1/4x7/8 inch

2.Shape:depressed center

3.Colour:black

4.Technical Specification:A30#RBF two or three reinforced fiberglass nets

1)A30#:Aluminum oxide material grit size 30#

2)R:Hardness grade,Generally,please chose reasonable hardness.These factors can affect the hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.

3)BF:Bonding agent is resin and Fiberglass reinforced

5.Speed r.p.m:12200

6.Speed m/s:80m/s

Grinding Disc Feature:

1.AO for long life and high material removal,

2.Shape allow greater surface grinding coverage,

3.Three sheets of fiberglass ans two paper sheets for durability and safety,

4.Bear high shocking and bending,

5.Avoid damege caused by vibration of wheel on processing surface,

6.High strength,sharpness and low consumption make grinding efficient,economical and safe

Grinding Disc Application:

1)the industry maybe use this wheel

1.foundaries

2.Shipbuilding,

3.machine builders,

4.Metallurgy,

5.manufacturing of power vessels,

ing,construction.

2)application:

grinding wheel is used for grinding metal,like cast iron,steel pipe,alloy steel, quench steel, tool steel ,steel bar, the burr and gross edge of steel plate, steel welds, etc.

Domestic leading molding equipment:ensure the stability of the product performance

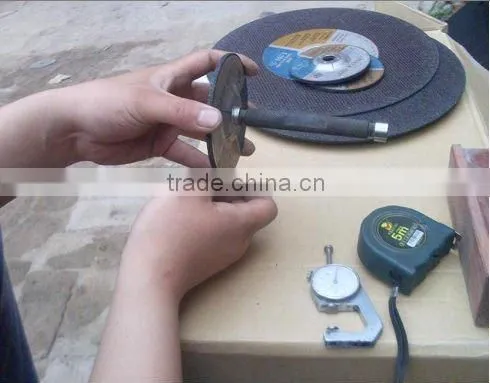

1.Check the disc's appearance:

2.Check disc"s diameter

3.Check disc"s thickness

4.Check disc"s inner aperture

Safety Recommendations:

1.Wear protective goggles
2.Wear protective gloves
3.Wear ear protectors
4.Wear dust respirators
5.Observe safety recommendations

Test quality:

1.Check disc:Before installing the disc,please check the disc carefully, to see if it is cracked and damage.Make sure the disc emit clear voice with wooden hammer or rubber hammer.

2.Check machine:Before installing the disc,also please check machine's rotate speed,using the disc in the range of specified maximum speed.

3.Please install the disc smoothly, medium tightness.After installation, please make the disc idle about 1minute before grinding workpiece.

4.Make sure workpiece is stable.Hold the tool so that the disc is at a perpendicular angle to the workpiece,

5.Keep a light touch, as the disc will break under too much pressure.

Grinding Disc capacity

disc test 1	Product:	100x6.0x16mm
	Grinding timings	15 minutes
	Weight of flap disc before test	66.6g
	Weight of flap disc after test	63.7g
	Flap disc consumption after 15 minutes	2.9g
	Grinding object/workplace	Deformed steel bars
	Grinding object wt before test	1615.0g
	Grinding object wt after test	1576.7g
	Grinding object consumption after 15 minutes	38.3g
	Grinding ratio	1:13.206

disc test 2	Product:	100x6.0x16mm
	Grinding timings	15 minutes
	Weight of flap disc before test	66.4g
	Weight of flap disc after test	63.7g
	Flap disc consumption after 15 minutes	2.7g
	Grinding object/workplace	Deformed steel bars
	Grinding object wt before test	1576.7g
	Grinding object wt after test	1529.7g
	Grinding object consumption after 15 minutes	47g
	Grinding ratio	1:17.407

disc test 3	Product:	100x6.0x16mm
	Grinding timings	15 minutes
	Weight of flap disc before test	68.1g
	Weight of flap disc after test	65.0g
	Flap disc consumption after 15 minutes	3.1g
	Grinding object/workplace	Deformed steel bars
	Grinding object wt before test	1529.7g
	Grinding object wt after test	1481.3g
	Grinding object consumption after 15 minutes	48.4g
	Grinding ratio	1:15.612

Main grinding phenomenon after attrition:

1.Self-excited vibration and workpiece surface appear regenerative ripplingin grinding process.

2.Grinding noise increase,

3.The workpiece surface appear grinding burn,

4.Grinding capacity increase or decrease rapidly,

5.Grinding accuracy go down,

6.Grinding surface roughness increases.

These phenomena are not independent, all kinds of phenomena caused by correlation. Among them particularly pay attention to the workpiece surface"s thermal damage due to grinding temperature is too high.Also pay attention to the roughness and the accuracy decline due to self-excited vibration.

Grinding Disc Packing:

1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.

2.During storage,put the wheels horizontally,donot touch the floor directly.

3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees

Order No	Dimension mm	Dimension inch	Speed r.p.m	Speed m/s	G.Weight kg	Dimension LWH(mm)	Box Qty
Order No	Dimension mm	Dimension inch	Speed r.p.m	Speed m/s	G.Weight kg	Dimension LWH(mm)	Piece/ box	Piece/ bigbox
27A1004016	100x4.0x16	4x5/32x5/8	15200	80	23	335x230x305	10	300
27A1006016	100x6.0x16	4x1/4x5/8	15200	80	23	545x230x175	10	200
27A1154022	115x4.0x22.2	41/2x5/32x7/8	13300	80	19	380x260x217	10	180
27A1156022	115x6.0x22.2	4 1/2x1/4x7/8	13300	80	19	380x260x190	10	120
27A1254022	125x4.0x22.2	5x5/32x7/8	12200	80	22	410x280x217	10	180
27A1256022	125x6.0x22.2	5x1/4x7/8	12200	80	22	410x280x190	10	120
