Home > Tools & Hardware > Abrasive & Grinding > Grinding Wheel > Depressed Fiberglass Backing Flap Disc for Inox

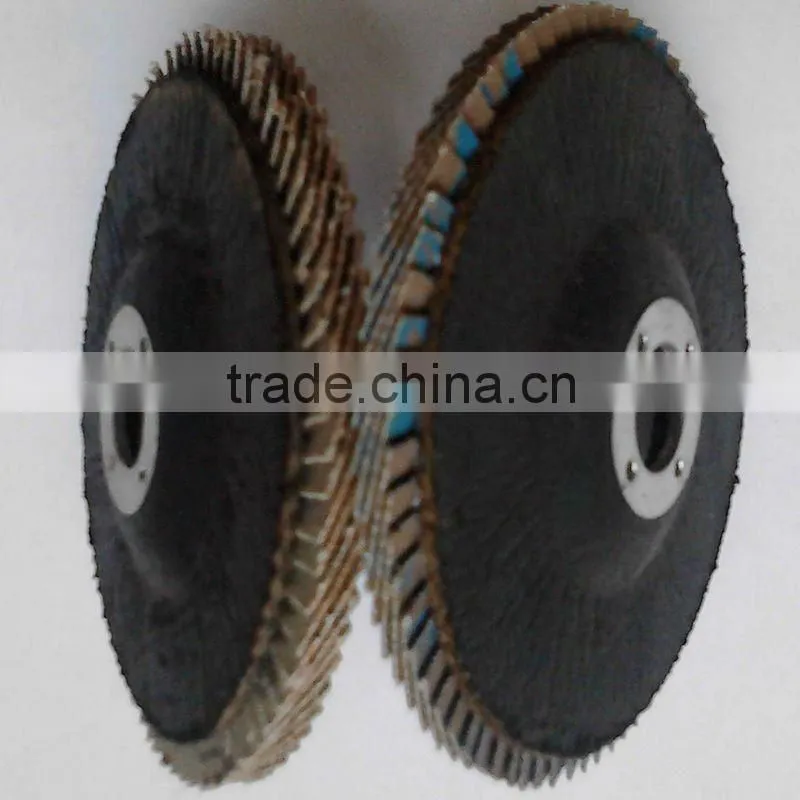

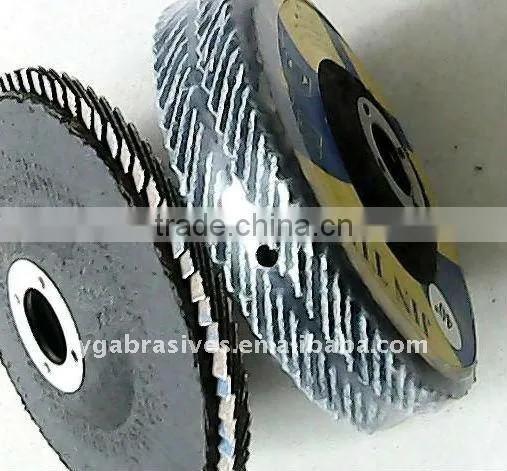

Depressed Fiberglass Backing Flap Disc for Inox

Name: Depressed Fiberglass Backing Flap Disc for Inox
Brand: PER CUT
SKU: 125080673
Availability: InStock

Depressed Fiberglass Backing Flap Disc for Inox thumbnail-1

Depressed Fiberglass Backing Flap Disc for Inox photo-1

US$ 0.3 - 0.65 MOQ: 5000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

PER CUT

Model Number:

T27 inch 100x16mm

Contact Supplier Request Quote Chat Now

Henan Kaifeng City Yuguang Abrasives Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name PER CUT

Model Number T27 inch 100x16mm

Type Abrasive Disc

Size 100x16mm 4x5/8 inch

Specifications

1.Zirconium abrasive cloth
2.Falp backing:fiberglass
3.Grit size:120#
4.Polishing stainless steel,inox
5.Meet ISO 9001demand

depressed fiberglass backing flap disc for inox

zirconium abrasive cloth

Fiberglass backing

Fiberglass backing feature:

The fiberglass backing does not damage or foul the surface worked in the case of accidental contact. It provides good strength while maintaining a satisfactory degree of flexibility.

1.Lighter,quieter operation

2.Will not splinter or smear on the workpiece

3.Backing will wear uniformly with abrasive cloth

Product:

1.Type: Type 27--Flat used when grinding on flat surface,correct angle recommended between 0-15 degrees,best choice for smooth finishing

2.Size: 100x16mm 4x5/8 inch

3.Material:zirconium abrasive cloth

4.Flap backing: fiberglass backing

5.Bonding agent: resin

6.Grit size:120#

7.Flap abrasive cloth number: 72 pages

8.Each flap abrasive cloth size: 25x17mm

9.Speed r.p.m: 15200

10.Speed m/s:80m/s

Usage:

It is possible to use it for stainless and the stainless steel,ionx, etc. Flap discs are easy to use and require very little surface presseure. Their especially cool cutting permits light contouring and avoids burning work-pieces by overheating them

Feature:

Flap discs remove aggressively.Their removal power is equal to depressed center wheels but with greater safety, better finishing and less fatigue.

1.high flexibility,

2.terrific sharpness and durable

3.strong rubbing strength,

4.dispels the heat fast,

5.low noise,

6.steady and lasting surface processing result,

7.suitable for inner container welding line grinding.

Flap disc grinding test 1	Product: flap disc	100*16mm grit size:60#
	Grinding timings	10 minutes
	Weight of flap disc before test	58g
	Weight of flap disc after test	54.8g
	Flap disc consumption after 10 minutes	3.2g
	Grinding object/workplace	modular ring
	Grinding object wt before test	746.8g
	Grinding object wt after test	691.7g
	Grinding object consumption after 10 minutes	55.1g
	Grinding ratio	17.2
	Gringing speed	5.5

Flap disc grinding test 2	Product: flap disc	100*16mm grit size:60#
	Grinding timings	10 minutes
	Weight of flap disc before test	54.8g
	Weight of flap disc after test	53.8g
	Flap disc consumption after 10 minutes	1.0g
	Grinding object/workplace	modular ring
	Grinding object wt before test	691.7g
	Grinding object wt after test	648.1g
	Grinding object consumption after 10 minutes	43.6g
	Grinding ratio	43.6
	Gringing speed	4.4

Flap disc grinding test 1	Product: flap disc	100*16mm grit size:60#
	Grinding timings	10 minutes
	Weight of flap disc before test	53.8g
	Weight of flap disc after test	52.2g
	Flap disc consumption after 10 minutes	1.6g
	Grinding object/workplace	modular ring
	Grinding object wt before test	648.1g
	Grinding object wt after test	589.4g
	Grinding object consumption after 10 minutes	58.7
	Grinding ratio	36.7
	Gringing speed	5.9

Dimension mm	Dimension inch	Abrasive Cloth	Grit Size	Speed r.p.m	G.Weight kg	Dimension LWH(mm)	Packing pcs/carton
100x16	4x5/8	A,ZA,C	36# 40# 60# 80# 120#	15200	8	430x230x260	200
115x22.2	4-1/2x7/8	A,ZA,C		13300	9	490x260x260	200
125x22.2	5x7/8	A,ZA,C		12200	11	530x280x260	200
150x22.2	6x7/8	A,ZA,C		10200	13	330x330x260	100
180x22.2	7x7/8	A,ZA,C		8500	15	400x400x260	100
