Cold room freezer room freezer storage heat exchanger air cooler evaporator

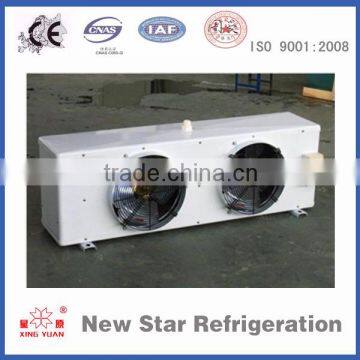

Characteristics for evaporator

 1.Scientific structure, high efficient, frost steadily, save power and low running cost;

 2. Equip with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;

 3. Copper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;

 4. Equip with stainless electric heater in high insulating property, defrost efficiently in shot time;

 5.The heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.

 6.Aluminum and painted stain board, to meet your different needs.

Sphere of application

High temperature type: (cold room temperature 12~-2oC)fin space:4.5mm;

Medium temperature type: (cold room temperature-2~-10 oC) fin space:6.0mm;

Low temperature type: (cold room temperature-10~-31 oC)fin space:9.0mm;

Attention of model selection

When the cold-room temperature is aroud 0 oC, select 8 oC to be the difference between compressor evaporating temperature and cold-room temperature.

when the cold-room temperature is aroud -18 oC select 7 oC to be the difference between compressor evaporating temperature and cold-room temperature.

when the cold-room temperature is aroud -25 oC, select 6 oC to be the difference between compressor evaporating temperature and cold-room temperature.

According to selected evaporating temperature, compressor’s capacity = the cold-room loading × 1.15.

Cold Room Features:
1. Modular insulation panel with cam lock, easy to install, low installation cost
2. Refrigeration: R22, R404A
3. Temperature Range: From - 35°C To + 55°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof
6. Branded refrigeration fittings
7. Long life cycle
8. Full automatic control with easyoperation and management
9. Defrost Type: Electric defrosting, Water defrosting
10. High efficiency and energy saving design

11.   Certificate: ISO 9001:2000, CE

12.   Brand Name: Xing Yuan

13.   Dimension(L*W*H): as per customers' requirement

14.   Voltage: 380V, or 220V

15.   Power(W): 50HZ

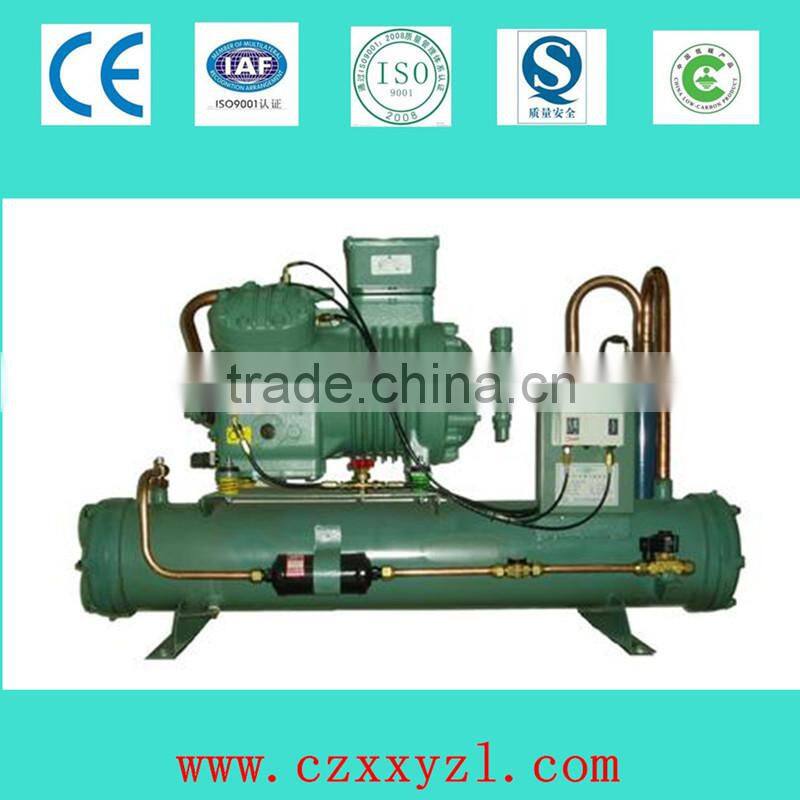

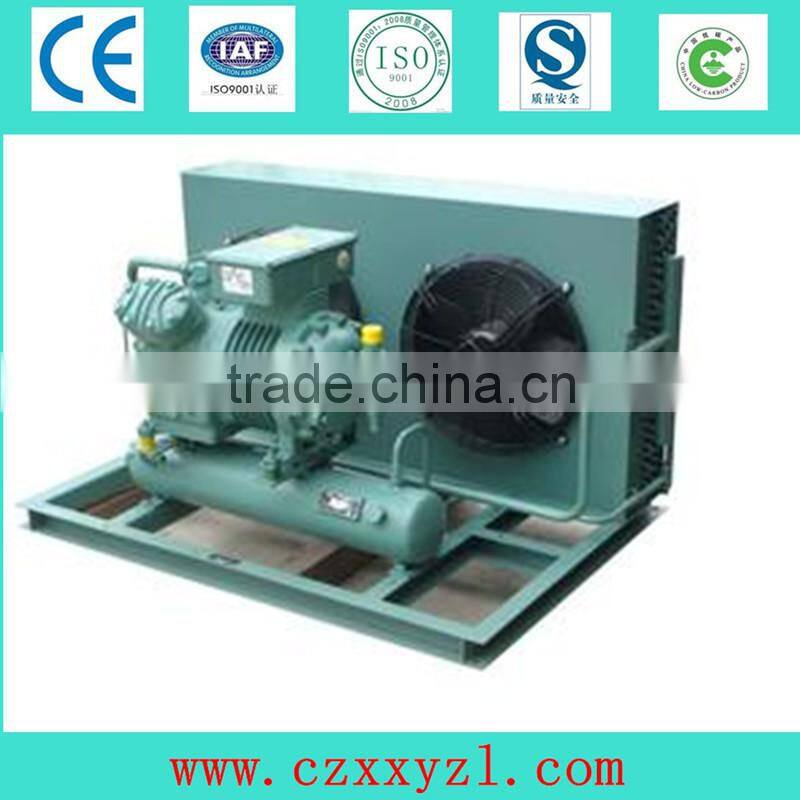

16.   Compressor: Bitzer, Copeland

17.   Dimension(L*W*H): customized

18. Insulation Material: polyurethane sandwich insulation panel

19. After-sales Service Provided: Engineers available to service machinery overseas

20. Place of Origin: Jiangsu, China (Mainland)
