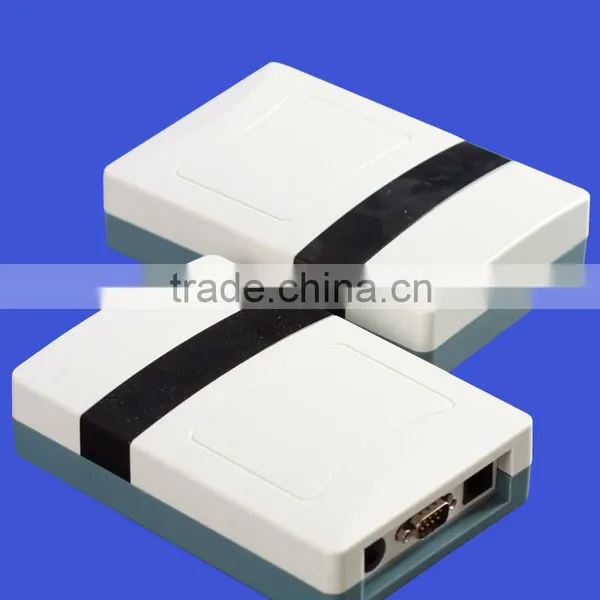

MAX-810 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such aslogistics, access control, attendance system, anti-counterfeit and industrial production process control system.
1.Self-intellectual property
2.Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
3.902~928MHz frequency band(frequency customization optional)
4.FHSS or Fix Frequency transmission
5.RF output power up to 30dbm(adjustable)
6.Built-in wideband antenna with effect distance up to 500mm
7.Support auto-running and interactive work mode
8.Low power dissipation with single +9V DC power supply
9.Support TCP/IP/ RS232/USB for option and Wiegand interface
10.Output format and parameters configurable
11.Provide SDK and demo software to facilitate further development
DB9 Male | ||
Pin |
Symbol |
Comment |
1 |
NC |
Reserved |
2 |
TXD |
TXD of RS232 |
3 |
RXD |
RXD of RS232 |
4 |
NC |
Reserved |
5 |
GND |
GND |
6 |
WD0 |
Wiegand data0 |
7 |
NC |
Reserved |
8 |
WD1 |
Wiegand data1 |
9 |
GND |
GND |
A. Absolute Maximum Ratings
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
15 |
V |
Operating Temp. |
TOPR |
-10~+60 |
°C |
Storage Temp. |
TSTR |
-25~+80 |
°C |
B. Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
6 |
9 |
12 |
V |
Current Supply |
IC |
|
400 |
700 |
mA |
Operation Freq. |
FREQ |
902 |
|
928 |
MHz |
Effective Distance* |
DIS |
0 |
100 |
500 |
mm |
* Effective Distance depends on tags and operating environment.
