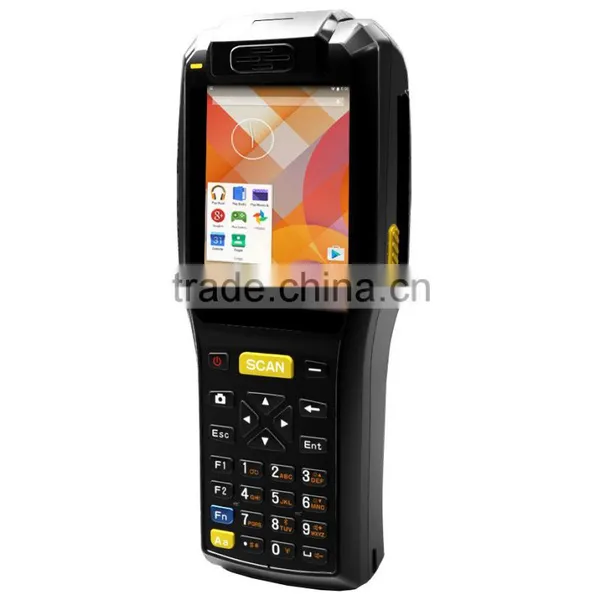

PDA 3505
HANDHELD TERMINA
Android 4.4 platform
IP65 Protect
Compact design

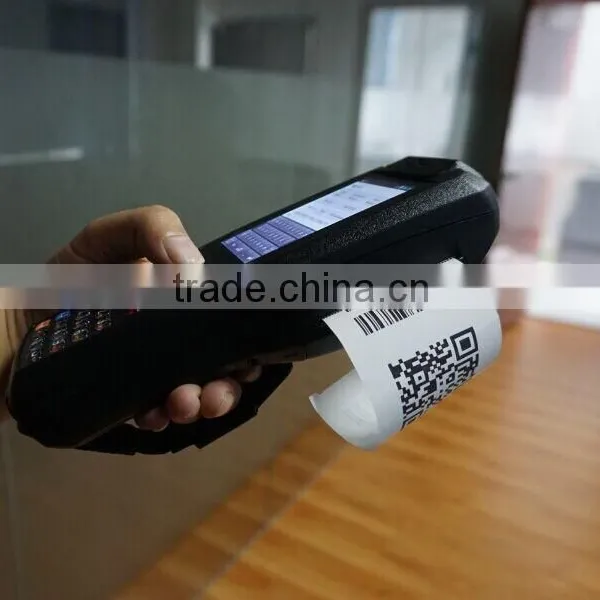

Internal 58mm thermal printer
Internal 3G/GPRS
Bluetooth,WiFI,GPS

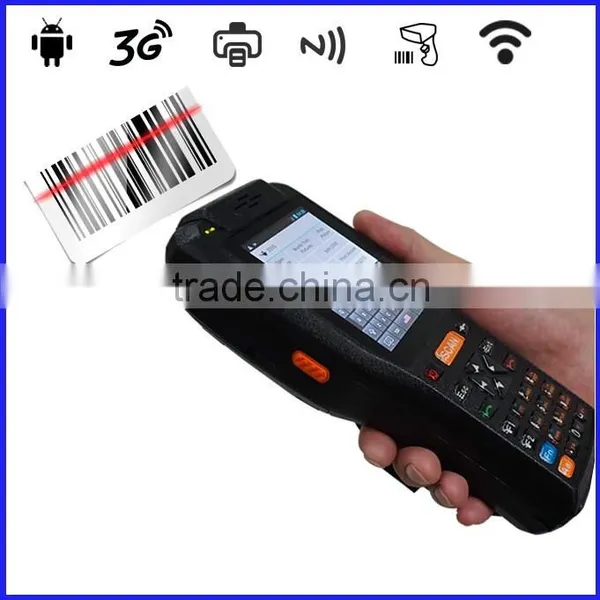

1D2D Scanner
PSAM Encryption
Internal NFC
5.0M pixs auto focus camera
Dual core 1.4GHz processer
Provide full technical support
ECIFICATI
INDUSTRY HANDHELD TERMINAL
PDA-3505
HARDWARE SPECIFICATION
PROCESSOR
CPU : MediaTek MT6572
SPEED : Dual-core 1.4GHz
MEMORY
MEORY : 512MB/1GB(optional)
FLASH :4GB
EX-STORAGE: Micro SD up to 32GB
DISPLAY
SCREEN : 3.5Inch Color TFT
INPUT
KEYBOARD : 27 Buttons and 2buttons
TOUCH : Capacitive Multi-Touch
COMMUNICATION
Wi-Fi : IEEE 802.11b/g/n BLUETOOTH : BT4.0
3G NETWORK: WCDMA 2100MHz TELPHONE: 3G And GSM LOCATION: Internal GPS
CAMERA(optional)
Standard: Rear 5.0Mpixs Auto Focus
FLASH: LED Light
POWER
BATTERY: 7.4v 3200mAH Recharge
ADAPTER : DC9V/1A
PRINTER
TYPE : Thermal receipt / label
WIDTH :58mm
ROLL DIAMETER : Max. Ø 30mm
INGRESS PROTECTION
IP: IP65
DROP: 1.8m(Standard)
TEMPERATURE
OPERATING TEMPERATURE : -10 ~ 50℃ STORAGE TEMPERATURE : -30 ~ 65℃
HUMIDITY
OPERATING HUMIDITY : 10 ~ 90%
OPERATING HUMIDITY : 10 ~ 90%
DATA COLLECT
BARCODE SCANNER
1D : EAN 8, EAN 13, EAN 128, RSS, Postnet, Code39, Code93, Code128,Codabar, ITF, UPC A, UPC E
2D : PDF417, QR Code, Maxicode. GS 1, Datamatrix, Aztec(Optional)
NFC
STANDARD : ISO18092,ISO14443,ISO15693 Write/Read
IC CARD
STANDARD : ISO7816(Optional)
INTERFACE
INTERFACE
STANDARD : Micro USB,RS232C,DC Port, Earphone port,SIM&TF slot Optional : IC Card slot
SOFTWARE
PLATFORM
OS: Android 4.4
SUPPORT
TECHNICAL SUPPORT: Test Demo,SKD code,API Document
DIMENSION SPECIFICATION
DIMENSION
W x D x H(mm) : 209*83*49mm
WEIGHT
0.58kg (with 3200mAh battery)
