Specifications
side-shift garden tractor loader backhoewith CE
high quality

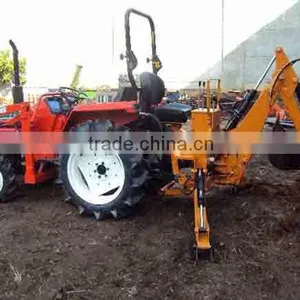

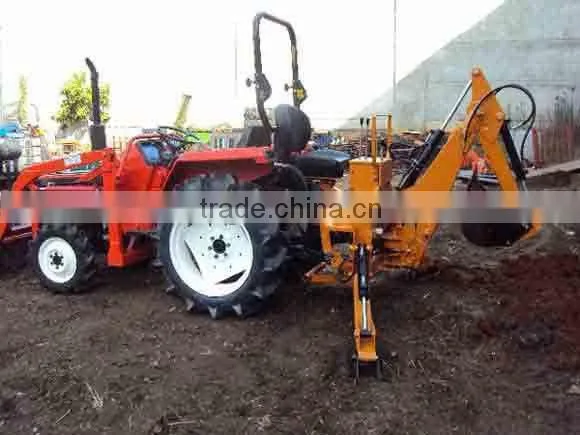

side-shift garden tractor loader backhoe
It's ideal for digging irrigation trenches, breaking up rocky soil, piping preparation, channelling rainfall runoffs and roadsides, planting and relocating trees.
1. Suited for 20-40hp tractors
2. With 12'' Bucket
Optional:
1. Hydraulic system ( PTO gearbox & PTO pump & oil tank )
2. 14'' ,16'', 18'' bucket
Model |
BH5 | BH5R |
3-Point Linkage: |
Cat. 1 & 2 | Cat.1&2 |
(A) Working Length: |
2900mm | 2900mm |
(B) Digging Depth: |
1950mm | 1950mm |
(C) Extend Height: |
3170mm | 3170mm |
Unload Height: |
2000mm | 2000mm |
Leg Spread: |
1700mm | 1700mm |
Swing Angle (boom): |
180 degrees | 180 degrees |
Work Pressure (bar): |
16mpa | 16mpa |
Max. Pump Capacity: |
NO | 14L(L/min@540rpm) |
Tank Capacity: |
NO | 12L |
Sliding Width: |
840mm | 840mm |
Weight with Bucket: |
550kg | 580kg |
. |
PRODUCTION DESCRIPTION
......
CE CERTIFICATE
FACTORY SHOW
EXHIBITION NEWS
COMPANY INFORMATION
Changzhou Farmer Helper Machinery Co.,Ltd (FMH) is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.
The factory area is more than 20000 square meters and FMH owns 2 units of Metal Laser Cutting Machines and more than 80 precessing machines.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means,
the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
FMH has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,
Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers, etc.
more than 50 serials and more than 150 models of various implements
