D667 FPV Audio Video TX & RX Transmitter Receiver 5.8GHz for Electric UAVs Helicopter
Feature
1. With channel button to change channels easily
2. Display channel number
3. Channel memory function for power-off
4. Band ABE,ABEF, F groups frequency optional

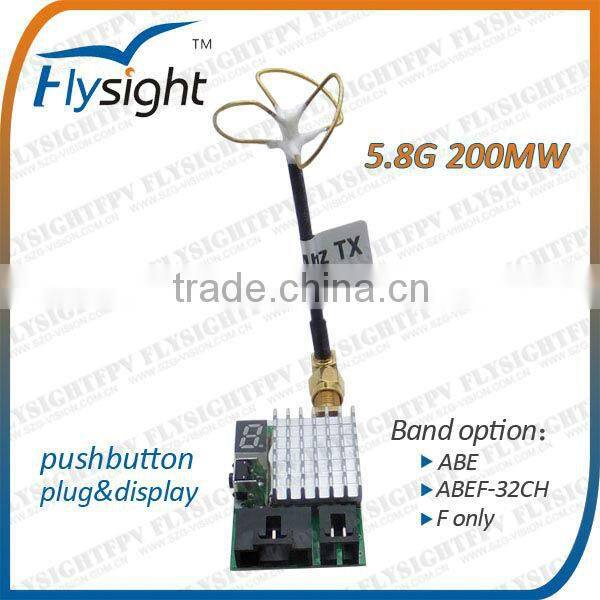

5.8GHz 200mW FPV Wireless AV TX RX Transmitter Receiver
Very light and ultra mini size
The mini but powerful 5.8G 200mw FPV Wireless AV TX/RX Transmitter Receiver would make your fly to 2 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.
Specification
TX
Transmitter frequency:5645-5945MHz;32CH
Transmitting Power:200mW/23dBm
Transmitting distance:>2000m(open area)
Frequency control:built-in frequency and phase lock loop
AV input:analog AV signal input
ANT connector:SMA/RPSMA
power supply:6-16 volts
Current supply:200mA

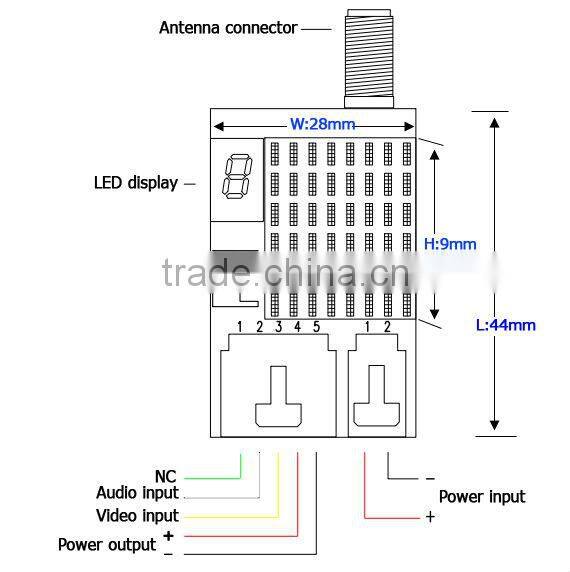

Size:57*27.2*12mm
Net weight:16g(no cable and antenna)
ABE,ABEF,F Group Channels Optional
RX
Receiving frequency:5665-5945MHz;32CH
Receiving sensitivity:-90dBm
Frequency control:built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA/RPSMA
Power supply voltage: 6-16V
Supply current: 100mA
Dimension: 55x40x15mm (aluminium alloy caase)

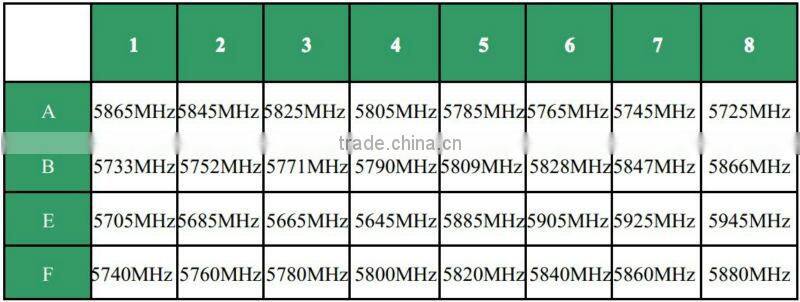

Frequency of each channel:
CH1:5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945

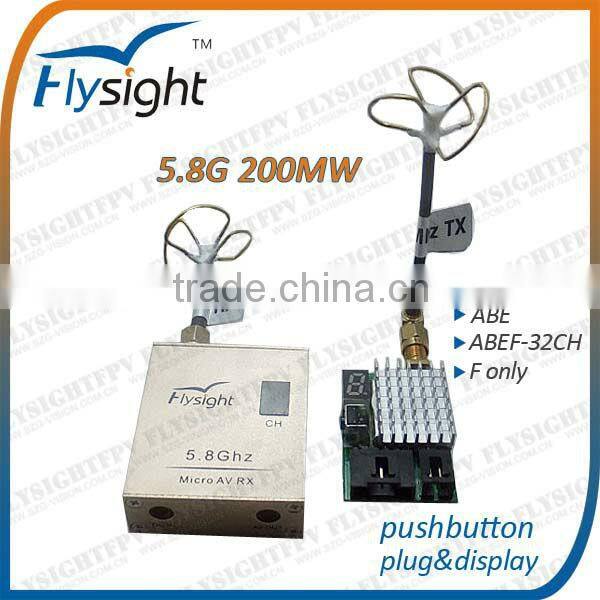

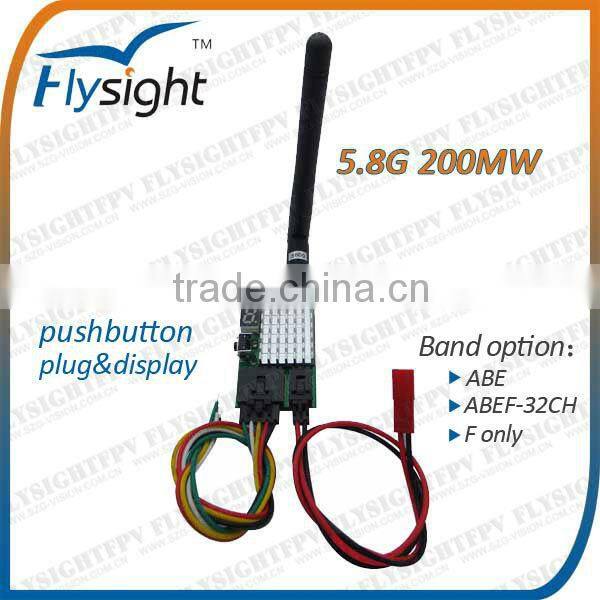

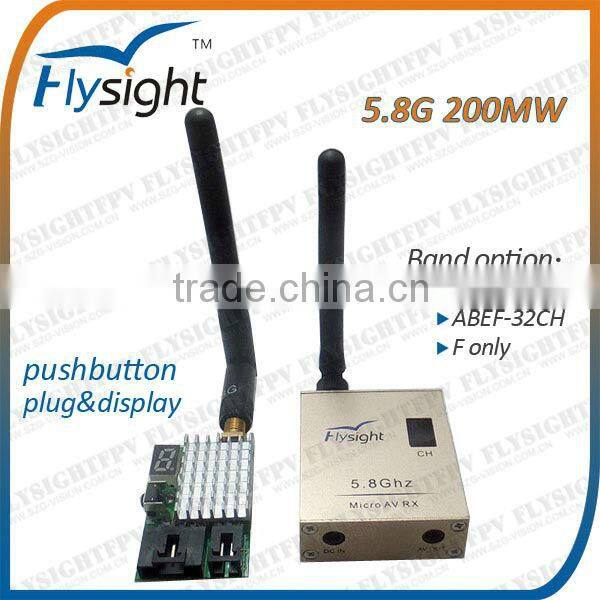

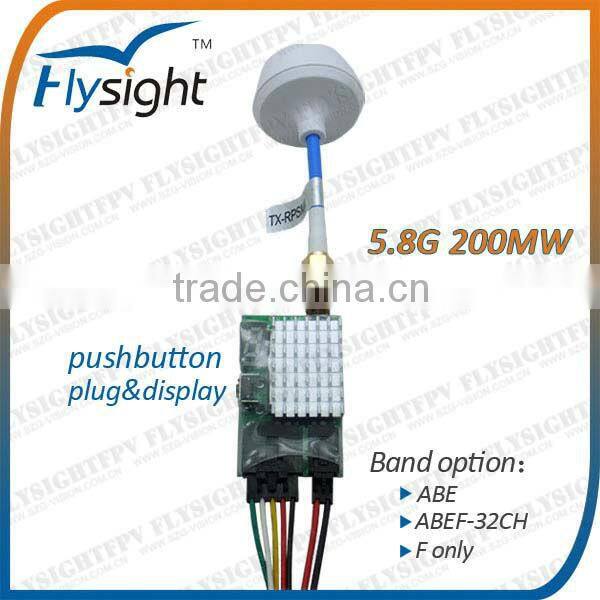

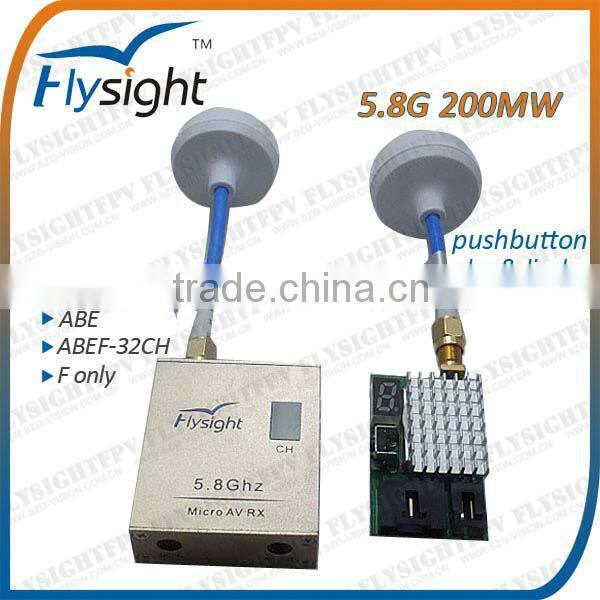

Product Show
Remark:
1. The transmitter's power input is ranging from 6-16V,however the voltage output from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
2. The receiver's power input is ranging from 6-16V,dual AV output is supported.
Note:
1. Antennas must be attached before powering on.
2. The av cable uses 3.5mm plug on the receiver RC306
FAQ:
1. FOB Price:
At present, we only offer EXW price to all our customers for small orders, but for a large quantity order shipped by container, we will offer you FOB Shenzhen price.
2. Payment term:
At present, we only accept T/T and West Union payment method.
3. Minimum Order Quantity(MOQ):
No matter what quantity you want, we will try our best to offer it to you. Usually, our M.O.Q is 50 pcs/kits for each item.
4. Price list:
Please visit our website: and choose your interested products. Price list of the items you selected will be sent to you after receiving your return email. Our price will depend on your order quantity. We are a manufacturer of our products, so we promise to offer you the best price.
5. Delivery time and OEM Order
If the products are NOT made based on your Trade Mark, we can send the goods to you in one week after we receive your payment. There is no problem for us to make the products based on your brand, but the price should include the cost of gift box and you should provide us your design. The delivery would be around 35 days due to printing the gift boxes from the very beginning,but it would only need around 20 days for the repeated order.
6. How to get the sample:
So sorry to say that we don't offer free samples. When you confirm the model that you need, we will make a PI for you, including the freight charge. When we get your payment, we will send you the samples, usually within 1-2 days.
7. Shipping :
We normally suggest our customers to choose DHL Express if the order is not so large. For a large order, we recommend air freight to save your shipping cost. The shipping cost will depend on the total weight of your order.
8. Warranty:
We offer 1 year warranty of free repair or replace for all our products. If the goods have quality problem, we will replace within 3 months. In this case, we will have the faulty goods returned at first, and then we send the new ones toyou with your next order.
