flysight new product TX502 5.8ghz 200mW 40 ch mini light fpv video transmitter /w race band for race drone
Product Description
1.features
1).5.8G 200mW 40 Channels Tx only
2).With channel button to change channels easily Display
3).Channel number Channel memory function for power-off
4).Channel Frequecny Optional from the 3groups(3rd groups as default)
5) mini, very light for race drone
2.specificartion
| Transmitter frequency | 5645-5945MHz;8CH |
| Transmitting Power | 200mW/23dBm |
| Transmitting distance | >2000m(open area) |
| Frequency control | built-in frequency and phase lock loop |
| AV input | analog AV signal input |
| ANT connector | SMA(inside the needle) or RPSMA |

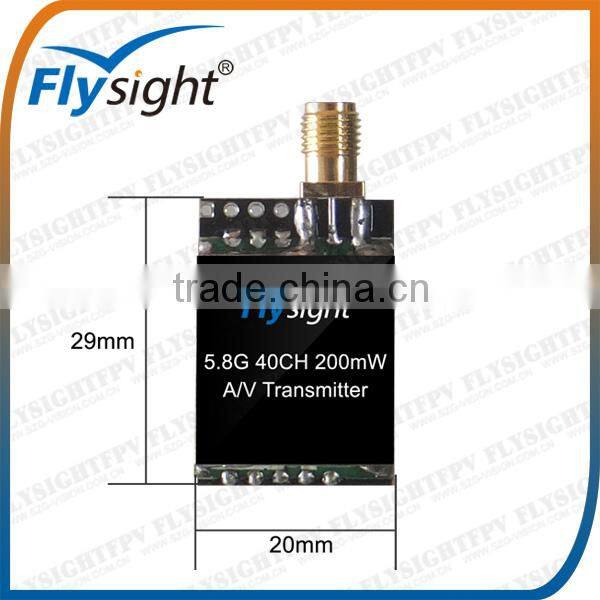

| SIZE | 20mm*29mm |
| output voltage | 5 V |
| weight | 6g(no cable and antenna) , 15g with antenna |
1).Very light and ultra mini size.
2).The mini but powerful 5.8G 200mw transmitter would make your fly to 1-2 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.
3). Shenzhen flysight audio video transmitter
3. Flysight frequency (/w Race Band Total 40 CH)
4.Our Product Advantages:
Compatible Fatshark FPV Tx Transmitter
1. We promise not to do the domestic market, avoiding cross sales.
2. Original products for our own brand Flysight, quality is warranty.
3. We aim to provide customers high quality products and services.
4. Flysight hot selling product models:F350,TX502,TX506 RC801 ,SPX01,TX5807, TX58025,TX5802,TX5804,TX5812,TX5820 V2,RC306., etc.
5. OEM orders are welcome!

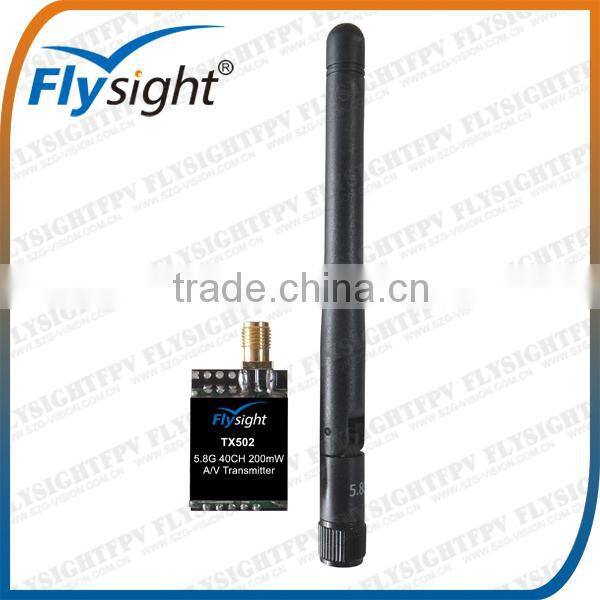

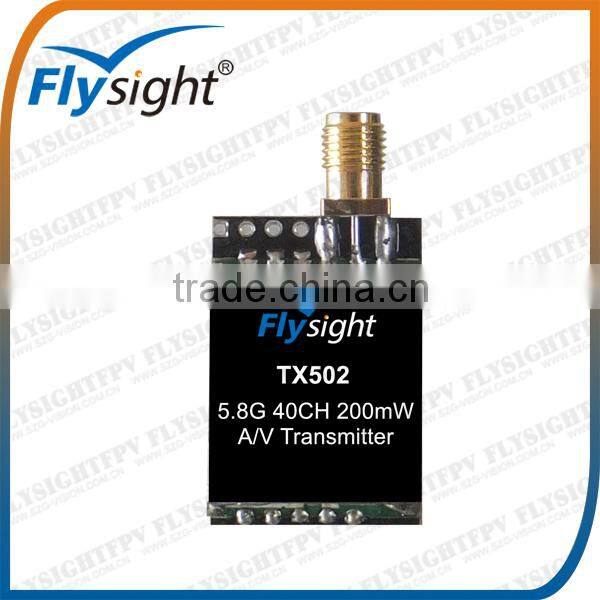

Product Image
TX502
Trade Terms
♦ Payment: T/T in advance (Western Union or PAYPAL are welcomed)
♦ Production lead time 500PCS: 5-7days, 500~1000PCS:10-15days, above 5000PCS 15-20days.
♦ Sample can be delivered in 3days
♦ Shipping freight are quoted under your requests
♦ Shipping port: Shenzhen, Mainland China
♦ Discounts are offered based on order quantities
♦ MOQ:10PCS
Operating Instructions
How To Use
1. Connect RX/TX according to the schematics above .After powering on the RX/TX, “LED display” will show the initial channel number.
2. By quick pressing “Channel button” one times the channel number will change. While pressing button the channel number will increase in order of 1,2,3,4,5,6,7,8. “LED display” will show current channel number.
3. By long pressing (at least 3 seconds) “Channel button” the frequency band setup will appear and can be modified.
1).the letters for A,B,E,F band icons will show as follow:
“A” is A band, “B” is B band, “E” is E band, “F” is F band.R is Race band.
2).Long press “Channel button” to enter frequency band setup model, “LED display” will show the current frequency band, and the icon will lights up permanently; at this moment ,each quick pressing on “Channel button”, the frequency band will change in order of A,B,E,F.
Long pressing on “Channel button” again, it will quit from frequency band setup mode and the frequency is also be changed.
3). If you want to check the current working frequency band, please long press “Channel button”. Once again long pressing “Channel button” to quit menu.
Important notes
1.After performing frequency band setup ,please check properly quitting frequency band setup mode. Otherwise you can't change frequency correctly.
2. The unit will save current channel while changing and power off.
