D890 Flysight Built-in Receiver 7" Wireless 5.8GHz HD FPV Monitor for DJI Phantom 2 Gopro FPV Kit
Features
*Anti reflective matte screen
*Housing built-in for battery (batteries soon available)
*It is very bright in daylight 300cd / m²
*Build-in two 5.8GHz video receivers and a diversity system that will automatically select the best video signal
*It is equipped with an efficient rigid sun hood
*Photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )
*It has video outputs and Dc output to connect and power other equipmen
*A composite video input will allow you to display external sources
*HDMI video input
*Power 7 - 28V and a DC output for powering a pair of video googles or other equipment (Dcout = Dc in, MAX 1A)
*Channel selection via button (no more micro switch !)
*Built in speakers to hear the sound ( from your video Tx or video input sources )
Specification
|
Display Screen |
Diagonal |
7 inch |
Resolution |
1024X600 |
|
Contrast |
700:1 |
|
Luminance |
300cd/m2 |
|
|
Wireless Receiving |
Sensitivity |
-90dBm±1dBm |
Channel |
32Channel ( 4 Band X 8 Channel ) |
|
Antenna Port |
2 X SMA,50ohm |
|
Diversity receiving |
Antenna diversity |
|
TV System |
NTSC/PAL |
|
Video output level |
1.0Vp-p Typ,75ohm |
|
Audio output level |
1.0Vp-p Typ,10Kohm |
|
AV Port |
RX1 AV OUT |
Video,Audio output |
RX2 AV OUT |
Video,Audio output |
|
DIV AV OUT |
Diversity receiving, Video,Audio output |
|
AV IN |
Video,Stereo Audio input |
|
HDMI IN(A Type) |
Support HDMI 1.3 Digital Input, Support HDMI Audio in |
|
Built-in Microphone |
8Ω/1W X 2 |
|
Power Supply |
DC IN |
7~28V/ 2A |
DC OUT |
Output Voltage:DC IN or battery voltage Output Current:1A |
|

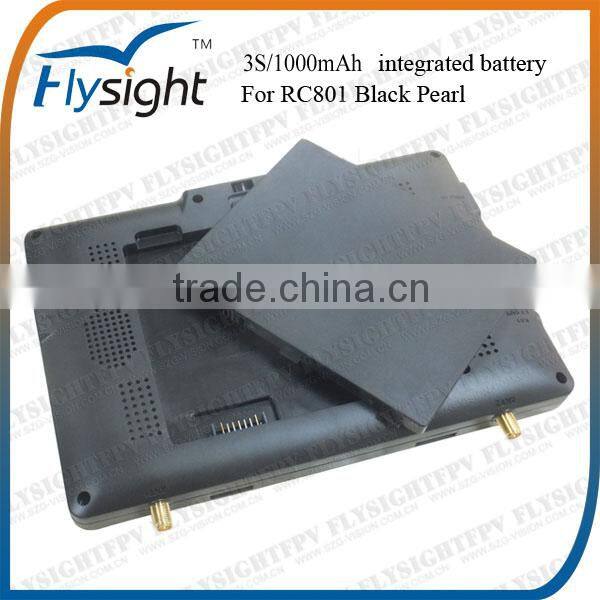

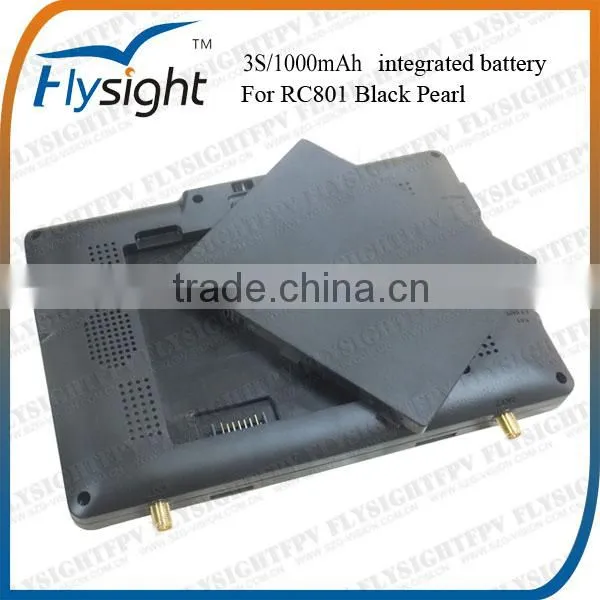

Battery |
11.1V/1000mAh(3 series LiPo cells) |
|
Consumption |
12V input:7.8W |
|
Dimensions |
Main Body |
183X126X19.5mm(not include sun shadow) |
Battery |
105X87.5X6.7 mm(not include prominent part) |
|
Weight |
Main body |
350 g |
4 brands 32channels
Product Show
Advantages
1. Original products for our own brand Flysight, quality is warranty.
2. We aim to provide customers high quality products and services.
3. CE certification provided for our products model: TX58025, RC306, RC305 etc.
4. OEM orders are welcome!
Accessories
Charger Optional

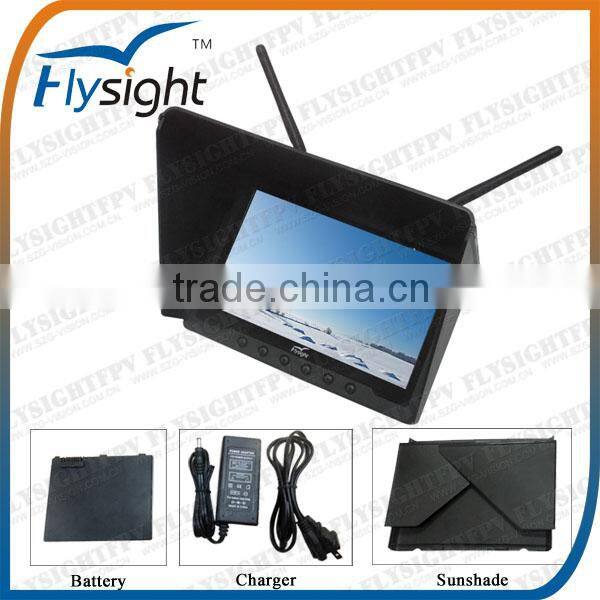

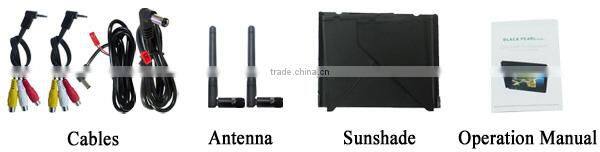

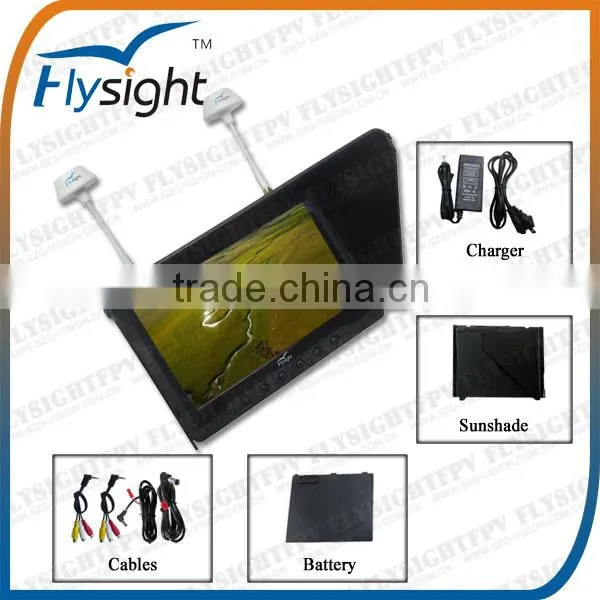

Packing Details
1*Main Body
1*Sun Shadow
2*SMA Antennas
2*AV Cable
1*DC Input Cable
1*DC output Cable
1*Battery

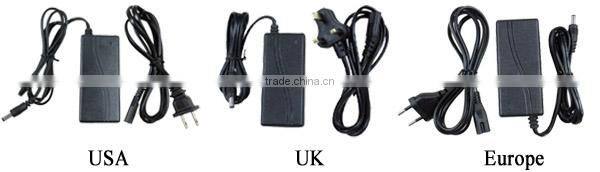

1*Charger
